Revez Wall Mounted Data Cabinet 540mm Width (6U-15U)

6U450
List price: 139.00
112.00
(137.76 inc VAT) You save: €27.00 (19%)
RW-6U450-FP
In stock
+

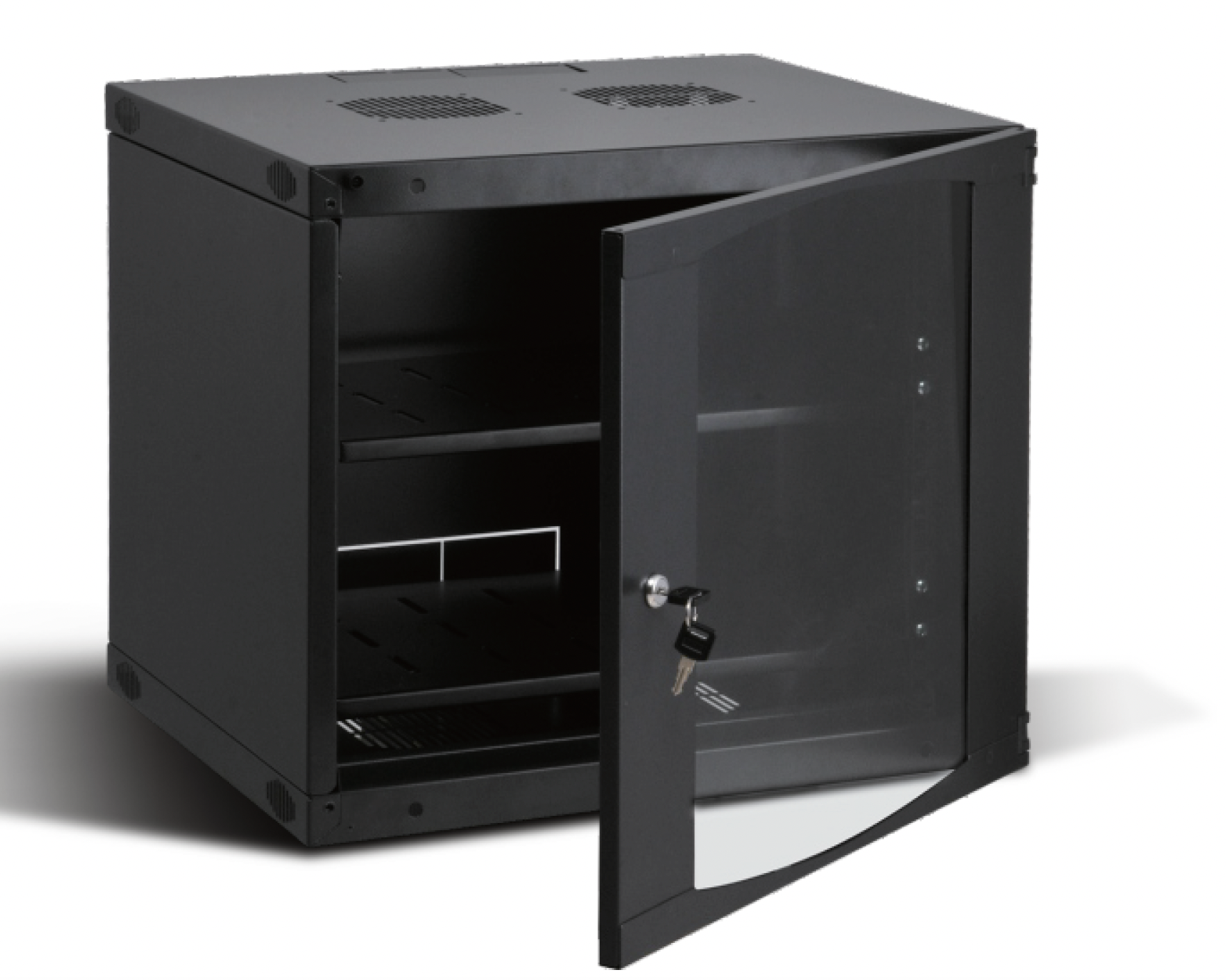

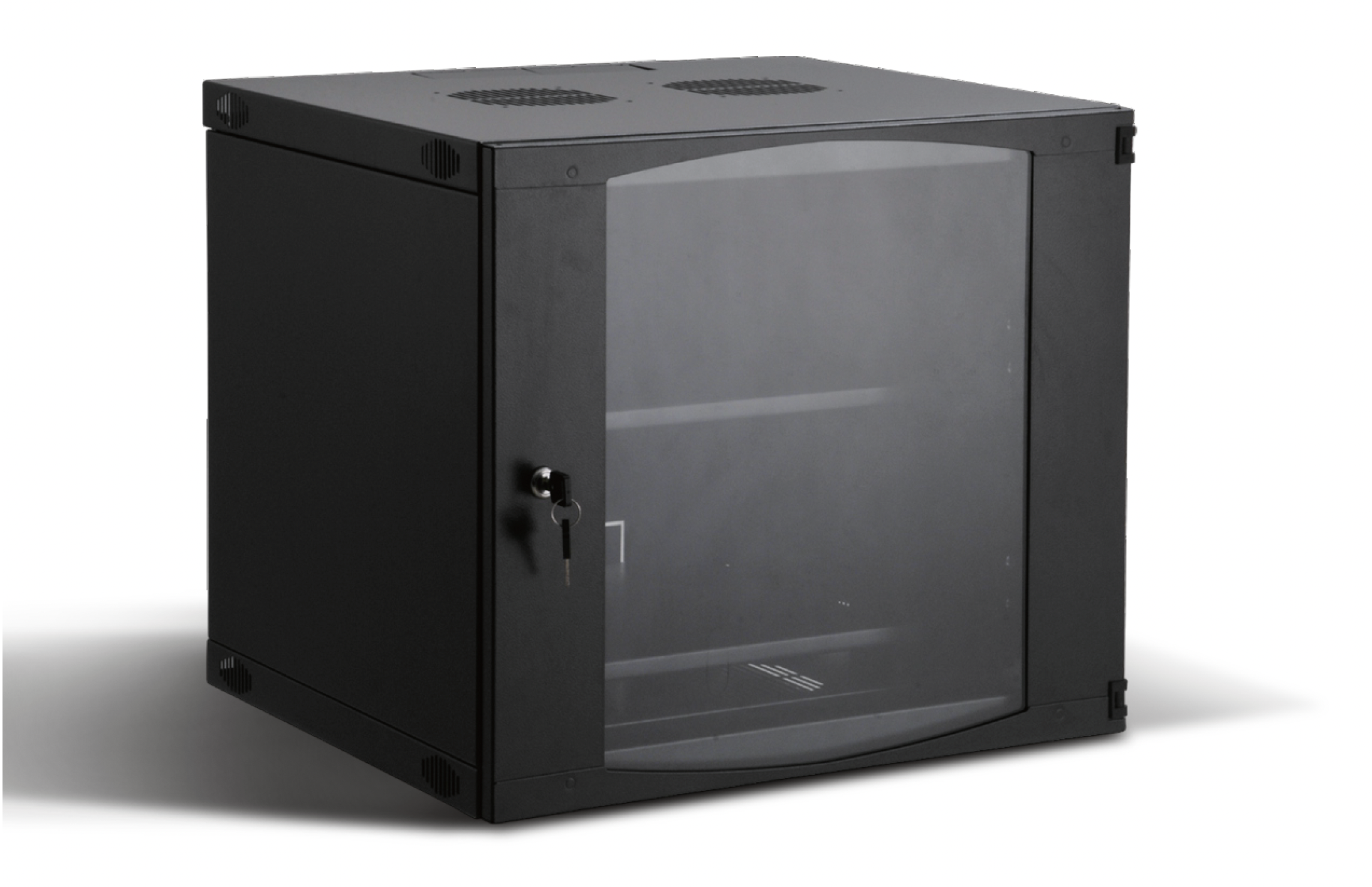

Revez Wall Mounted Data Cabinet 540mm Width

Revez range of wall mounted data cabinets, available in all popular sizes from 6U to 15U. This 540mm width range comes with a loading capacity of 30KG. Constructed from SPCC Cold Rolled Steel with a lovely powder painted finish, these units are built to last. The door is swappable from left to right to fit all applications.

Features:

• Fan slot on the top and bottom (not included)
• Removable sides
• Lockable tempered glass front door
• Lockable quick release side panels
• Cable entry cut out in top and base
• Supplied flat packed, easy assembly within minutes
• Flippable door for easy access from either side
• Adjustable 19” mounting profiles
• Shelves not included


Model

U

Width(mm)

Depth(mm)

Height(mm)

RW-6U450-FP

6

540

450

327

RW-6U600-FP

6

540

600

327

RW-9U450-FP

9

540

450

460

RW-9U600-FP

9

540

600

460

RW-12U450-FP

12

540

450

593

RW-12U600-FP

12

540

600

593

RW-15U450-FP

15

540

450

725

RW-15U600-FP

15

540

600

725



Datasheet in attachments
Cabinet Size:
6U450

Datasheet (540-wall_mounted_data_cabinet.pdf, 426 Kb) [Download]
