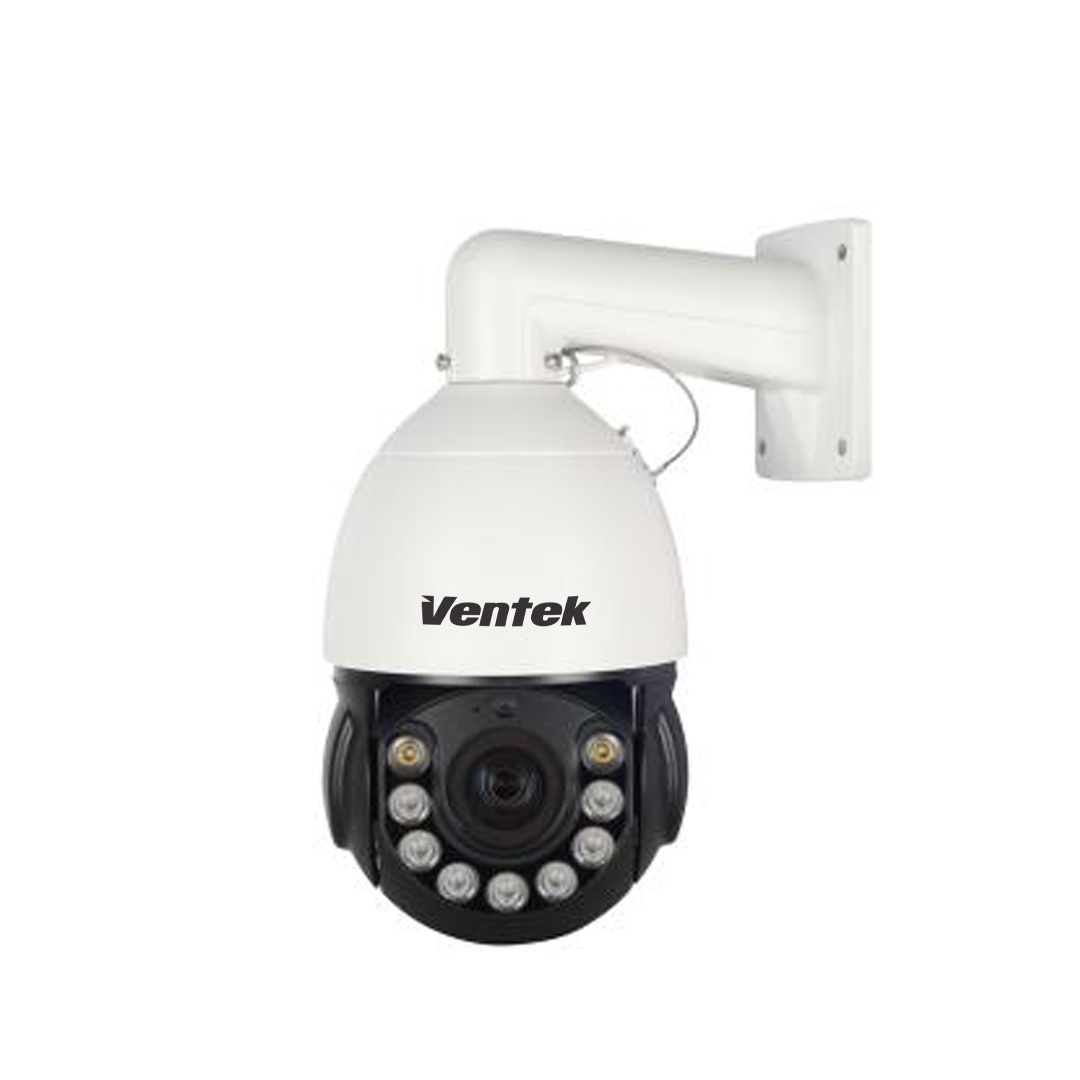

Ventek 5MP IP PTZ Camera, PoE, 18x Optical Zoom, AI Auto Tracking, 120m IR, Full Colour, 2 Way Audio
| Camera |
| Image Sensor |
1/2.8" Progressive Scan CMOS Sensor |
| Horizontal Resolution |
5MP |
| Compression |
H.264/H.265/H.264+/H.265+ |
| Minimun Illumination |
Color: 0.008 Lux @ (F1.8, AGC ON),0 Lux with white light |
| S/N Ratio |
60db |
| PTZ |
| Horizontal Rotation Speed |
80°/S |
| Horizontal Rotation Range |
0°~360° |
| Tilt Rotation Speed |
40°/S |
| Tilt Rotation Range |
0°~93° |
| Preset Points |
220 |
| Guard Tours |
8 groups |
| Guard Points |
Max.20 points |
| Lens |
| Focus Length |
5.35-96.3mm F1.8-F3.9 |
| Focus Control |
18X Optical Zoom |
| Night Vision |
| Infrared LED |
￠35x7PCS + 2PCS warm light LED |
| IR Range |
120m（warm light: 60m） |
| Day-night mode |
AUTO |
| Network |
| Network protocol |
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP |
| ONVIF |
Support (PROFILE S,PROFILE T） |
| Network interface |
Built-in RJ45 network interface,support 10M/100M IP DATA |
| Main Stream1 |
5MP(2592*1944)@20fps |
| Main Stream2 |
4MP(2560*1440)@25fps |
| Main Stream3 |
N/A |
| Main Stream4 |
N/A |
| Main Stream5 |
N/A |
| Main Stream6 |
N/A |
| Sub Stream1 |
D1(720*480)@20fps |
| Sub Stream2 |
CIF(352*288)@20fps |
| Sub Stream3 |
N/A |
| Sub Stream4 |
N/A |
| AI Function |
| Intelligent Analysis |
3D Human Tracking(Effective Range:5~50M ,Speed: 3~12KM/h) / Motion detection based on human detection/ Intrusion Detection based on human detection |
| Camera Features |
| Day/Night |
Color/ B&W (IR-CUT )/Intelligent |
| Image Config |
Saturation/Brightness/Contrast/Sharpness, Mirror, 3D NR, White Balance, Anti Flicker, Video Tampering, Distortion |
| Full Color |
Support |
| Corridor Pattern |
N/A |
| Defog Mode |
Support |
| ROI |
Support |
| BLC |
Support |
| WDR |
120dB(Not support in 5MP resolution) |
| Motion Detection |
Support(support enable the detection based on human movement only) |
| Privacy Masking |
3 Rectangular Zone |
| Recording Mode |
NVR/CMS/Web |
| Language |
Chinese Simplified, Chinese Traditional, English, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian, Arabic, Vietnamese, Czech |
| Interface |
| Audio |
Built-in Mic & Speaker |
| Audio Encode |
G711A，C711U |
| Alarm |
N/A |
| SD Card Slot |
Support |
| POE |
Optional |
| General |
| Weatherproof |
IP66 |
| Operating Temperature |
Light on: -20~45℃
Light off:-20~55℃ |
| Operating Humidity |
≤90% Non Condensing |
| Power |
DC12/2.1A(Device power consumption)
DC12/3A(Power supply) |
| Lightning Protection |
Transient voltage 6000V |
| Dimension |
device:173*173*320(mm)
package:250*250*410(mm) |
| Weight |
device:2.00Kgs
package:3.4Kgs |
