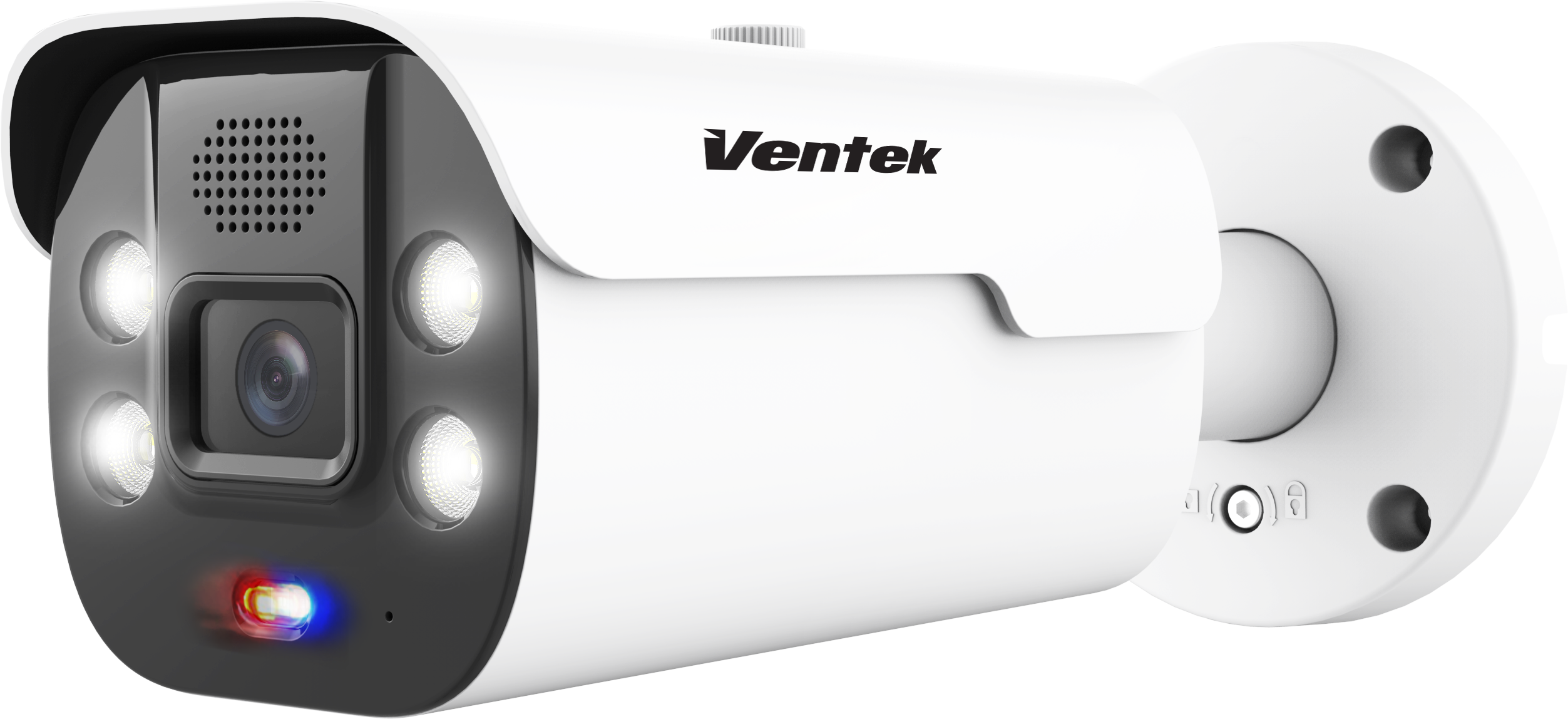

Ventek 5MP IP Hybrid Bullet Camera, 2.8mm Lens, 2 Way Audio, Active Deterrence, 1/2.8" Sony sensor, MicroSD Slot
| Camera |
| Image Sensor |
1/2.8" SONY Starvis Back-illuminated CMOS sensor |
| Resolution |
5MP |
| Effective Pixels |
2616(H)*1964(V) |
| Compression |
H.264/H.264+/H.265/H.265+ |
| Audio Compression |
G711A/U,AAC,MP2L2 |
| TV System |
PAL/NTSC |
| Electronic Shutter Time |
Auto: 1/3-1/100000Sec |
| Minimun Illumination |
Color: 0.003 Lux@(F1.6, AGC ON), 0 Lux with white light, B/W: 0 Lux with IR |
| S/N Ratio |
60dB |
| Scanning System |
Progressive |
| Video Output |
Network |
| Reset Button |
Support |
| Lens |
| Focal Length & FOV |
2.8 mm, horizontal FOV 96°, vertical FOV 72°, diagonal FOV 124°
4 mm, horizontal FOV 80°, vertical FOV 56°, diagonal FOV 107° |
| Lens Type |
Fixed focal lens, 2.8 and 4 mm optional |
| Focus Control |
Fixed |
| Aperture |
F1.6 |
| Pixels |
5MP |
| Night Vision |
| Supplement Light |
IR:4PCS, Warm light:4PCS |
| Supplement Light Distance |
IR:50m, Warm light:40m |
| Supplement Light Status |
Auto Control |
| Supplement Light Power On |
Smart, Manual & Timed mode |
| Network |
| Ethernet |
RJ-45 (10/100Base-T) |
| Wireless |
N/A |
| Protocol |
TCP/IP, IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTMP, RTCP, PPPoE, NTP, SMTP, UDP, SNMP, Qos, 802.1x |
| ONVIF |
Support ONVIF 24.12(Profile S/T/G/M) |
| P2P |
YES |
| POE |
Internal, Support IEEE 802.3af |
| Video Delay |
300ms (Within the Lan) |
| Main Stream 1 |
2592*1944@30fps |
| Main Stream 2 |
2560*1440@30fps |
| Main Stream 3 |
1920*1080@30fps
1280*720@30fps |
| Sub Stream 1 |
1280*720@30fps |
| Sub Stream 2 |
720*480@30fps |
| Sub Stream 3 |
N/A |
| Tri Stream |
N/A |
| IE Brower |
Microsoft Edge, IE11, Google Chrome, Firefox, Mac Safari |
| Smart Phone |
iPhone, Android |
| AI Function |
| Intelligent Analysis |
Intrusion Detection/Line Crossing Detection/Enter Area Detection/Leave Area Detection/Line Crossing Count(based on human and vehicle detection), Loitering Detection/People Gathering Detection(based on human detection), Motion Detection(supports the detection based on human and vehicle movement), Illegal Parking(based on vehicle shape), Heat Map |
| Camera Features |
| Day/Night |
Color/ B&W (IR-CUT ) |
| Image Config |
Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, Anti Flicker, Video Tampering, HLC, Scene Change Detection |
| Full Color |
Support |
| Corridor Pattern |
Support |
| Defog Mode |
N/A |
| ROI |
Support |
| BLC |
Support |
| WDR |
120dB |
| Motion Detection |
Support(support enable the detection based on human and Vehicle movement) |
| Privacy Masking |
3 Rectangular Zone |
| Recording Mode |
NVR/CMS/Web |
| Language |
Chinese Simplified, Chinese Traditional, English, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian, Arabic, Vietnamese, Thai, Hungarian, Czech |
| Interface |
| Audio |
Default: Built in Mic+Built in Speaker |
| Alarm |
Default: Alarm I/O |
| SD Card Slot |
External, Support Max 512GB |
| RS485 |
N/A |
| General |
| Housing |
Metal,IP67 |
| Anti-cut Bracket |
NO |
| IR Cut Filter |
YES |
| Operation Temperature |
-30℃ ~ +60℃ RH95% Max |
| Storage Temperature |
-20℃ ~ +60℃ RH95% Max |
| Power Source |
DC12V±10%, 900mA |
| Dimension |
95 x 88 x 268 mm |
| Weight |
1156g |
