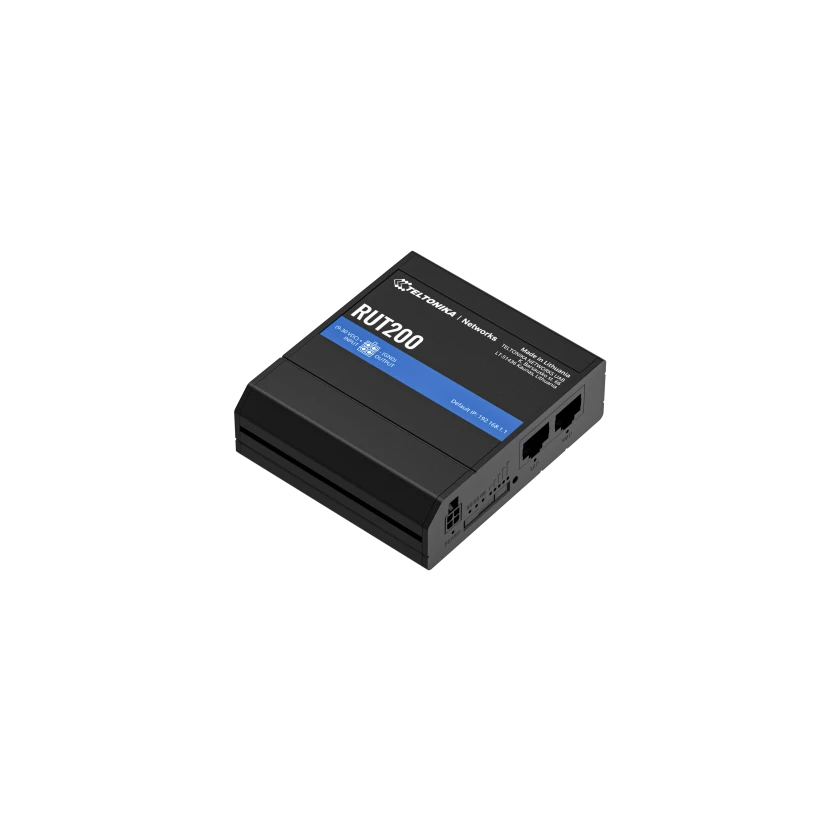

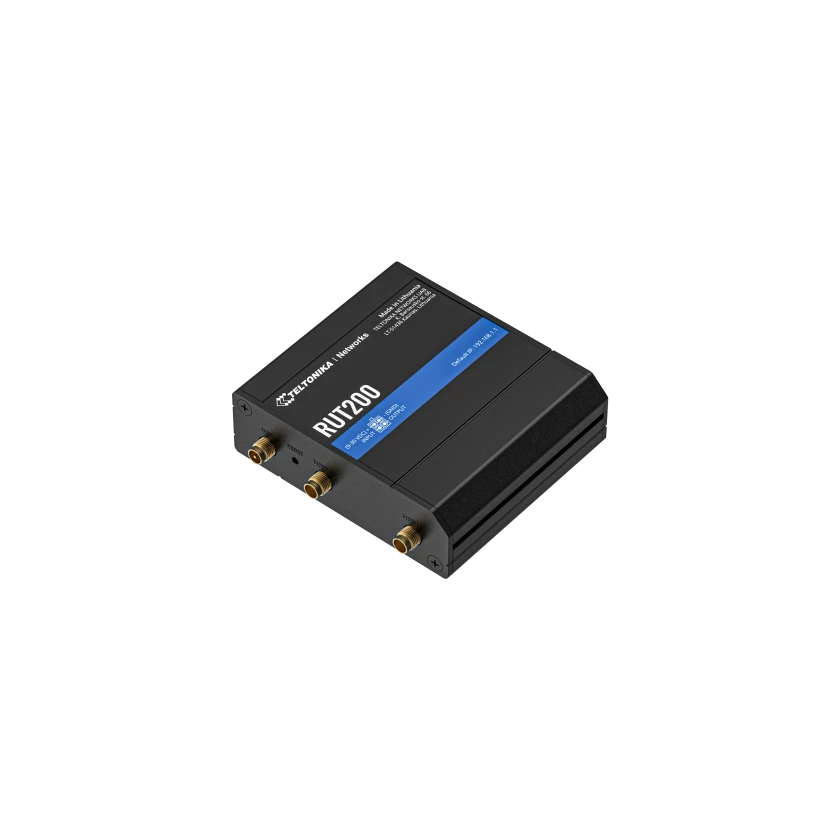

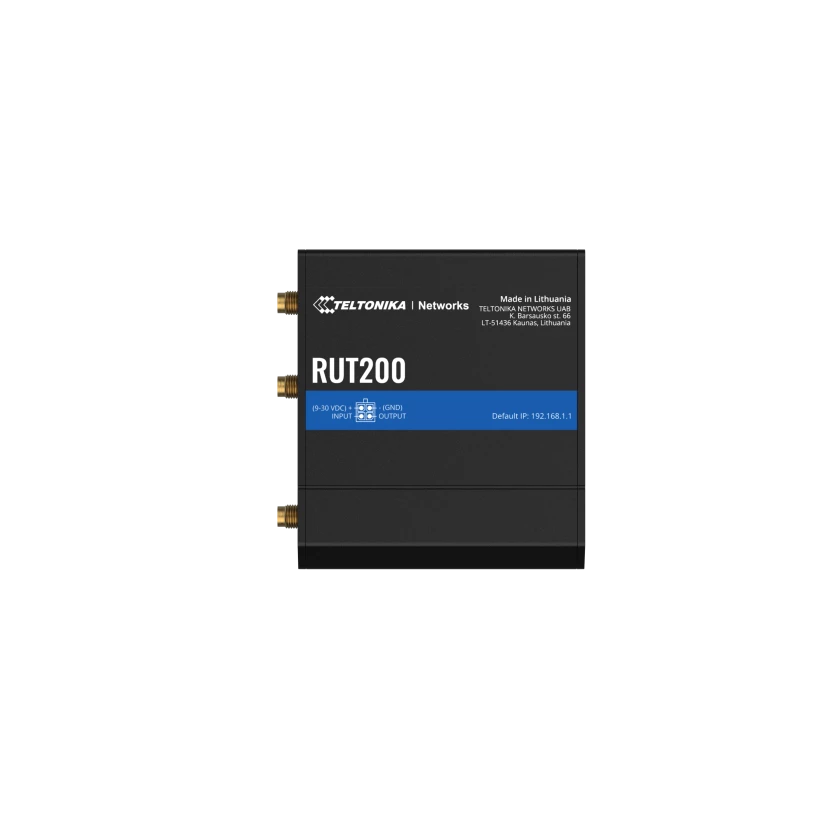

Teltonika RUT200 Industrial 4G/LTE WiFi Router
RUT200 is a compact industrial cellular router that provides reliable, mission-critical connectivity in rigorous conditions common in industries like automation, transportation, and manufacturing. This model is equipped with 4G LTE, Wi-Fi, and two Ethernet ports, making it ideal for quickly setting up primary and backup connectivity with remote management capabilities.
Features:
CONNECTIVITY: 4G/LTE (Cat 4), 3G, 2G
WI-FI: Wireless Access Point with Hotspot functionality
WAN FAILOVER: Automatic switching to available Backup connection
RMS: For remote management, access & VPN services
Specifications:
MOBILE
- Mobile module
4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
- Status
Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
- SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
- USSD
Supports sending and reading Unstructured Supplementary Service Data messages
- Black/White list
Operator black/white list
- Multiple PDN
Possibility to use different PDNs for multiple network access and services
- Band management
Band lock, Used band status display
- APN
Auto APN
- Bridge
Direct connection (bridge) between mobile ISP and device on LAN
- Passthrough
Router assigns its mobile WAN IP address to another device on LAN
WIRELESS
- Wireless mode
IEEE 802.11b/g/n, Access Point (AP), Station (STA)
- WiFi security
WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
- SSID/ESSID
SSID stealth mode and access control based on MAC address
- WiFi users
Up to 50 simultaneous connections
- Wireless Hotspot
Captive portal (Hotspot), internal/external Radius server, built in customizable landing page
ETHERNET
- WAN
1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
- LAN
1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
NETWORK
- Routing
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP)
- Network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
- VoIP passthrough support
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Connection monitoring
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
- Firewall
Port forward, traffic rules, custom rules
- DHCP
Static and dynamic IP allocation, DHCP Relay, Relayd
- QoS / Smart Queue Management (SQM)
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
- DDNS
Supported >25 service providers, others can be configured manually
- Network backup
WiFi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
- Load balancing
Balance Internet traffic over multiple WAN connections
- Hotspot
Internal/external Radius server, captive portal, built in customizable landing page
- SSHFS
Possibility to mount remote file system via SSH protocol
SECURITY
- Authentication
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
- Firewall
Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
- Attack prevention
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLAN
Port and tag based VLAN separation
- Mobile quota control
Custom data limits for SIM card
- WEB filter
Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
- Access control
Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
- OpenVPN
Multiple clients and a server can run simultaneously, 27 encryption methods
- OpenVPN Encryption
DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,
BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
- IPsec
IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
- GRE
GRE tunnel, GRE tunnel over IPsec support
- PPTP, L2TP
Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
- Stunnel
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
- DMVPN
Method of building scalable IPsec VPNs
- SSTP
SSTP client instance support
- ZeroTier
ZeroTier VPN client support
- WireGuard
WireGuard VPN client and server support
- Tinc
Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
MODBUS TCP SLAVE
- ID range
Respond to one ID in range [1;255] or any
- Allow Remote Access
Allow access through WAN
- Custom registers
MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality
MODBUS TCP MASTER
- Supported functions
01, 02, 03, 04, 05, 06, 15, 16
- Supported data formats
8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)
MODBUS DATA TO SERVER
- Protocol
HTTP(S), MQTT, Azure MQTT
MQTT GATEWAY
- MQTT Gateway
Allows sending commands and receiving data from MODBUS Master through MQTT broker
DNP3
- Supported modes
TCP Master, DNP3 Outstation
MONITORING & MANAGEMENT
- WEB UI
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
- FOTA
Firmware update from server, automatic notification
- SSH
SSH (v1, v2)
- SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET
- Call
Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, WiFi on/off
- TR-069
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
- MQTT
MQTT Broker, MQTT publisher
- SNMP
SNMP (v1, v2, v3), SNMP Trap
- JSON-RPC
Management API over HTTP/HTTPS
- MODBUS
MODBUS TCP status/control
- RMS
Teltonika Remote Management System (RMS)
IOT PLATFORMS
- Cloud of Things
Allows monitoring of: Device data, Mobile data, Network info, Availability
- ThingWorx
Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
- Cumulocity
Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
- Azure IoT Hub
Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type
SYSTEM CHARACTERISTICS
- CPU
Mediatek MIPS 24Kc 580 MHz
- RAM
128 MB, DDR2
- FLASH storage
16 MB, SPI Flash
FIRMWARE / CONFIGURATION
- WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
- FOTA
Update FW
- RMS
Update FW/configuration for multiple devices at once
- Keep settings
Update FW without losing current configuration
FIRMWARE CUSTOMIZATION
- Operating system
RutOS (OpenWrt based Linux OS)
- Supported languages
Busybox shell, Lua, C, C++
- Development tools
SDK package with build environment provided
INPUT / OUTPUT
- Input
1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
- Output
1 x Digital Output, Open collector output, max output 30 V, 300 mA
- Events
Email, RMS, SMS
- I/O juggler
Allows to set certain I/O conditions to initiate event
POWER
- Connector
4-pin industrial DC power socket
- Input voltage range
9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
- PoE (passive)
Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 50 VDC
- Power consumption
< 6.5 W Max

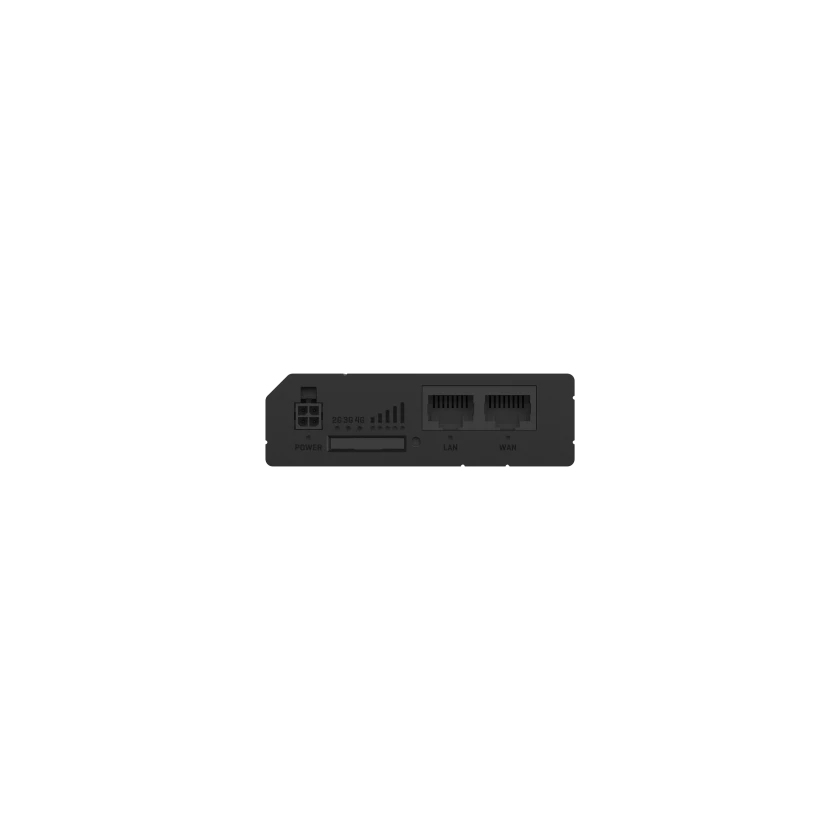

PHYSICAL INTERFACES
- Ethernet
2 x RJ45 ports, 10/100 Mbps
- I/O’s
1 x Digital Input, 1 x Digital Output on 4-pin power connector
- Status LEDs
3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
- SIM
1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder
- Power
1 x 4-pin power connector

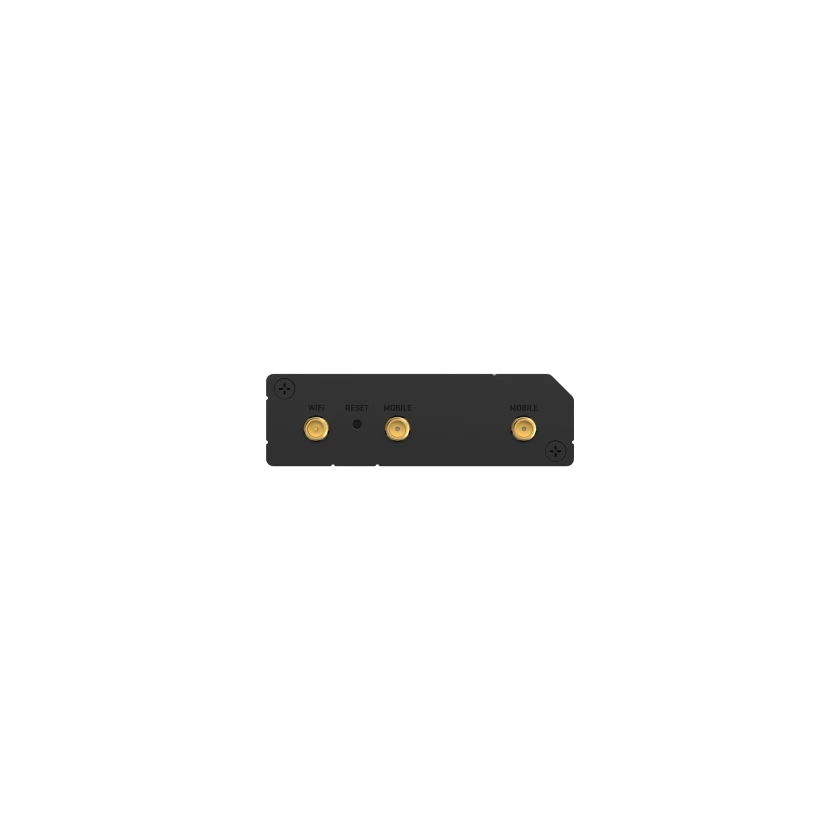

- Antennas
2 x SMA for LTE, 1 x RP-SMA for WiFi antenna connectors
- Reset
Reboot/User default reset/Factory reset button
PHYSICAL SPECIFICATION
- Casing material
Aluminium housing, plastic panels
- Dimensions (W x H x D)
83 x 25 x 74 mm
- Weight
125 g
- Mounting options
Bottom and sideways DIN rail mounting slots
OPERATING ENVIRONMENT
- Operating temperature
-40 °C to 75 °C
- Operating humidity
10% to 90% non-condensing
- Ingress Protection Rating
IP30
REGULATORY & TYPE APPROVALS
- Regulatory
CB
SAFETY
- Standards
IEC 62368-1:2018 (CB Scheme)
