Save 44%

Sky Wideband LNB

List price: 46.75
26.00
(31.98 inc VAT) You save: €20.75 (44%)
VW2L
Out-of-stock

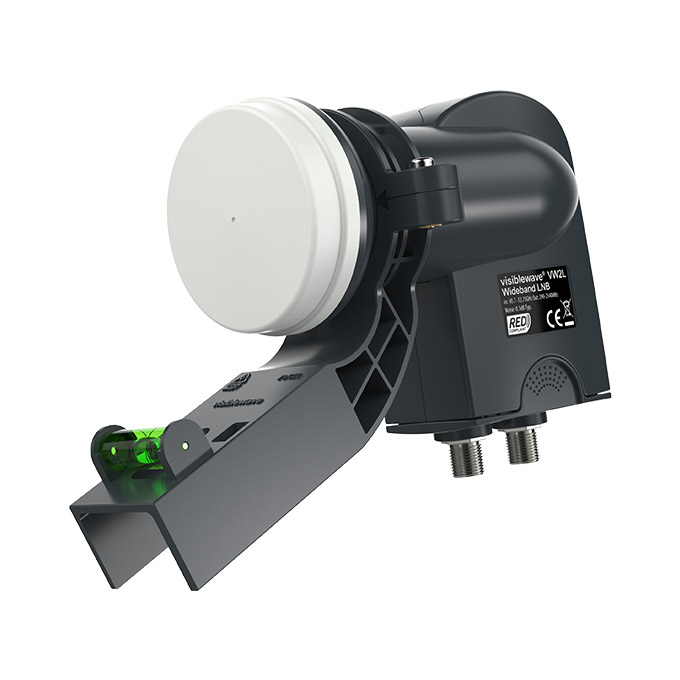

VW2L Wideband LNB – 2 Output

  • Finished in grey
  • Supplied with a Sky compatible bracket
  • Built-in spirit level
Technical Specification

Input Frequency

10.7 ~ 12.75 GHz

Output frequency

Vertical: 290 ~ 2340 MHz

Horizontal: 290 ~ 2340 MHz

L.O. frequencies

10.41 GHz

L.O. Stability

+/-0.5 MHz (max) @ Room Temp.

+/-1 MHz (max) @ -40°C ~ +60°C

L.O. Phase Noise

-50dBc/Hz @ 1kHz (max.)

-75dBc/Hz @ 10kHz (max.)

-100dBc/Hz @ 100kHz (max.)

Noise Figure

0.1 dB (typ.)

Conversion Gain

50 dB (min) / 60 dB (max)

Gain Flatness @ 26MHz

+/-0.5dB (typ.)

Gain Variation

7dB (max.) @ full band

Cross Polar Isolation

25 dB (typ.)

Image Rejection

40 dB (min)

Current Consumption

0.85W (max.) (70mA @ +12V DC)

Power Voltage

9 – 19V DC

Connector Type

75 female F-connector

Output Spurious

<-60dBm

Operating Temp.

-40’C ~ +60’C

RED Compliance

EN 303 372-1
