Save 35%

Ruijie WiFi 6 Wall Plate Access Point Dual Band 1.775Gbps 5GE Ports

List price: 300.00
194.30
(238.99 inc VAT) You save: €105.70 (35%)
RG-AP180
In stock
+

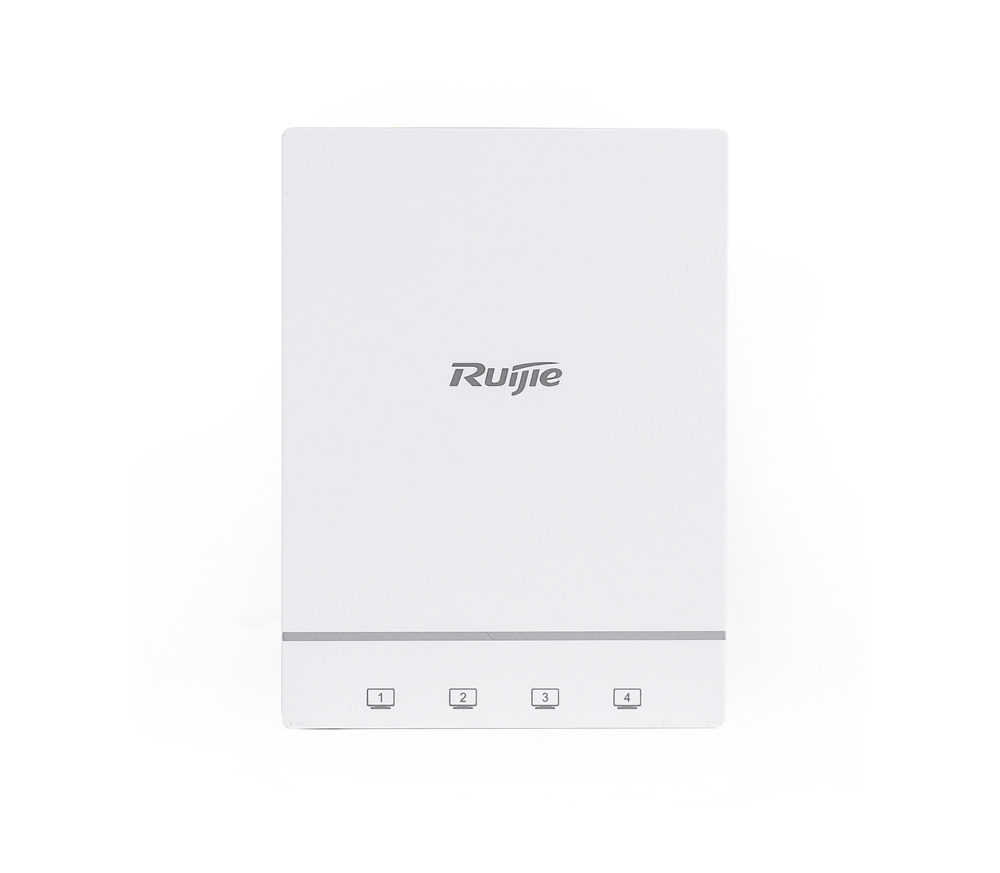

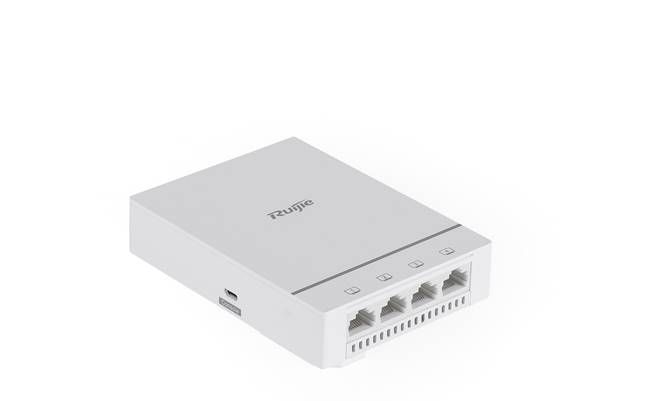

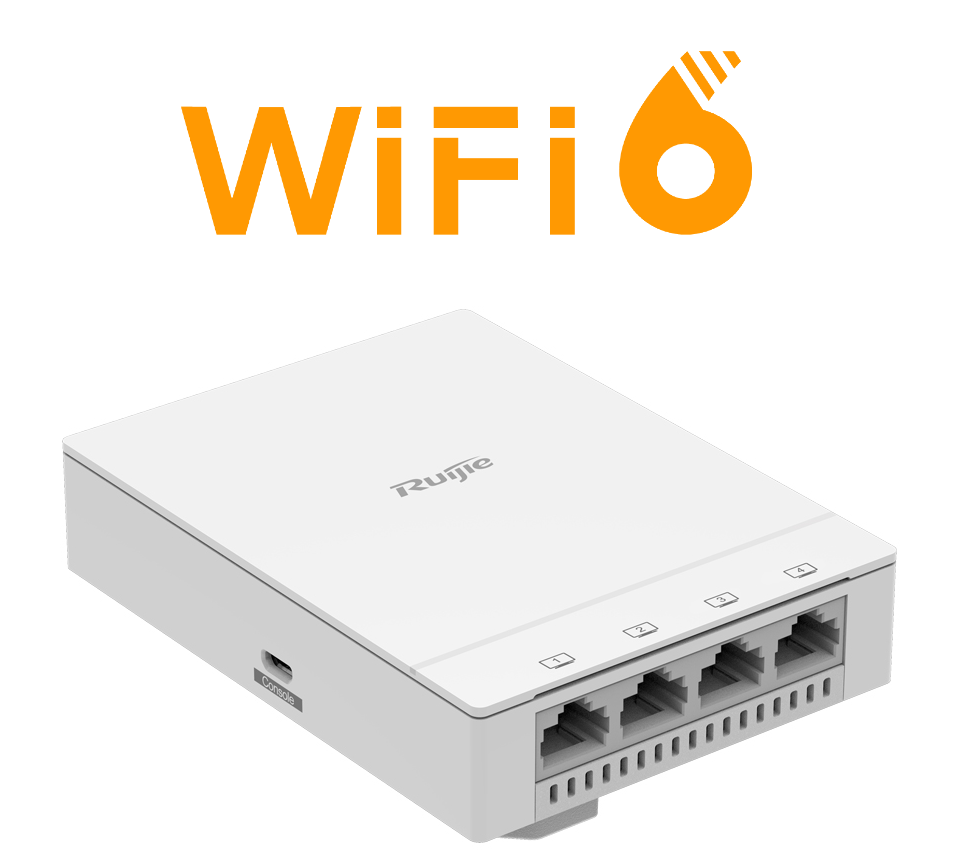

Ruijie Wall Plate Access Point WiFi 6 Dual Band 1.775Gbps 5GE Ports

Ruijie RG-AP180 Wall AP Series is a next-generation Wi-Fi 6 (802.11ax) with built-in IoT module wall plate wireless access point designed for hotels, offices and dormitories with Smart IoT integration demands. The RG-AP180 Series has design for universal socket standard with integrated multiple Gigabit Ethernet LAN ports for extended connectivty for IPTV or Office Equipment application purpose. Featuring an exquisite design and easy deployment, the AP can be installed on the junction box without damaging the wall finishes, which offers a better solution for wireless network deployment for scenarios like the hotels.

Ruijie RG-AP180 Wall AP can be centrally managed by Enterprise-grade Ruijie Cloud Service at Lifetime FREE, allowing fast provisioning, flexible authentication and stable wireless even at extreme envrionement.

The dual-radio dual-band RG-AP180 Series supports concurrent 802.11a/n/ac/ax and 802.11b/g/n/ax. Both 2.4G and 5G support 2 spatial streams concurrently. Equipped with the advanced 802.11ax RF chip, the AP supports MU-MIMO which improves the user experience for multi-user access. The RG-AP180 Series offers 4 100/1000Mbps RJ45 downlink ports, providing optimal wireless network coverage and additional wired network interfaces. The RG-AP180 also integrated with IoT module supporting Bluetooth 5.0 and Zigbee protocol for future Smart Living integration.

Upon the uprising challenges of management efficiency and wireless security, all Ruijie enterprise APs support hybrid management mode. Either deployed as standalone AP (Fat mode) or managed AP (Fit mode), the AP will detect the operation mode automatically without extra effort on firmware upgrade. For additional security and operation, we recommend the enterprise customers to choose either one of the below wireless controller options depending on the functionality and capacity:

Features:

  • Public Cloud: Ruijie Cloud – Ruijie Public Cloud service (powered by RG-MACC) is targeted for the SME segment with integrated captive portal, authentication (such as PPSK for employees, Facebook, voucher, account, etc.), and reporting features. Together with Ruijie Cloud Mobile App (free download), SME customers can provision and manage their networks at fingertips.
  • Hybrid Cloud: RG-WS6000 Series Wireless Controller (on-premises) Plus Cloud Management (Optional) – targeted for enterprise office and campus with single or multiple sites and high-density AP deployment. The controller appliances are installed at the customer’s site with fully integrated wireless management and authentication feature, supporting up to 5000 APs per cluster. Optionally, the cloud management platform allows for value-added features like centralized device configuration and monitoring, AI radio (RF) optimization, reporting, etc.
  • Private Cloud: RG-MACC Software Controller – targeted for ISP/MSP, government, or multi-national corporation (MNC) with diverse customer sites and demand on integration of their billing, portal and security systems. The RG-MACC supports unified device management, not only for wireless access points, but also switches and gateway devices.

Key Highlights:

  • The 1st Wi-Fi 6 Enterprise Wall Plate Access Point with Wi-Fi 6 Alliance Certification
  • Built-in IoT Module (Built-in Bluetooth 5.0 and Zigbee) for future Smart of Things integration
  • Hidden Status LED Design – never disturbing your customer comfort
  • Universal wall plate design –mount kit option available for US/EU standard socket
  • Guarantee High Definition (HD) IPTV Application – upto 4 HD TV can be connected via the Gigabit LAN ports
  • OFDMA, MU-MIMO and BSS Technology for minimal wireless signal interference
  • AI Wireless Optimization: one-click optimization powered by Ruijie Cloud and WIS technology
  • Hybrid Management: support standalone AP to over thousands of APs with deployment options of appliances, private cloud or public cloud service
  • Mobility Management: Free mobile app available for RG-MACC-Base private cloud or Ruijie Public Cloud customers



Specification:

Model

RG-AP180

Hardware specifications

Radio

Dual-radio dual-band:

Radio 1: 2.4G 11ax: 2×2 MIMO

Radio 2: 5G 11ax: 2x2 MIMO

Protocol

Support concurrent 802.11a/n/ac/ax and 802.11b/g/n/ax

Operating Bands

802.11b/g/n/ax :2.4G ~ 2.483GHz

802.11a/n/ac/ax : 5.150~5.350GHz,5.47~5.725GHz,5.725~5.850GHz (vary depending on different countries)

Spatial Streams

4 spatial streams, 2x2 MIMO

Max Throughput

Maximum throughput of 2.4G: 574Mbps

Maximum throughput of 5G: 1.2Gbps

Maximum throughput per AP: 1.775Gbps

Modulation

11b:DSS:[email protected]/11Mbps,DQPSK@2Mbps,DBPSK@1Mbps

11a/g:OFDM:64QAM@48/54Mbps,16QAM@24Mbps,QPSK@12/18Mbps,BPSK@6/9Mbps

11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM

11ac:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM

11ax: MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM

Transmit Power

≤100mw(20dBm, radio transmit power only)

Dimensions

116mm * 86mm *40mm

Weight

0.37kg

Service Ports

Front:
4 10/100/1000Mbps Ethernet ports
Rear:
1 10/100/1000Mbps uplink port

Power Supply

Support PoE

Support local power supply (DC Power adapters should be purchased from third-party vendors separately if needed)

11ax Feature

Support 802.11ax

Support MU-MIMO

Management Port

1 Micro USB port (hidden)

Reset

Support (hidden)

LED indicator

Support (hidden)

The indicator can be switched off

Built-in Antenna

Built-in low-radiation omnidirectional antenna

IoT Protocol

Support Bluetooth5.0(BLE), Zigbee

Power Consumption

<10W

IP Rating

IP41

Anti-theft

Standard: ordinary screws

Color of AP Enclosure

White

Wi-Fi Alliance

· Wi-Fi CERTIFIED™ a, b, g, n, ac

· Wi-Fi CERTIFIED 6™

· WPA3™-Enterprise, Personal

· Wi-Fi Enhanced Open™

· Wi-Fi Agile Multiband™

· WMM®

Relevant Standard

Safety Standard

EN/IEC 62368-1

EMC Standard

EN301 489, EN55032, EN55035

Health Standard

EN 62311

Radio Standard

EN300 328, EN301 893

Environment

Operating temperature:0°C~45°C

Storage temperature:-40°C~70°C

Operating humidity:5%~95%(non-condensing)

Storage humidity:5%~95%(non-condensing)

Installation Mode

Compatible with UK/US/EU

Junction box

*Universal Mount Kit need to purchase separately for US/EU junction box

Software Specifications

WLAN

Maximum clients per AP

1024 (Recommended Clients: 32)

BSSID capacity

16

SSID hiding

Support

Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID

Support

Remote Intelligent Perception Technology (RIPT)

Support

Intelligent load balancing based on the number of users or traffic

Support

STA control

SSID/radio-based

Bandwidth control

STA/SSID/AP-based speed control

Security

PSK, Web, and 802.1x authentication

Support

Data encryption

WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits)

QR code authentication

Support (integration with RG-WS series wireless controller)

SMS authentication

Support (integration with RG-WS series wireless controller)

PEAP authentication

Support (integration with RG-WS series wireless controller)

Data frame filtering

Whitelist, static/dynamic blacklist

User isolation

Support

Rogue AP detection and countermeasure

Support

Dynamic ACL assignment

Support

RADIUS

Support

CPU Protection Policy (CPP)

Support

Network Foundation Protection Policy (NFPP)

Support

Wireless Intrusion Detection System (WIDS)

Support

Routing

IPv4 address

Static IP address or DHCP

IPv6

Support

Multicast – IGMP Snooping

Support

Management and Maintenance

Supported wireless LAN controllers

Ruijie WS Series Wireless Controller

Ruijie MACC-Base Software Controller

Ruijie Cloud (Public Cloud)

Management protocol

Telnet, SSH, TFTP, Web

Wireless Intelligent AI Optimization Service (WIS)

Support

SNMP

SNMPV1,V2c,V3

Syslog / Debug

Support

FAT/FIT/MACC mode switching

Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management

Installation Guide (Ruijie_RG-AP180_Series_Access_Points_Hardware_Installation_and_Reference_Guide.pdf, 787 Kb) [Download]
