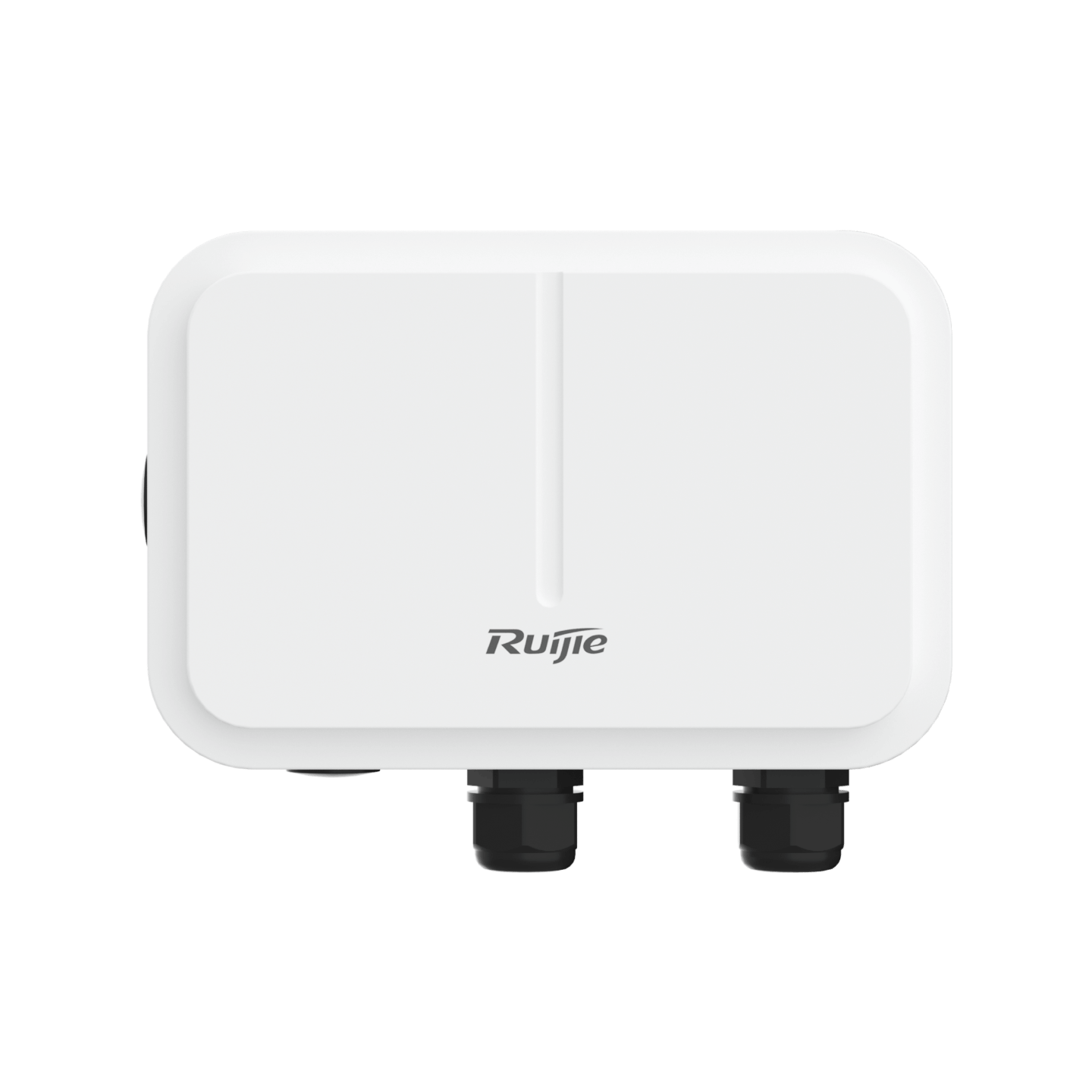

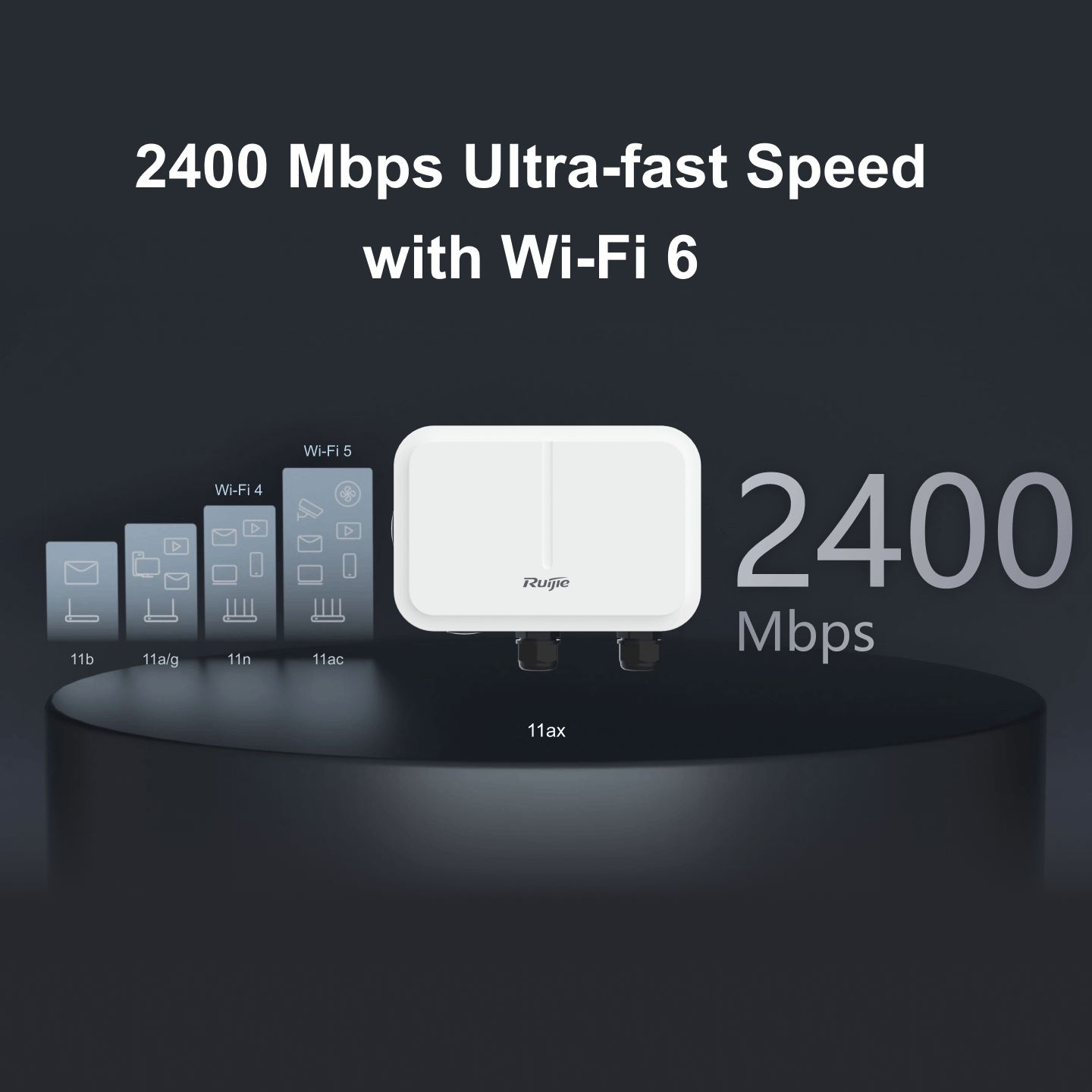

Ruijie RG-AP680(CD) WiFi 6 Dual Radio 2400Mbps Outdoor High Power Wireless AP, 1Gb Optical Port

Unit dimensions (W x D x H)

251 mm x 168 mm x 64 mm (9.88 in x 6.61 in x 2.52 in)

Shipping dimensions (W x D x H)

405 mm x 232 mm x 325 mm (15.94 in x 9.13 in x 12.80 in)

Unit weight

Main unit: 1.5 kg (3.31 lbs)

Mounting bracket: 0.2 kg (0.44 lbs)

Shipment weight

2.92 kg (6.44 lbs)

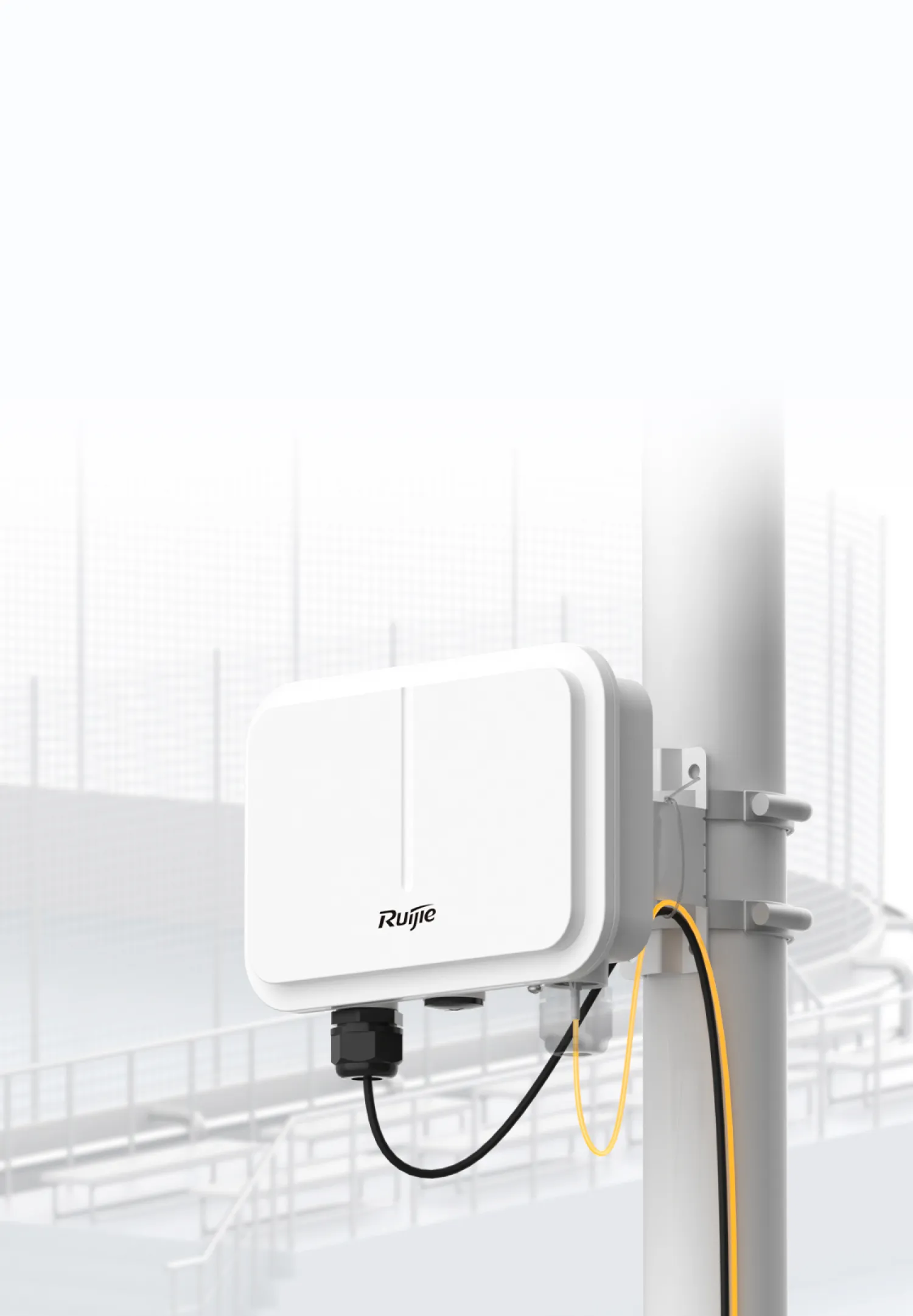

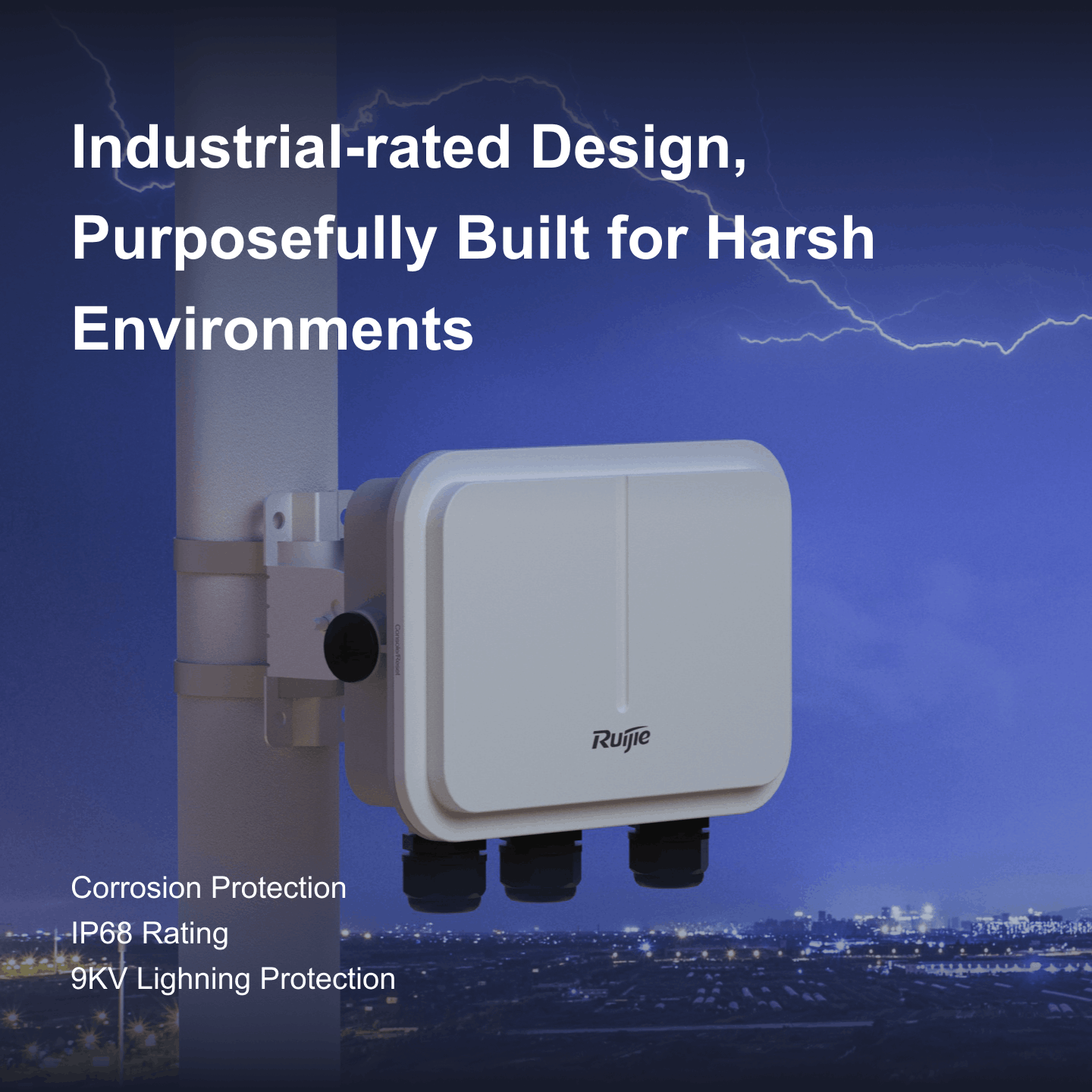

Mounting

Wall/Pole-mount (a mounting bracket is delivered with the main unit)

Radio design

Dual-radio and up to four spatial streams:

●    Radio 1: 2.4 GHz/5 GHz, two spatial streams, 2x2 MU-MIMO

●    Radio 2: 5 GHz, two spatial streams, 2x2 MU-MIMO

Operating frequencies

Radio 1: 802.11b/g/n/ax

●    2.400 GHz to 2.483 GHz, channels 1 to 13

Radio 2: 802.11a/n/ac/ax

●    5.150 GHz to 5.250 GHz, U-NII-1, channels 36, 40, 44, and 48

●    5.250 GHz to 5.350 GHz, U-NII-2A, channels 52, 56, 60, and 64

●    5.470 GHz to 5.725 GHz, U-NII-2C, channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, and 140

●    5.725 GHz to 5.850 GHz, U-NII-3/ISM, channels 149, 153, 157, 161, and 165

Note: Country-specific restrictions apply.

Data rates

Combined peak date rate for 2.4 GHz and 5 GHz radios: 1.775 Gbps

Combined peak date rate for 5 GHz and 5 GHz radios: 2.4 Gbps

Radio 1:

2.4 GHz: 574 Mbps

●    Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (max.)

●    Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client devices (typical)

5 GHz: 1.2 Gbps

●    Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (max.)

●    Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (typical)

●    Two spatial stream Multi-User (MU) MIMO for up to 1.2 Gbps wireless data rate to up to two 1SS HE80 802.11ax DL-MU-MIMO capable client devices simultaneously (max.)

●    Two spatial stream Multi-User (MU) MIMO for up to 574 Mbps wireless data rate to up to two 1SS HE40 802.11ax DL-MU-MIMO capable client devices simultaneously (typical)

Radio 2: 5 GHz, 1.2 Gbps

●    Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (max.)

●    Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (typical)

●    Two spatial stream Multi-User (MU) MIMO for up to 1.2 Gbps wireless data rate to up to two 1SS HE80 802.11ax DL-MU-MIMO capable client devices simultaneously (max.)

●    Two spatial stream Multi-User (MU) MIMO for up to 574 Mbps wireless data rate to up to two 1SS HE40 802.11ax DL-MU-MIMO capable client devices simultaneously (typical)

Data rate set

The following 802.11-compliant data rates in Mbps are supported:

2.4 GHz radio

●    802.11b: 1, 2, 5.5, 11

●    802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54

●    802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)

●    802.11ac: 6.5 to 400 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT40)

●    802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)

5 GHz radio

●    802.11a: 6, 9, 12, 18, 24, 36, 48, 54

●    802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)

●    802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80)

●    802.11ax: 8.6 to 1,200 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)

Packet aggregation

802.11n/ac/ax: A-MPDU and A-MSDU

Antenna type

Built-in intelligent antenna

Max. antenna gain

2.4 GHz radio: 9 dBi

5 GHz radio: 9 dBi

Max. transmit power

2.4 GHz radio: 28 dBm (25 dBm per chain)

5 GHz radio: 28 dBm (25 dBm per chain)

Note: The transmit power is limited by local regulatory requirements.

Power increment

Configurable in increments of 1 dBm

Radio technologies

802.11b: Direct-Sequence Spread-Spectrum (DSSS)

802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)

802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)

Modulation types

802.11b: BPSK, QPSK, CCK

802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

2.4 GHz 802.11b

1 Mbps

25 dBm

–92 dBm

2 Mbps

25 dBm

–82 dBm

5.5 Mbps

25 dBm

–84 dBm

11 Mbps

25 dBm

–78 dBm

2.4 GHz 802.11g

6 Mbps

25 dBm

–84 dBm

24 Mbps

23 dBm

–74 dBm

36 Mbps

23 dBm

–72 dBm

54 Mbps

20 dBm

–67 dBm

2.4 GHz 802.11n (HT20)

MCS0

25 dBm

–84 dBm

MCS7

20 dBm

–66 dBm

2.4 GHz 802.11n (HT40)

MCS0

25 dBm

–79 dBm

MCS7

20 dBm

–63 dBm

2.4 GHz 802.11ax (HE20)

MCS0

25 dBm

–84 dBm

MCS11

18 dBm

–54 dBm

2.4 GHz 802.11ax (HE40)

MCS0

25 dBm

–80 dBm

MCS11

18 dBm

–51 dBm

5 GHz 802.11a

6 Mbps

25 dBm

–84 dBm

24 Mbps

23 dBm

–74 dBm

36 Mbps

23 dBm

–72 dBm

54 Mbps

20 dBm

–67 dBm

5 GHz 802.11n (HT20)

MCS0

25 dBm

–84 dBm

MCS7

20 dBm

–66 dBm

5 GHz 802.11n (HT40)

MCS0

25 dBm

–81 dBm

MCS7

20 dBm

–63 dBm

5 GHz 802.11ac (VHT20)

MCS0

25 dBm

–84 dBm

MCS9

19 dBm

–61 dBm

5 GHz 802.11ac (VHT40)

MCS0

25 dBm

–81 dBm

MCS9

19 dBm

–56 dBm

5 GHz 802.11ac (VHT80)

MCS0

25 dBm

–78 dBm

MCS9

19 dBm

–53 dBm

5 GHz 802.11ax (HE20)

MCS0

25 dBm

–84 dBm

MCS11

18 dBm

–54 dBm

5 GHz 802.11ax (HE40)

MCS0

25 dBm

–81 dBm

MCS11

18 dBm

–51 dBm

5 GHz 802.11ax (HE80)

MCS0

25 dBm

–78 dBm

MCS11

18 dBm

–48 dBm

Bluetooth

Bluetooth 5.0

Antenna type

Integrated omnidirectional antenna

Max. antenna gain

4.5 dBi

Max. transmit power

10 dBm

Receive sensitivity

-88 dBm (@BLE)

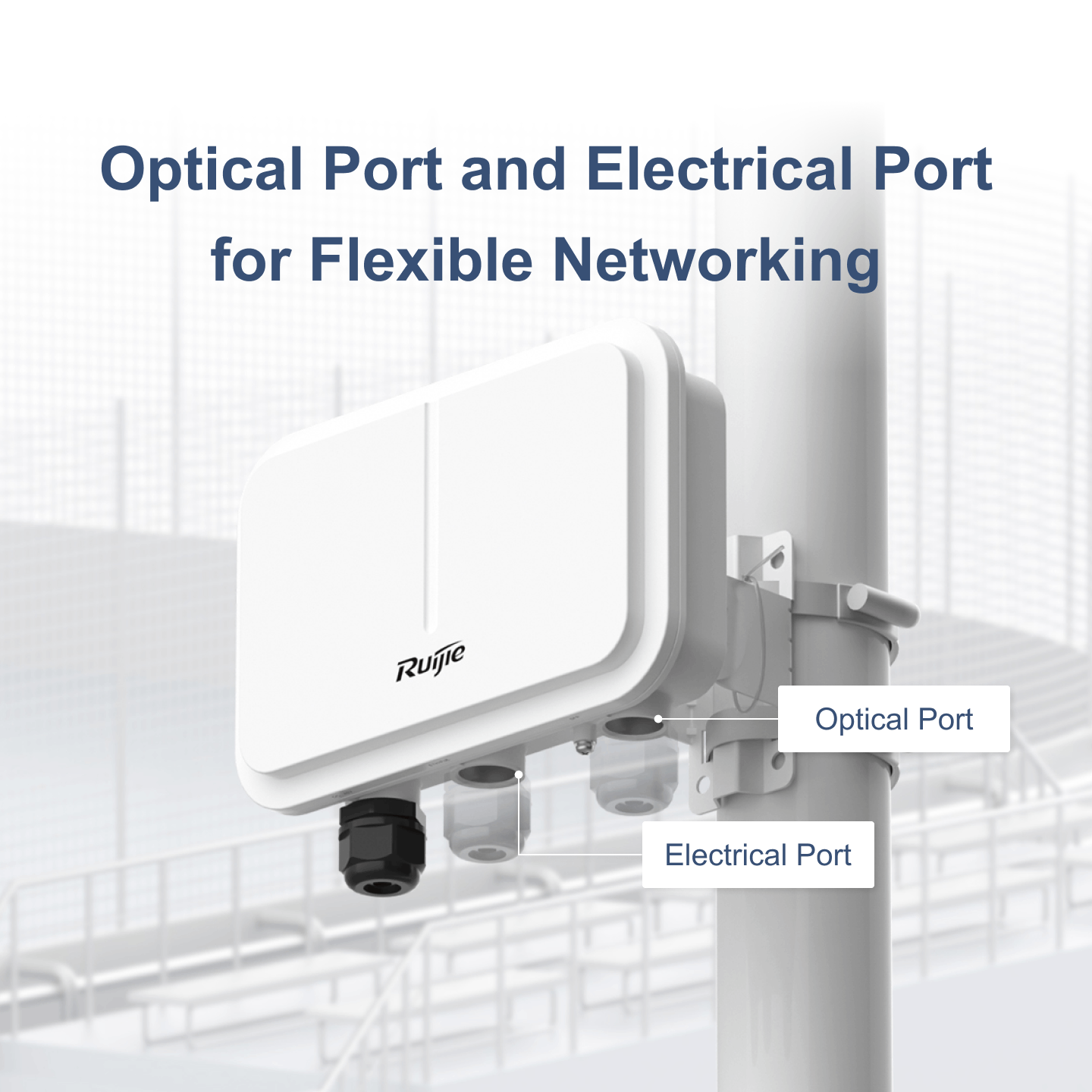

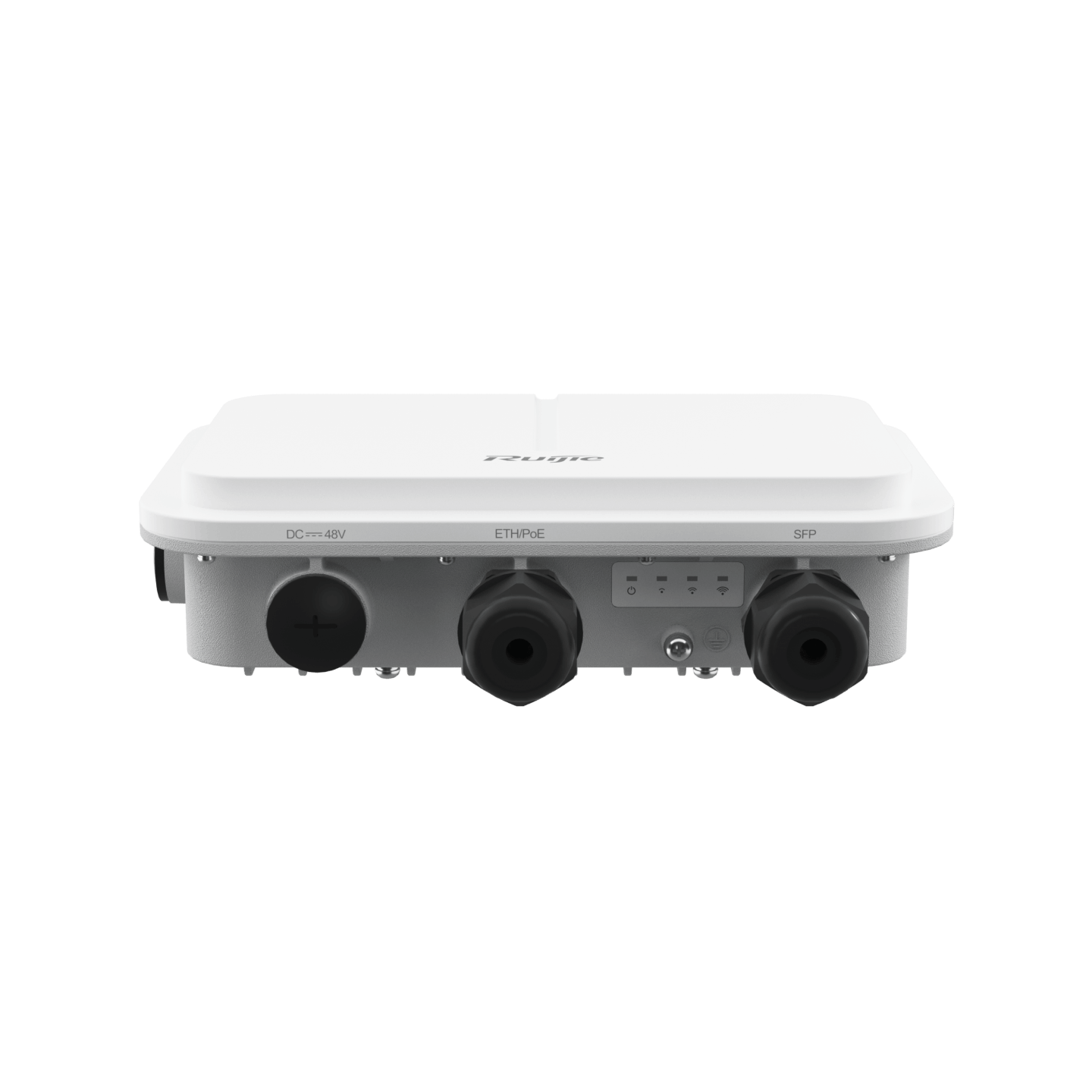

Fixed service port

1 x 10/100/1000Base-T Ethernet port, supporting PoE input

1 x GE SFP port

Fixed management port

1 x RJ45 console port (serial console port)

Status LED

1 x multi-color system status LED

3 x single-color RSSI LEDs

Button

1 x Reset button

●    Press the button for shorter than 2 seconds. Then the device restarts.

●    Press the button for longer than 3 seconds. Then the device restores to factory settings.

Input power supply

The AP supports the following two power supply modes:

●    48 V DC/0.35 A power input over DC connector: The DC connector accepts 2.0 mm/6.3 mm center-positive circular plug. A DC power adapter needs to be purchased independently.

●    PoE input over ETH/PoE: The power source equipment (PSE) complies with IEEE 802.3af/at standard (PoE/PoE+).

Note:

If both DC power and PoE are available, DC power is preferred.

Power consumption

Max power consumption: 12.95 W

●    DC powered: 12.95 W

●    PoE powered (802.3af): 12.95 W

●    PoE+ powered (802.3at): 12.95 W

●    PoE++ powered (802.3bt): 12.95 W

●    Idle mode: 6.0 W

Environment and Reliability

RG-AP680(CD)

Temperature

Operating temperature: –40°C to +65°C (–40°F to +149°F)

Storage temperature: –40°C to +85°C (–40°F to +185°F)

Note: At an altitude between 3,000 m (9,843 ft) and 5,000 m (16,404 ft), every time the altitude increases by 220 m (722 ft), the maximum temperature decreases by 1°C (1.8°F).

Humidity

Operating humidity: 0% to 100% RH (non-condensing)

Storage humidity: 0% to 100% RH (non-condensing)

IP rating

IP68

Mean Time Between Failure (MTBF)

> 250000 H

Regulatory compliance

EN 55032:2015+AC:2016

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 55035:2017

Certifications

Wi-Fi Alliance:

●    Wi-Fi CERTIFIED a, b, g, n, ac, ax

●    WPA2™-Enterprise 2018-04

●    WPA2™-Personal 2018-04

●    WPA3™-Enterprise 2019-08

●    WPA3™-Personal 2020-12

●    WPA™-Enterprise

●    WPA™-Personal

●    WMM®, Wi-Fi Agile Multiband™

Applicable software version

RGOS11.9(6)W1B1 or higher

Max. number of associated STAs

1,024 (up to 512 STAs per radio)

Max. number of BSSIDs

32 (up to 16 BSSIDs per radio)

STA management

SSID hiding

Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.

Remote intelligent perception technology (RIPT)

Intelligent client identification technology

Intelligent load balancing based on the STA quantity or traffic

STA limiting

SSID-based STA limiting

Radio-based STA limiting

Bandwidth limiting

STA/SSID/AP-based rate limiting

Wireless roaming

Layer 2 and Layer 3 roaming

Authentication and encryption

Remote Authentication Dial-In User Service (RADIUS)

PSK and web authentication

QR code-based guest authentication (used with the RG-WS series wireless access controller)

SMS authentication (used with the RG-WS series wireless access controller)

MAB authentication (used with the RG-WS series wireless access controller)

Data encryption: WPA (TKIP), WPA-PSK, WPA2 (AES), WEP (64/128-bit)

Data frame filtering

Allowlist, static blocklist, and dynamic blocklist

WIDS

User isolation

Rogue AP detection and containment

ACL

Dynamic ACL assignment

CPP

Supported

NFPP

Supported

IP service

Static IPv4 address

IPv4 DHCP Client

NAT FTP ALG and NAT DNS ALG

Multicast

Multicast-to-unicast conversion

IPv6 basics

IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 Ping

IPv6 DHCP Client

IP routing

IPv4/IPv6 static routing

VPN

PPPoE Client

IPsec VPN

Network management

Fault inspection and alarm

Information statistics and logging

Network management platform

Web-based management (Eweb)

User access management

Telnet, SNMP, SSH and TFTP-based management

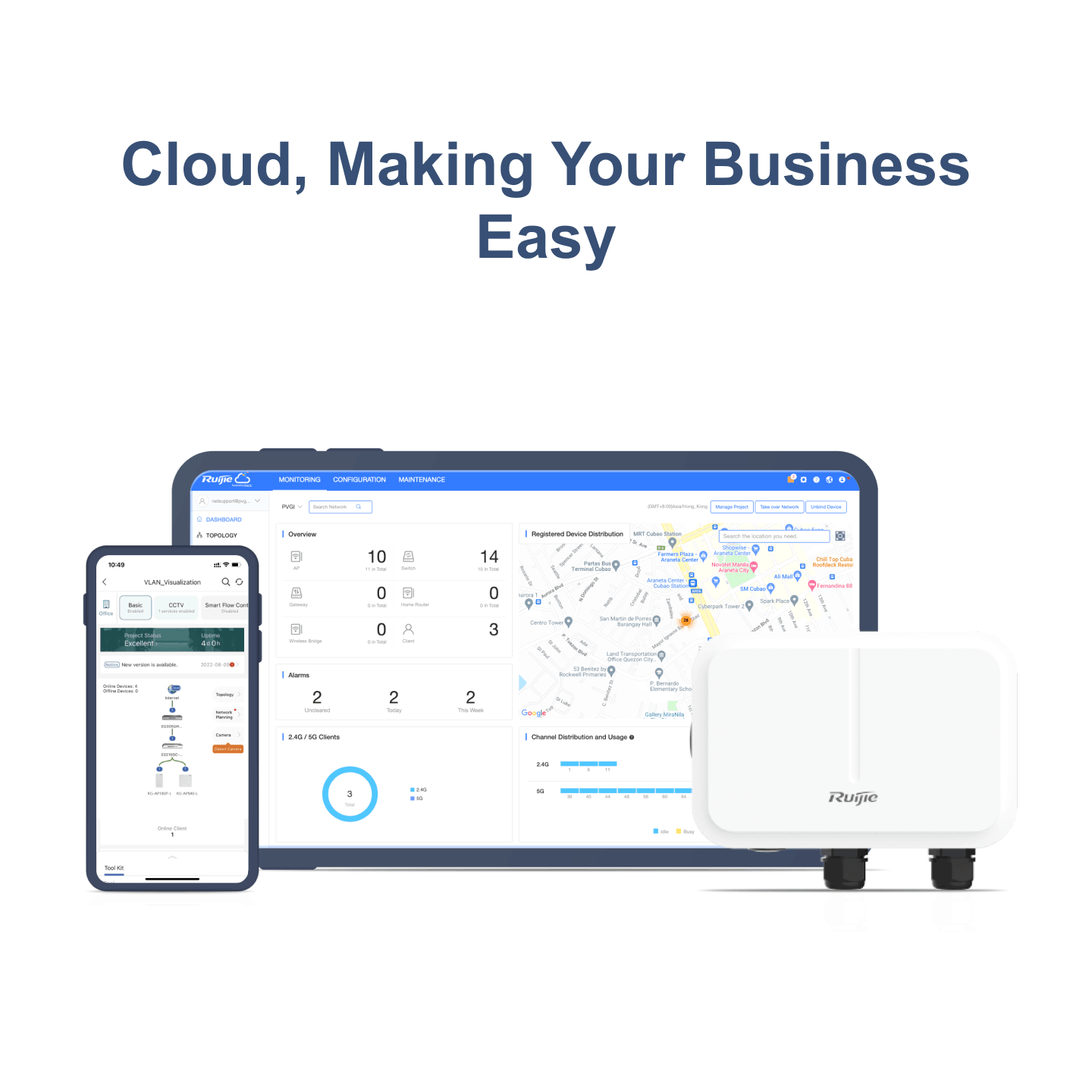

Fat/Fit/Cloud mode switchover

When the AP works in Fit mode, it can be switched to Fat mode through an AC.

When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet.

When the AP works in Cloud mode, it can be managed through Ruijie Cloud.
