Ruijie Reyee Series RG-EST310 V2 is an 802.11ac wireless bridge for video surveillance backhaul or remote wireless transmission in scenarios such as elevators, tower cranes, factories, campuses, and construction sites. Operating at 5GHz, RG-EST310 V2 supports two spatial streams (2x2 MIMO technology) and provides up to 867Mbps throughput, which can fully meet the data link bandwidth requirements of various services.

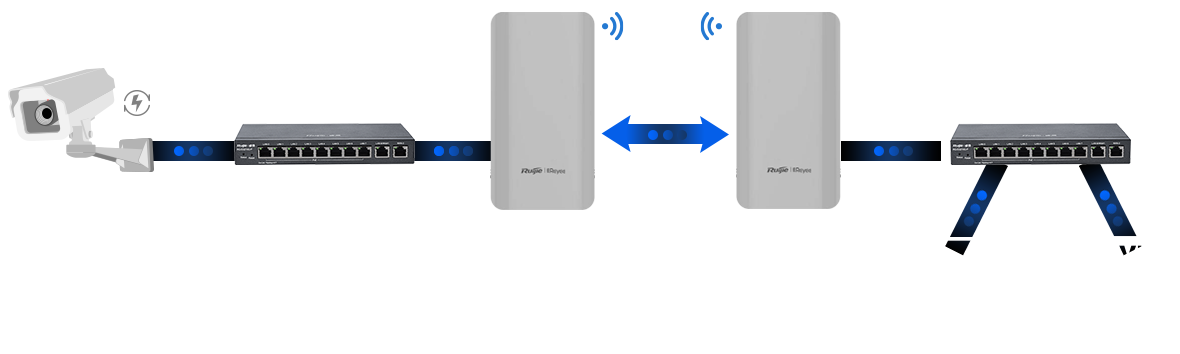

RG-EST310 V2 consists 2 devices, including the recorder-end and camera-end device. They are paired by default and can be deployed without requiring any configurations. When used for video surveillance backhaul, it is recommended to connect a switch or hard disk recorder to the recorder-end and connect a network camera to the camera-end.
RG-EST310 V2 can be managed via the app, including viewing the network topology and modifying configurations, which has completely revolutionized the conventional contact-type bridge configuration method. Bridge maintenance no longer requires working at heights, reducing the difficulty of maintaining bridges to an unprecedented level.

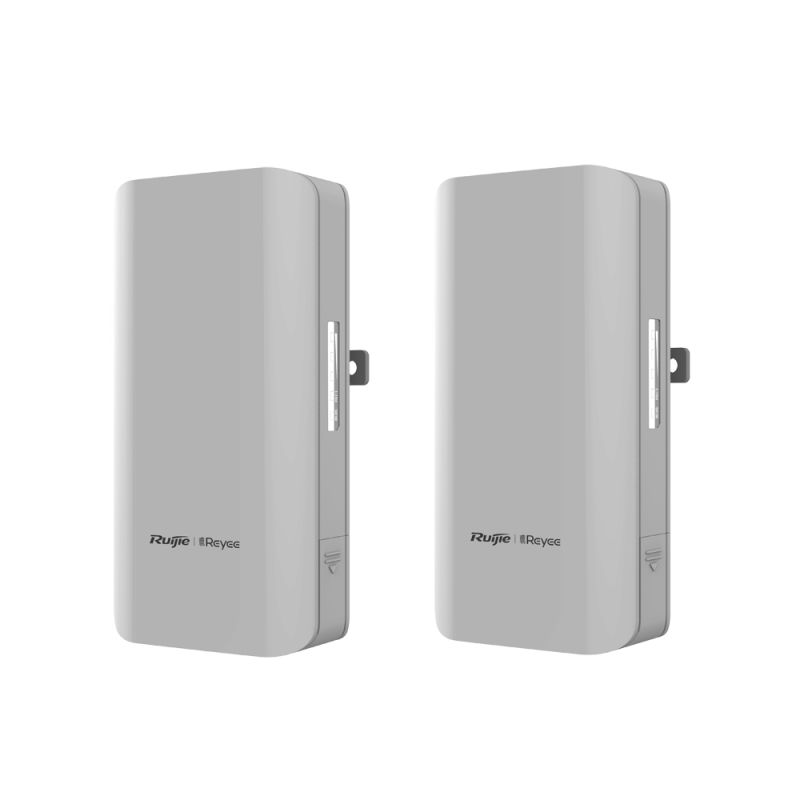

With the four-sided curved edges design, RG-EST310 V2 fully utilizes the compact size and offers an exquisite exterior design. Straps are provided for easy equipment installation. The casing of the device is optimized to deliver better dustproof and waterproof performance, providing IP54 protection. The weather-resistant materials enable the casing to stay robust for a long time under harsh conditions such as exposure to the sun, wind, acid and alkali corrosion. Moreover, the wide temperature range of the industrial materials adopted for the device fully guarantee the reliability and durability of the device under various complex environments such as hot and humid weather, dry and cold weather, sun exposure, rain, strong winds, etc. The device is capable of effectively withstanding the impact of bad weather or harsh environments, offering high stability while significantly reducing construction and installation difficulties.
The device is built-in with wireless product management software. Users can view all wireless bridge information and the topology by logging in to any bridge device.
Highlight：
·Auto-provisioning via self-organing network：RG-EG series realizes the industry-leading auto-discovery and auto-networking features for gateways, switches and wireless;
·Lifetime free Ruijie Cloud managed: Remote fault alarm, one-click operation and maintenance on Ruijie Cloud App;
·High Reliability: provide dustproof and waterproof IP54 protection for outdoor environments
·Zero Configuration: RG-EST310 V2 consists 2 devices，and they are paired by default and can be used without requiring any configurations
|
Hardware specifications
|
|
RAM / Flash
|
64MB / 8MB
|
|
Radio
|
5GHz, dual-stream single-band 2×2
|
|
Operating Band
|
802.11a/n/ac: 5.150～5 .350GHz, 5.470~5.725GHz , 5.725～5 .850GHz (country specific)
|
|
Antenna
|
Built-in directional antennas, 10dBi
|
|
Polarization
|
Horizontal: 60°, Vertical: 30°
|
|
Spatial Streams
|
2
|
|
Maximum Throughput
|
Up to 867Mbps at 5GHz
|
|
Max. Transmit Power
|
≤400mW (26dBm)
|
|
Dimensions
|
147mm(D)×76mm(W)×37mm(H) (Dimensions per device) (Same size for the transmitter and receiver,
H: height of the device excluding the mounting kits)
|
|
Weight
|
0.35kg
|
|

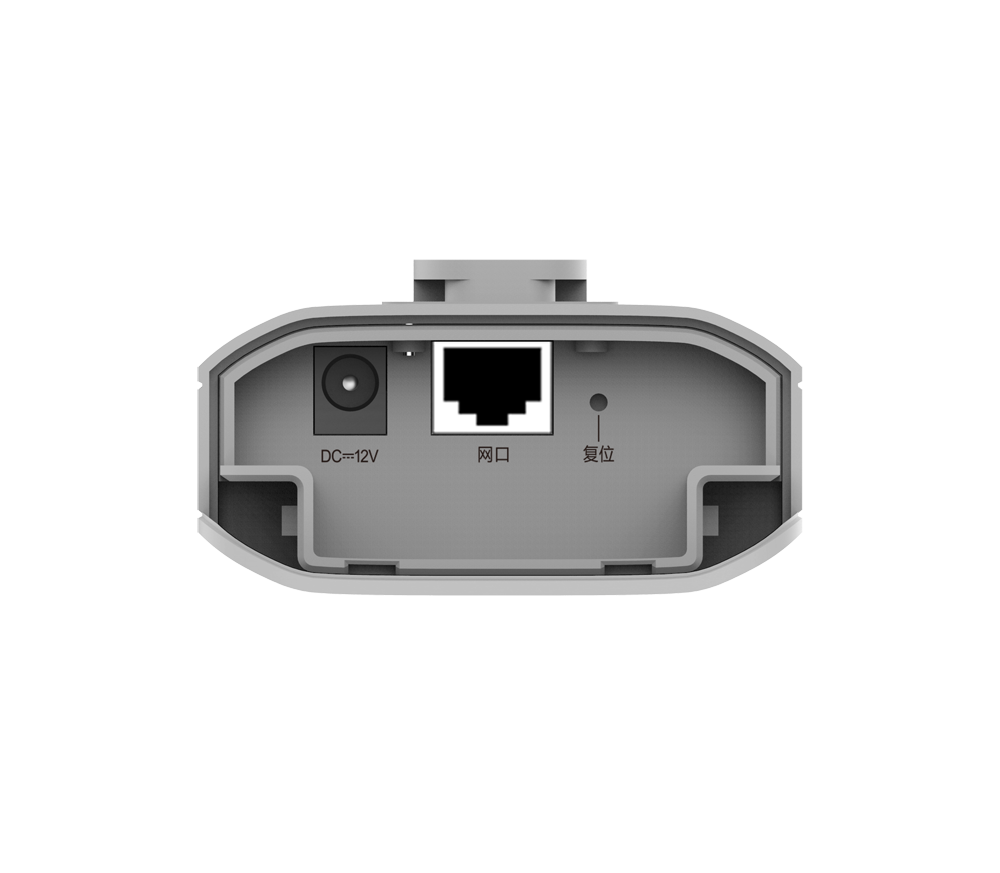

Ports
|
1 10/100Base-T Ethernet port, supports 24VDC non-standard PoE
1 DC port, supports 12VDC power supply
|
|
Hardware Button
|
1 reset button
|
|
Status Indicators
|
System indicator: 1
Port indicator: 1
Bridge signal strength indicators: 3
|
|
Power Supply
|
Support 12VDC power supply and 24VDC non-standard PoE
|
|
Power Consumption
|
≤7W
|
|
Environment
|
Operating temperature: -30°C ~ 55°C (-22°F ~ 131°F) Storage temperature: -40°C~70°C (-40°F ~ 158°F) Operating humidity: 5%~95% (noncondensing)
Storage humidity: 5%~95% (noncondensing)
|
|

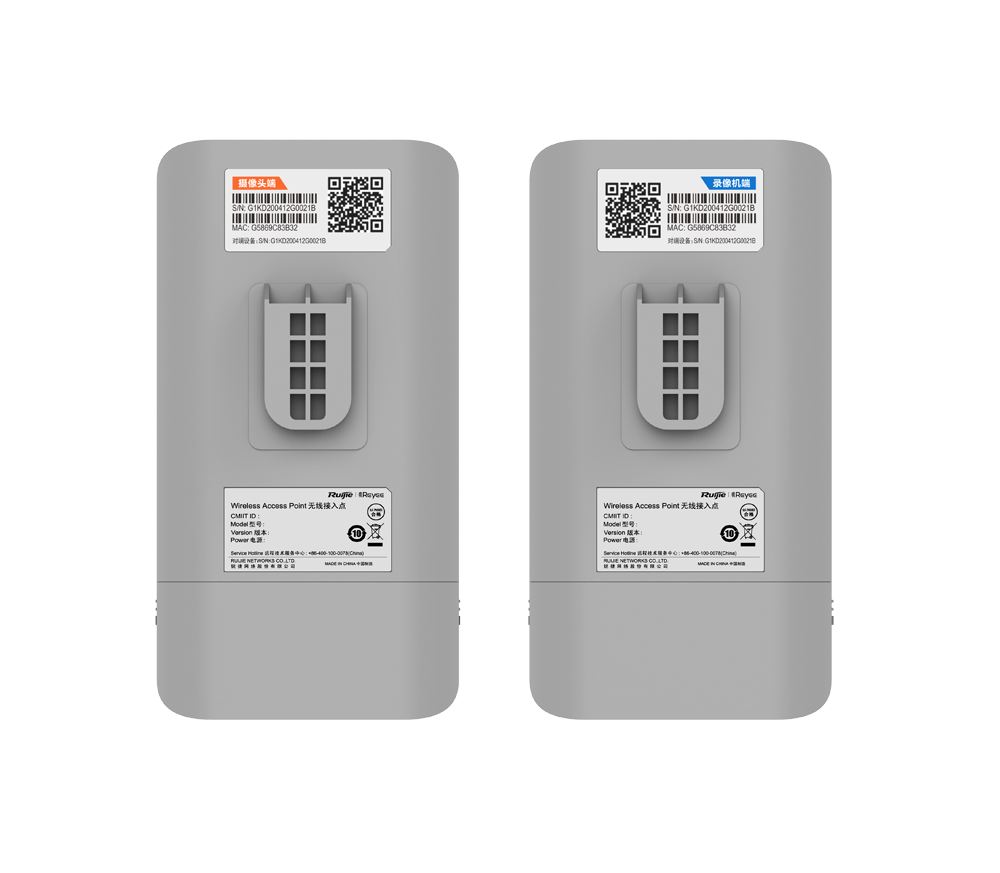

Installation
|
Wall-mounted/ Pole-mounted (straps provided)
|
|
IP Rating
|
IP54
|
|
Lightning Protection
|
4KV
|
|
Radio Standard
|
SRRC certification
|
|
Software Features
|
|
Automatic Bridging
|
Support
The recorder-end and camera-end are automatically paired for bridging by default
|
|
Device Configuration and
Management
|
Support App/Web configuration
|
|
QR Code Login
|
Users can log in to the device configuration interface by scanning the
QR code of the device using the app
|
|
Self-healing
|
Automatic restart upon equipment failure
|
|
Automatic Channel Adjustment
|
Automatically adjust the channel upon power-on
|
Datasheet (Ruijie_RG-EST310_V2_Wireless_Bridge_Datasheet0401.pdf, 1,387 Kb) [Download]
