Highlights
-
Up to 867 Mbps on 5 GHz using 802.11ac (Wi‑Fi 5) and 2×2 MIMO
-
Built-in 16 dBi antenna with ~31° horizontal / ~14° vertical beamwidth for coverage up to 5 km (LOS)
-

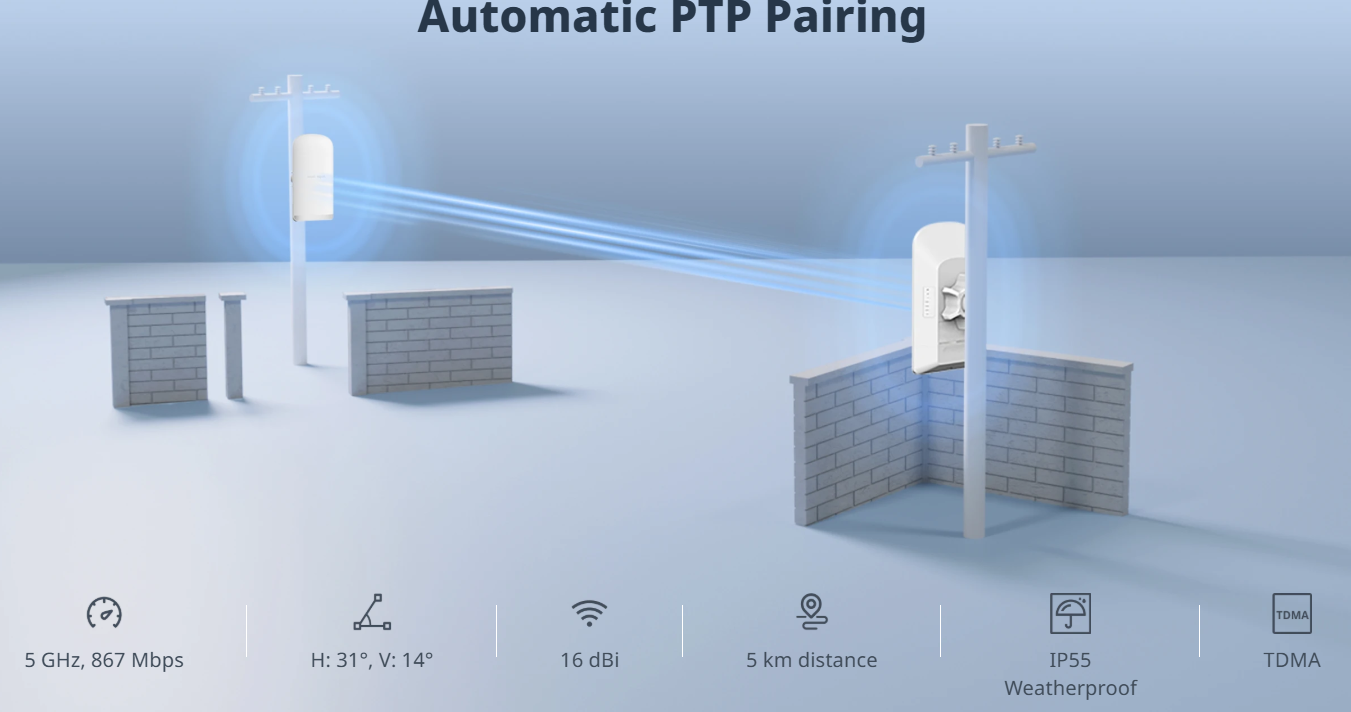

Supports point-to-point and point-to-multipoint setups with automatic pairing and SON & TDMA support
-

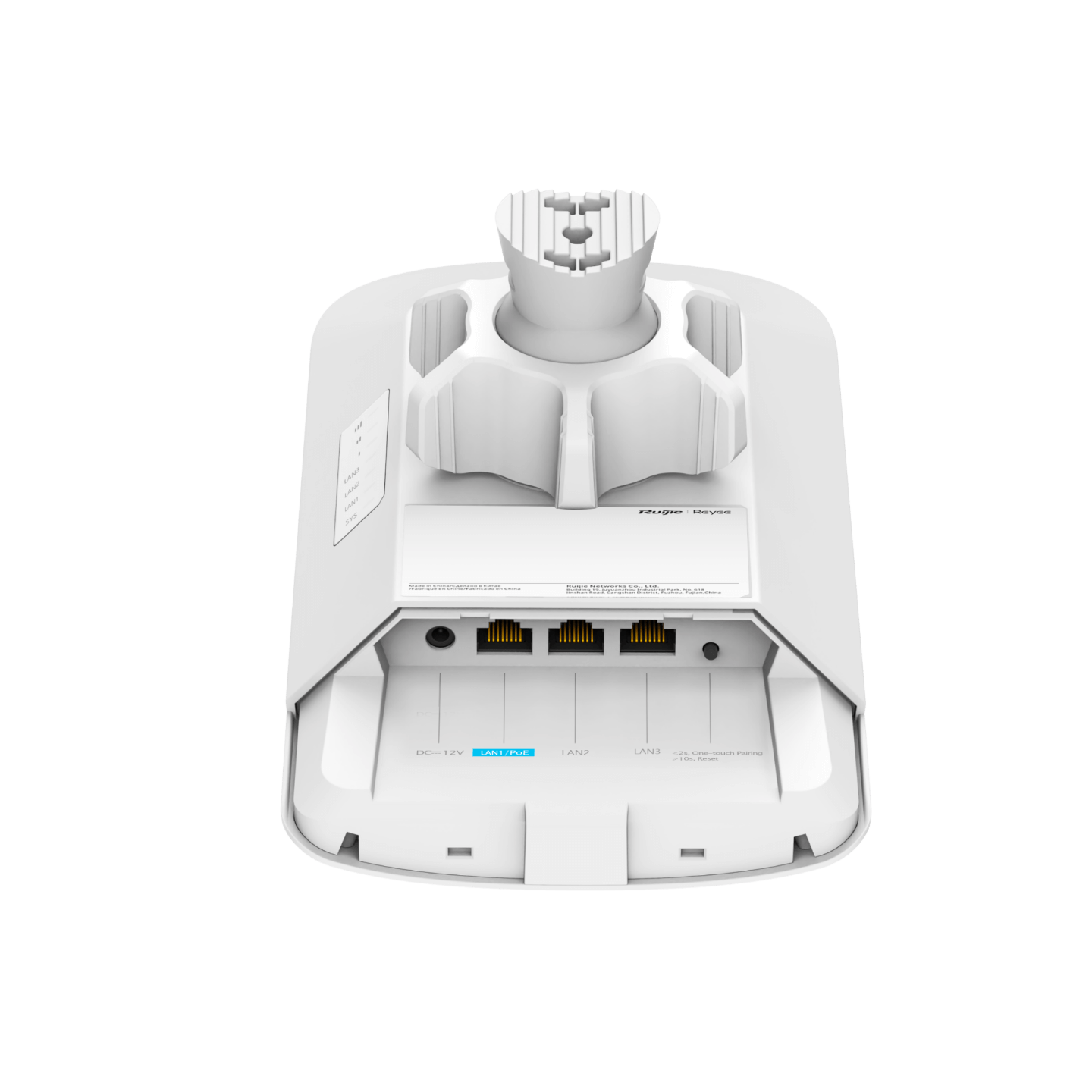

Includes 3 × Gigabit Ethernet ports, with support for 12 V DC, 24 V passive PoE, or 802.3af/at power inputs
Technical Overview
| Feature | Specification |
|---|---|
| Wireless Standard | 802.11ac/n/a (Wi‑Fi 5), dual‑stream, 2×2 MIMO |
| Frequency Bands | 5.150–5.850 GHz; 2.4 GHz for management |
| Max Wireless Speed | 867 Mbps on 5 GHz, 150 Mbps on 2.4 GHz |
| Antenna Gain & Beamwidth | 16 dBi; ~31° horizontal, ~14° vertical |
| Link Range (LOS) | Up to 5 km |
| Client Support | Handles up to 20 × 2 MP cameras at 5 km, 45 at 3 km |
| Ethernet Ports | 3 × Gigabit (10/100/1000 Mbps) |
| Power Options | 12 V DC, 24 V Passive PoE, or 802.3af/at PoE |
| Power Consumption | < 12 W |
| Environmental Rating | IP55 weatherproof; ESD protection up to ±15 kV |
| Operating Temperature | –30 °C to +65 °C (some materials note –40 °C to +80 °C) |
| Management Features | Cloud, SON, TDMA, spectrum scan, antenna alignment tools |
| Size & Weight (per unit) | ~240 × 133 × 108 mm; 0.73 kg |
