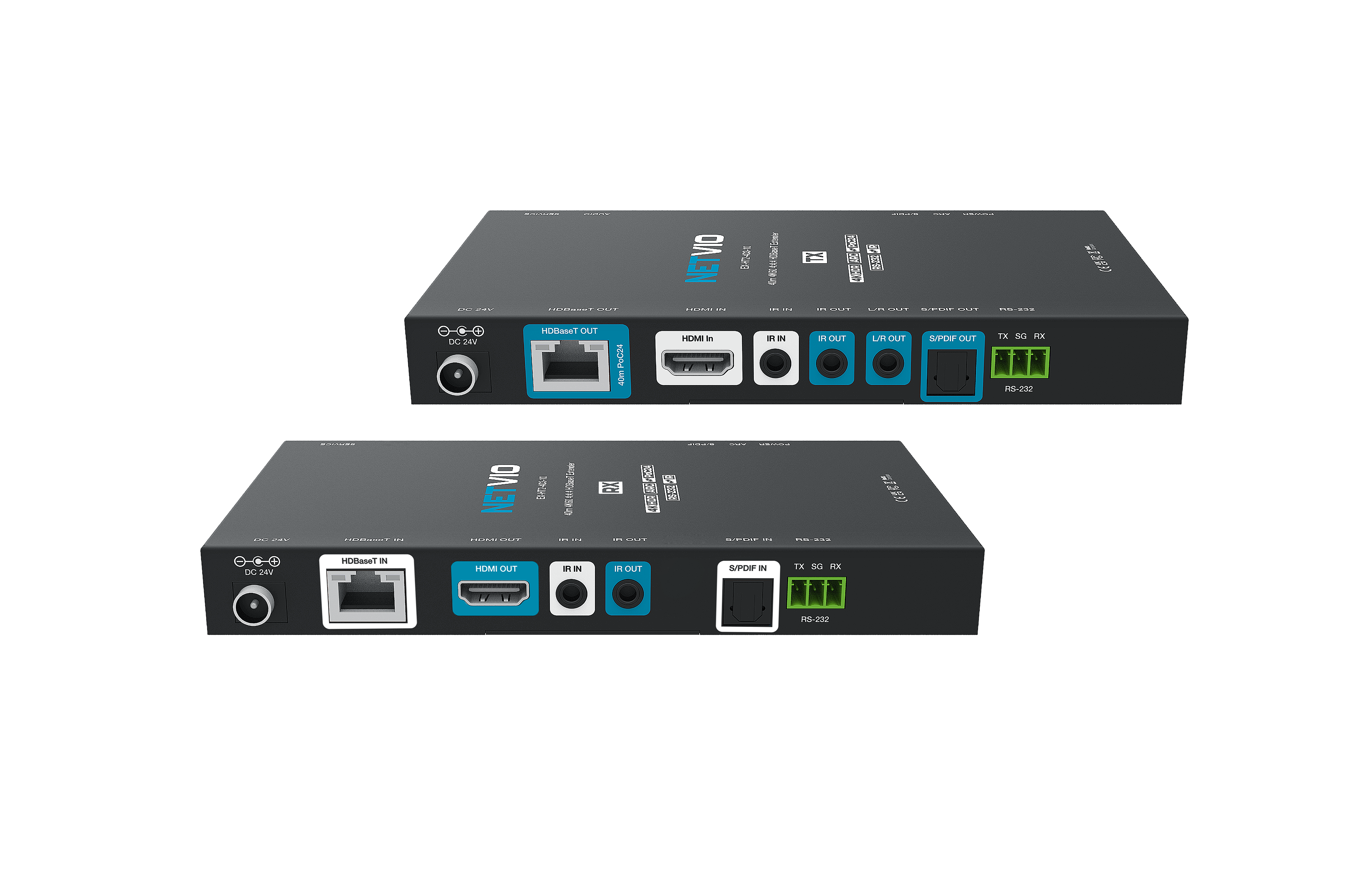

Netvio 40m 4K/60Hz | 70m 1080p | HDBaseT extender with ARC, 2-way IR, RS-232 & 2-way PoC
.png)
4K60 HDR
The EX-HT2-403-10 supports high bandwidth transmission of 4K HDR at 60Hz, which provides sufficient overhead for all major commercially available sources in use today. Perfect for gaming where zero latency is essential and makes sure you're always ready with the most stunning picture quality possible!
.png)
TX or RX Power
Find a home for those power supplies is never easy. The EX-HT2-403-10 provides some assistance with 2-Way Power-Over-Cable. This means you can power devices from either the transmitter or display locations. Just a small contribution to making life a little easier.
Capture
The EX-HT2-403-10 allows easy capture of ARC audio coming from your screen apps such Netflix & Spotify. Capture using HDMI or SPDIF then breakout out to your room amplifier using digital or analog connections.
Bi-Directional Control
With the EX-HT2-403-10 extender, you're able to effortlessly control both your display and media sources from either a traditional remote or integrated control system - with bi directional IR and RS 232 support.
Specifications
VIDEO
- Encoding Data Rate
- HDBaseT: Max 10.2Gbs subject to variable stream compression and up-conversion.
- Max Video Transmission
- 3840x2160 60fps 4:4:4 8b
- HDBaseT
- HDBaseT (10.2Gb) @ 40m 4K/60 HDR | 70m/1080p.
- HDMI
- Supporting HDMI 2.0b resolutions including 3840x2160 60fps HDR.
- Max Pixel Clock
- 600MHz / 600Mcsc
- HDR Compatibility
- HDR10, HDR10+, Hybrid Log-Gamma, Dolby Vision
- HDCP
- Inclusive up to 2.2
Audio
- Audio Formats:
- LPCM 2ch, LPCM 5.1, LPCM 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS Master
- Audio Return Channel:
- ARC capture from embedded HDMI subject to display capability.
- 1no. (RX) S/PDIF display audio input (supporting LPCM and proprietary bitstreams) audio via female optical TOSLink socket.
- Audio Outputs (TX):
- 1no. S/PDIF output (supporting LPCM and proprietary bitstreams) audio via female optical TOSLink socket for direct audio system connection.
- 1no 3.5mm jack socket line level audio output for direct audio system connection.
COMMUNICATION & CONTROL
- HDMI:
- CEC, DDC
- HDBaseT:
- Supports CEC, DDC, RS-232 TXD, RXD and Infrared.
- RS-232:
- Direct RS-232 Serial interface (3-pin) via Phoenix-style, 3.5mm pitch male receptacle.
- IR:

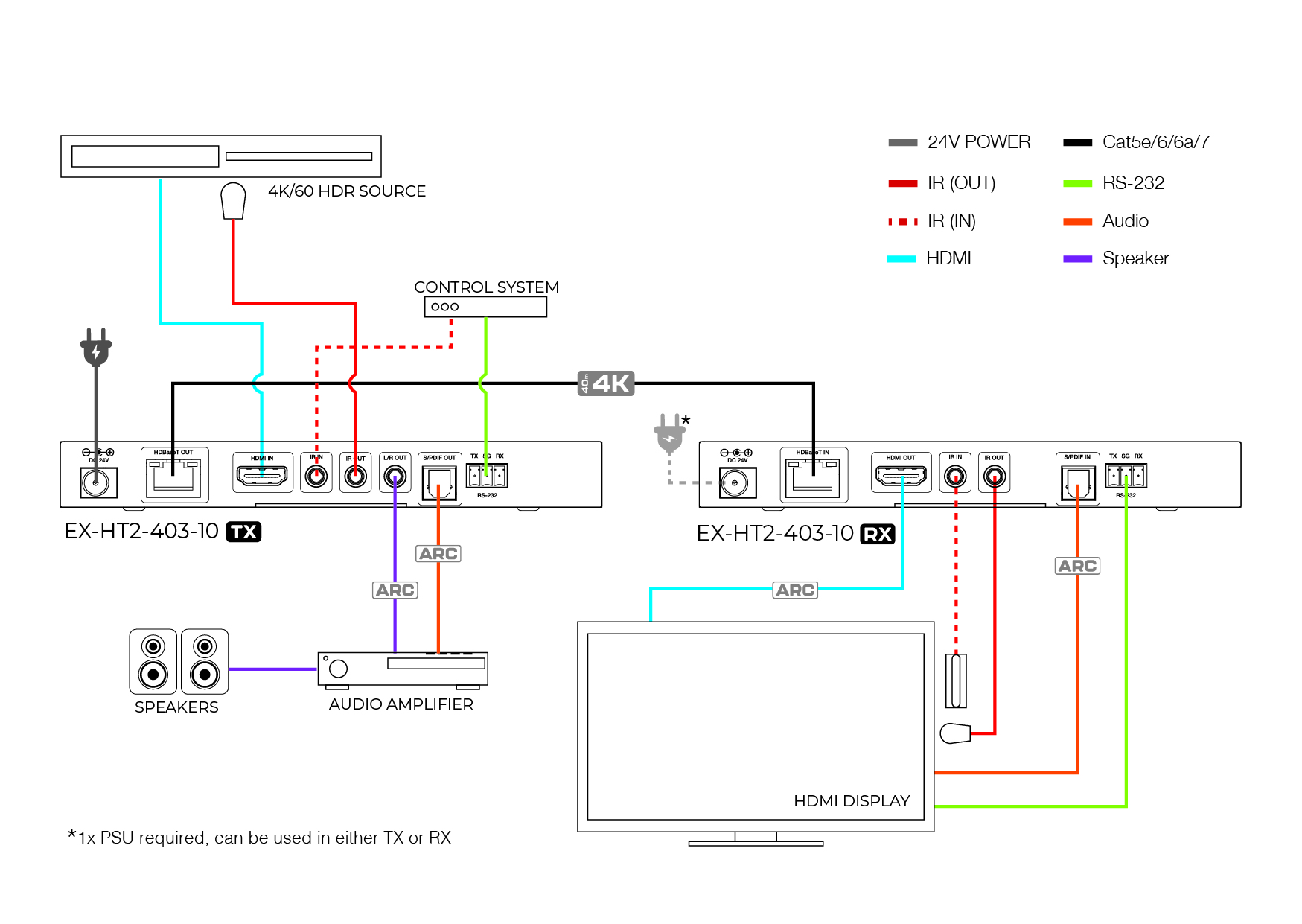

- Bi-directional Infrared, TX > RX, RX > TX via 3.5mm jack socket (see wiring schematic)
- EDID:
- Automatic | HDMI copy from RX to TX.
- ARC:
- TX toggle switch for audio source selection: Display HDMI, display S/PDIF, TX de-embed.
ENVIRONMENT
- Storage:
- -20°C / +60°C | 20% - 90% RH
- Operating:
- 0°C / +40°C | 20% - 90% RH
OTHER INFORMATION
- Power Supply:
- 24v External PSU supporting power-over-cable (PoC). PSU can be connected to either TX or RX.
- Weights & Dimensions (per device):
- Height: 20mm
- Width: 165mm
- Depth: 88mm
- Weight: 160g
- In the box:
- Mounting brackets
- IR Accessories
- Phoenix Connectors
- 24v PSU
- Regulations
- CE, UKCA, FCC, RoSH
- Warranty
- 5-Year standard warranty
