Netvio 40m 1080p HDMI Extender over CAT5/6 | PoC, HDMI Loop-out, IR Control

Netvio 40m 1080p HDMI Extender over CAT5/6 | PoC, HDMI Loop-out, IR Control

BASIC BUT EFFECTIVE

The TS-100 HDMI Extender is an economical way to extend 1080p quality signals over a distance of up to 40m, utilizing dedicated ethernet cable for seamless signal transmission. For those looking for affordable solutions that don't sacrifice performance, the TS-400 offers just the right solution!

IR MEDIA CONTROL

With its affordable price tag, the TS-400 provides top notch media control from up to 40m away - all essential accessories included! Enjoy seamless remote control support without having to worry about any extra costs.

POWER OVER CABLE

Don't let a power supply be an obstacle in your next AV installation! With the TS-400, you can finally free yourself from tangled cords and take advantage of its convenient Power over Cable feature to easily deliver power remotely.

5-YEAR WARRANTY

The TS-400 delivers the same quality and assurance as its more expensive counterparts - proving that low cost doesn't mean you have to sacrifice on lasting performance. Backed by a 5 year warranty, this affordable option is an excellent choice for any budget!

Specifications

VIDEO

• Encoding Data Rate​

• Over Cat5e/6: Max 10.2Gbs

• Max Video Transmission

• 1080p. 2K/60 8b 4:4:4

• ​Max Pixel Clock

• 165MHz / 165Mcsc

• HDR Compatibility

• Not supported
• ​HDCP
• Inclusive up to 1.4

AUDIO

• Audio Formats​

• LPCM 2ch, LPCM 5.1, LPCM 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS Master

COMMUNICATION & CONTROL

• IR​:

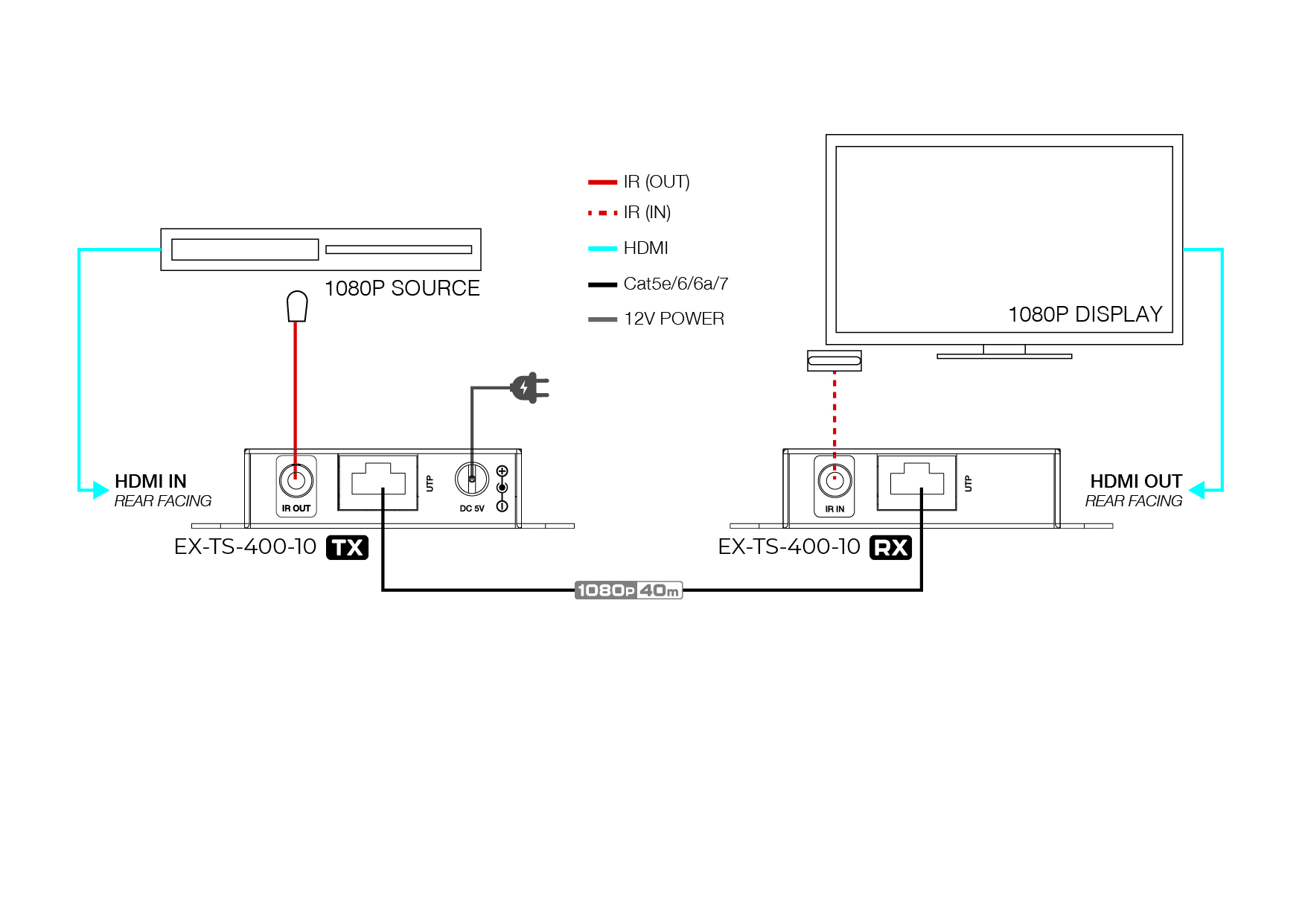

• 1-way, RX > TX via 3.5mm jack sockets. (see wiring schematic)

• EDID:

• Selectable | Remote display or local (TX) connection.

ENVIRONMENT

• STORAGE:

• -20°C - 60°C  | 20% - 90% RH

• OPERATING:

• -20°C - 60°C  | 20% - 90% RH

OTHER INFORMATION

• Power Supply:

• 12v external PSU supporting power-over-cable (PoC). PSU connection to either TX.

• Weights & Dimensions (per device):​

• Height: 17m
• Width: 68mm
• Depth: 58mm
• Weight: 130g

• In the box:

• Mounting brackets
• IR Accessories
• 12v PSU

• Regulations

• Safety Approvals: CE, UKCA, FCC, RoSH

• Warranty

• 5-Year standard warranty
