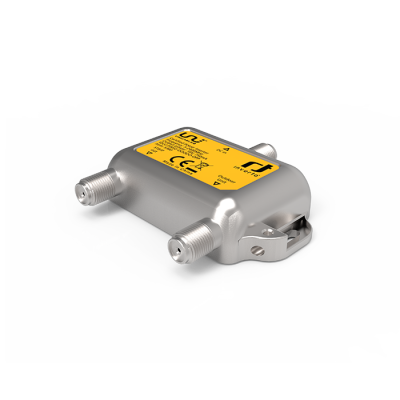

Inverto Unicable II Power Inserter

List price: 15.00
10.00
(12.30 inc VAT) You save: €5.00 (33%)
Inverto IDLU-PINS02-OOOOO-OPP
In stock
+
Add to wish list
Inverto Unicable II Power Inserter

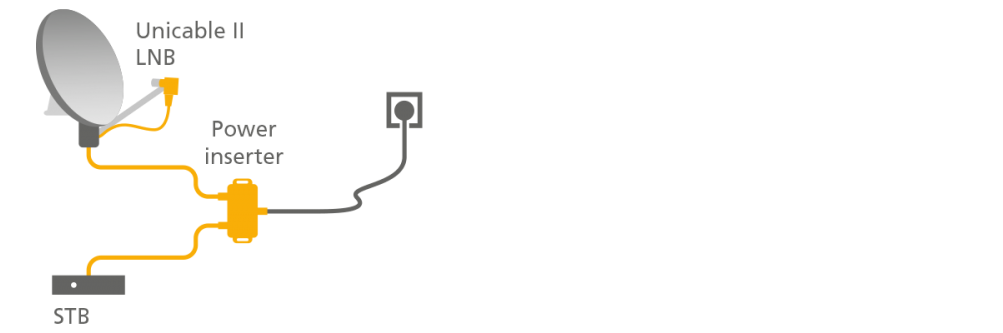

This power inserter is designed to power a Unicable II LNB or an output port of a Unicable II multiswitch unit and the connected Quattro / Wideband LNB in cases where the connected STB is not able to provide the required power for the LNB / multiswitch output port. It provides a constant DC voltage to the LNB / multiswitch output port without loading the STB and passes the STB’s DiSEqC/EN50494/EN50607 commands to the LNB / multiswitch output port unit.


Technical specifications
Frequency range 5 - 2400 MHz
DC in 19V/1A, 1x F-type, female
ODU input (IF) 1x F-type, female
STB output (IF) 1x F-type, female
Insertion loss 3 dB max.
Input return loss -10 dB max.
Output return loss -10 dB max.
Maximal current flow-through 750 mA
Output voltage 17 V (Input @19V, 940mA)
Operating temperature -30 °C ~ +60 °C
Weight 81 g
Dimensions (W x D x H) 65 mm x 75 mm x 17.3mm
