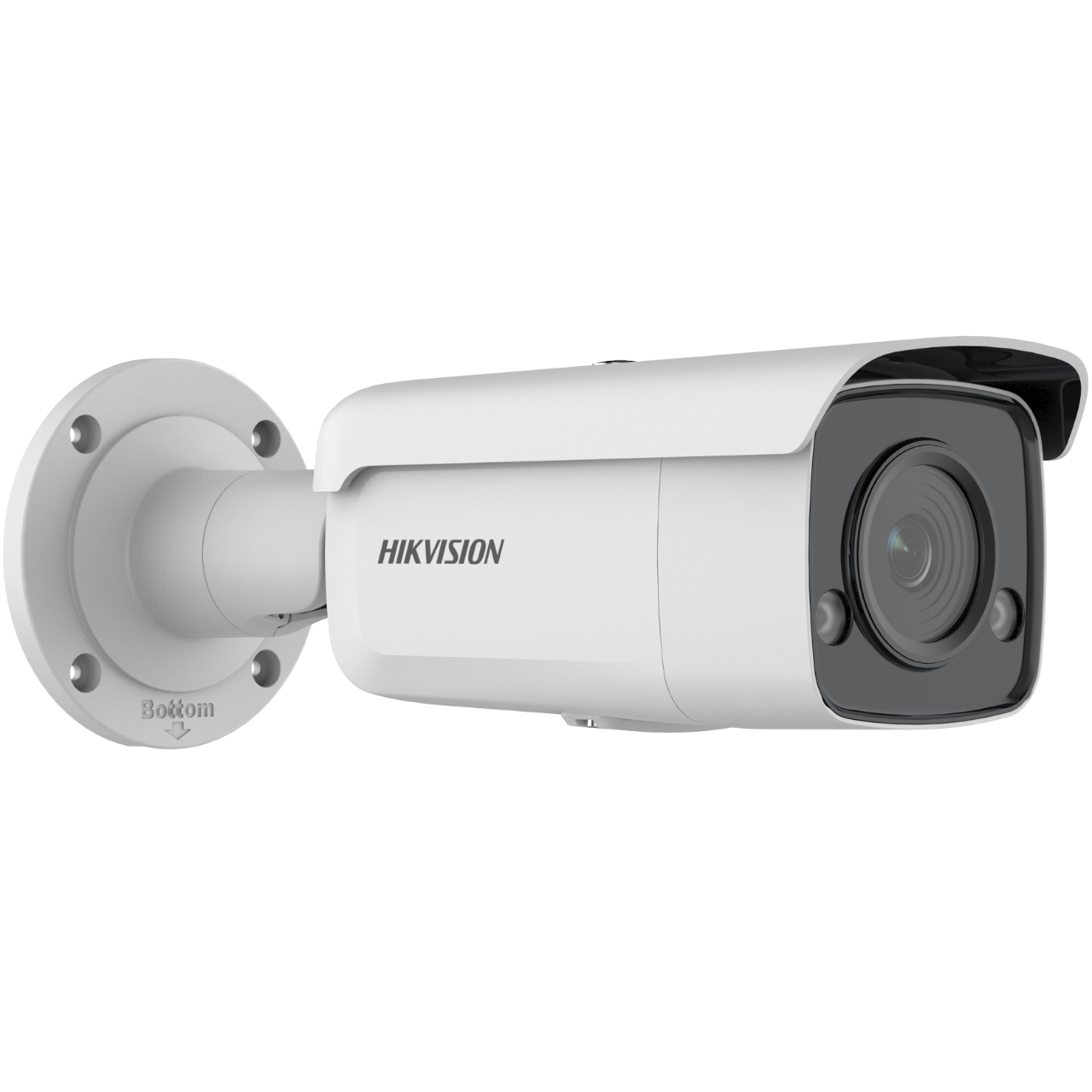

Hikvision IP 4MP COLORVU ACUSENSE Bullet Camera 4mm

Trade Only Product

DS-2CD2T47G2-L(4MM)
In stock

Hikvision IP 4MP COLORVU ACUSENSE Bullet Camera 4mm

4 MP ColorVu Fixed Bullet Network Camera

  • High quality imaging with 4 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong backlight due to 130 dB WDR technology
  • Focus on human and vehicle targets classification based on deep learning
  • 24/7 colorful imaging
  • Water and dust resistant (IP67)

Specification:


Camera

  • Image Sensor 1/1.8" Progressive Scan CMOS
  • Max. Resolution 2688 × 1520
  • Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter Time 1/3 s to 1/100,000 s
  • Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
  • Lens Type Fixed focal lens,  4mm
  • Focal Length & FOV

    4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°

  • Lens Mount M16
  • Iris Type Fixed
  • Aperture F1.0
  • Depth Of Field

    4 mm, 3.5 m to ∞

DORI
  • DORI

    4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

Illuminator
  • Supplement Light Type White Light
  • Supplement Light Range 60 m
  • Smart Supplement Light Yes
Video
  • Main Stream

    50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

    60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (640 × 480, 640 × 360)

    60 Hz: 30 fps (640 × 480, 640 × 360)

  • Third Stream

    50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    *Third stream is supported under certain settings.

  • Video Compression

    Main stream: H.265/H.264/H.265+/H.264+

    Sub-stream: H.265/H.264/MJPEG

    Third stream: H.265/H.264

    *Third stream is supported under certain settings.

  • Video Bit Rate 32 Kbps to 8 Mbps
  • H.264 Type Baseline Profile/Main Profile/High Profile
  • H.265 Type Main Profile
  • Bit Rate Control CBR/VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region Of Interest (ROI)1 fixed region for main stream and sub-stream
Network
  • Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
  • Simultaneous Live View Up to 6 channels
  • API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
  • User/Host Up to 32 users. 3 user levels: administrator, operator and user
  • Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage

MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Together with high-end Hikvision memory card, memory card encryption and health detection are supported


  • Client iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser

    Plug-in required live view: IE 10+

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+

    Local service: Chrome 57.0+, Firefox 52.0+

  • Image Parameters Switch Yes
  • Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night Switch Auto, Schedule
  • Wide Dynamic Range (WDR) 130 dB
  • SNR≥ 52 dB
  • Image Enhancement BLC, HLC, 3D DNR
Interface
  • Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
  • Reset Key Yes
Event
  • Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
  • Smart Event

    Line crossing detection, intrusion detection, region entrance detection, region exiting detection

    Scene change detection

  • LinkageUpload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
  • Deep Learning Function
  • Face Capture Yes
  • General
Power

12 VDC ± 25%, 0.7 A, max. 8.5 W, Ø5.5 mm coaxial power plug

PoE: 802.3af, 36 V to 57 V, 0.30 A to 0.18 A, max. 10.5 W


  • Dimension Ø105 mm × 289.5 mm (Ø4.1″ × 11.4″)
  • Package Dimension 385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
  • Approx. 1170 g (2.4 lb.)
  • With Package WeightApprox. 1689 g (3.5 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language

33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian


  • General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Approval
  • EMC

    FCC SDoC (47 CFR Part 15, Subpart B);

    CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

    RCM (AS/NZS CISPR 32: 2015);

    IC VoC (ICES-003: Issue 6, 2016);

    KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 60950-1);

CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014);

CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014);

BIS (IS 13252(Part 1): 2010+A1: 2013+A2: 2015);

LOA (IEC/EN 60950-1)


  • Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • Protection IP67 (IEC 60529-2013)

Datasheet (DS-2CD2T47G2-L-C_Datasheet_V5.5.112_20220114.pdf, 946 Kb) [Download]
