Product Overview

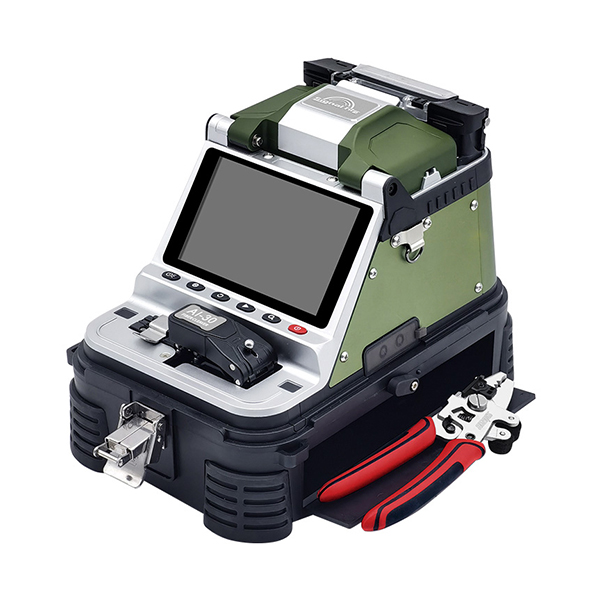

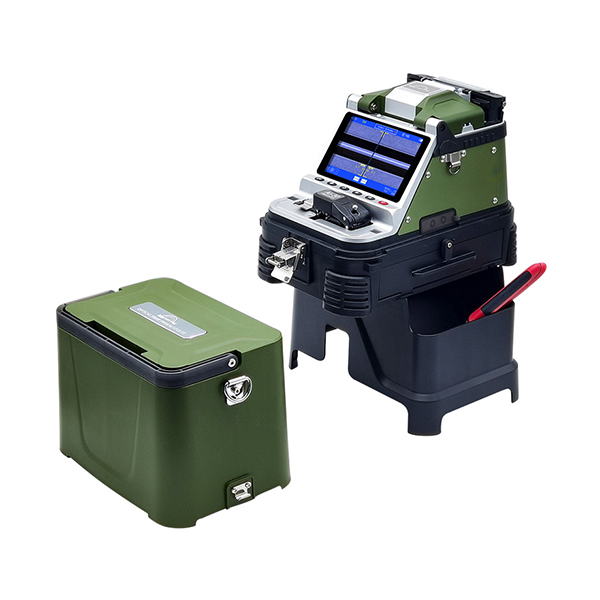

The Signal Fire AI-30 is a fourth-generation, all-in-one optical fiber fusion splicer designed for full-link integration and field efficiency. It combines a high-precision fusion splicer with an integrated electric one-step fiber cleaver, built-in Optical Power Meter (OPM), and Visual Fault Locator (VFL). Combined with a 9-in-1 fiber stripper and a versatile worktable/stool case design, the AI-30 provides a compact, lightweight workstation for FTTH and fiber network deployments.
Key Features & Innovations
-

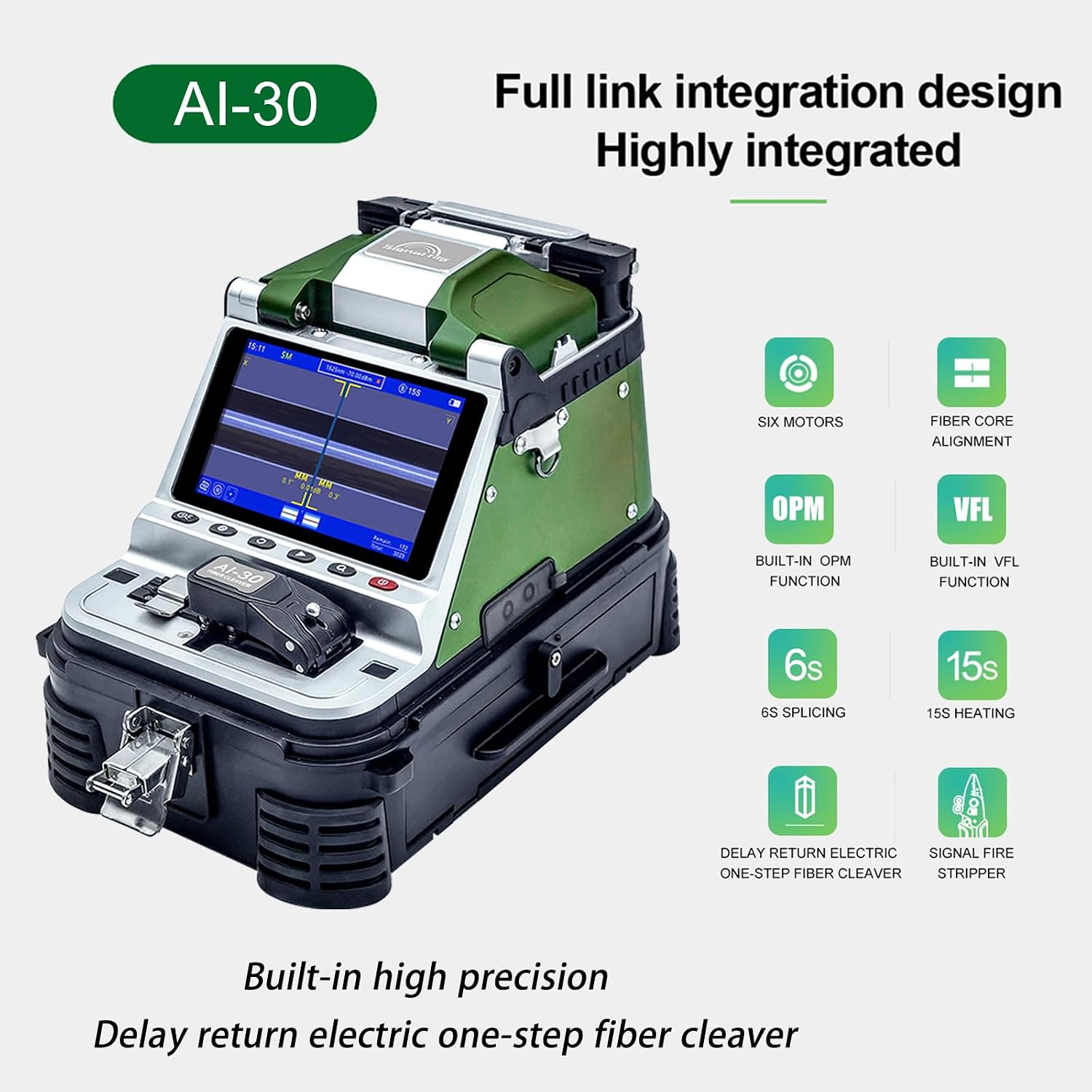

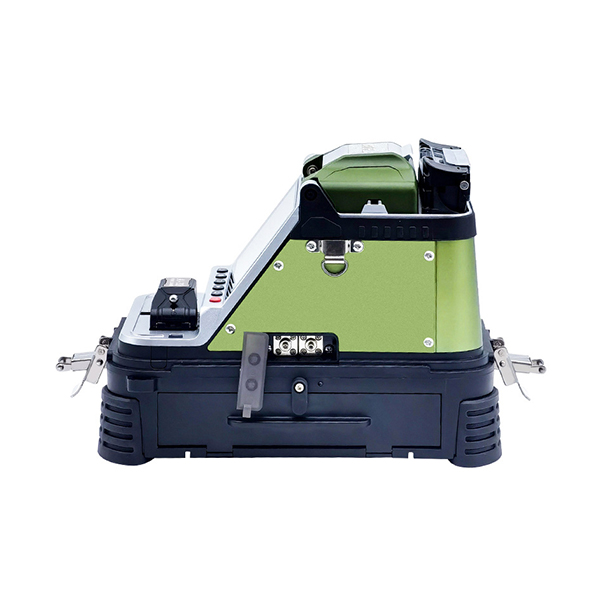

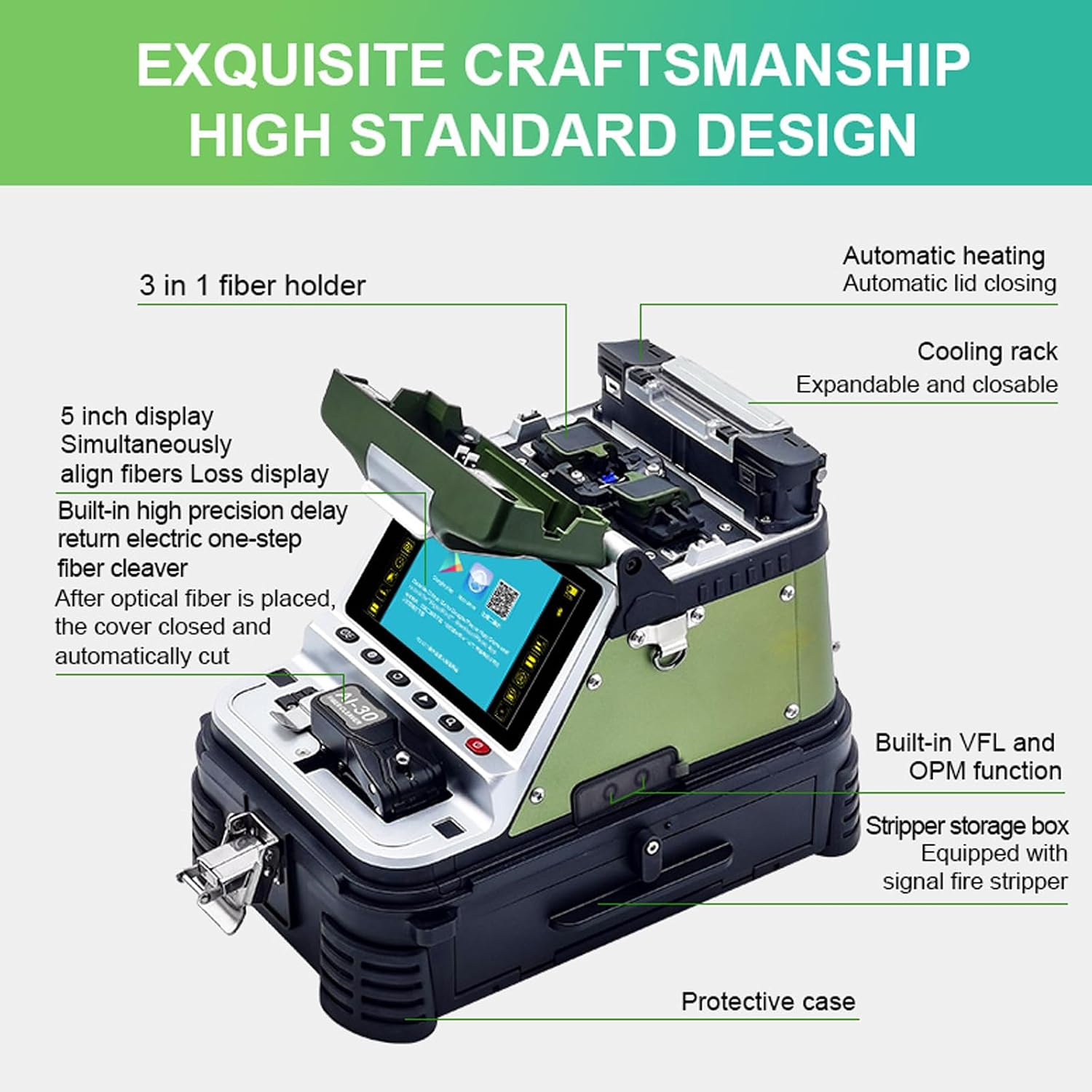

Integrated All-in-One Design: Combines the splicer, electric delayed-return fiber cleaver, 15 mW VFL, and multi-wavelength OPM into a single portable unit.
-
6-Motor Core Alignment: Features high-precision 6-motor core-to-core alignment with real-time luminous flux assistance.
-
Ultra-Fast Operation: Achieves 6-second splicing and 15-second automatic heat shrinking.
-
Smart Bluetooth & App Control: Built-in Bluetooth 4.2 enables mobile app connectivity for software updates, remote management, usage locking, and cloud storage for splicing logs.
-
Rugged & Durable: Engineered to be waterproof, dustproof, and shock-resistant for harsh environments.
Technical Specifications
| Feature | Specification |
| Alignment Method | Core / Cladding alignment (6 motors) |
| Splicing Time | 6 seconds |
| Heating Time | 15 seconds (customizable) |
| Splicing Loss | SM: 0.02 dB | MM: 0.01 dB | DS: 0.04 dB | NZDS: 0.04 dB |
| Applicable Fibers | SM (G.652/G.657), MM, bare fiber, drop cable, pigtails, |
| Fiber Holder | 3-in-1 universal holder |
| Display & View | 5-inch TFT color screen |
| VFL Output | 15 mW |
| OPM Wavelengths | 850, 1300, 1310, 1490, 1550, 1625, 980, 1270, 1577, 1650 nm |
| Battery Capacity | 7800 mAh |
| Data Storage | 1,000 records on device + unlimited cloud export via Mobile App |
