Save 27%

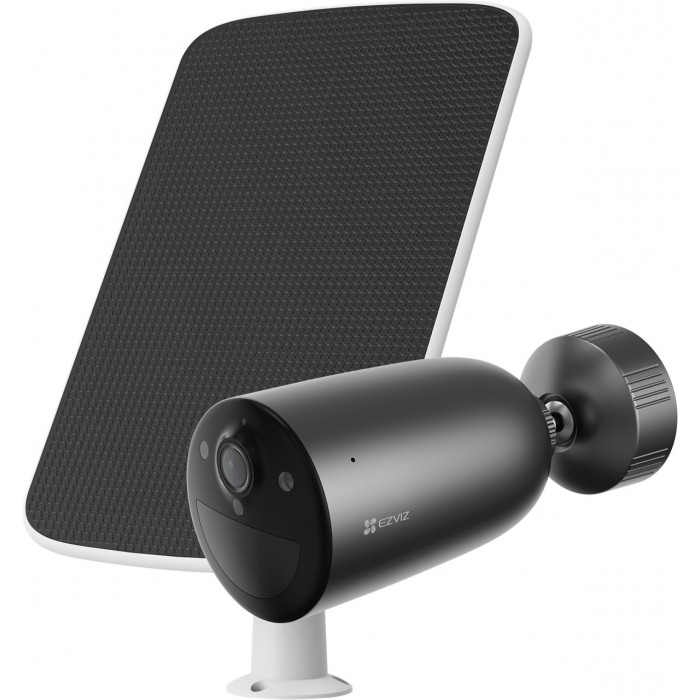

EZVIZ EB3 AOV Kit - Battery Bullet Camera with Solar Panel Kit, AI, Active Defense, 2K
| Camera | |
|---|---|
| Image Sensor | 1/2.8” 3-Megapixel Progressive Scan CMOS Sensor |
| Minimum Illumination | 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | Self-adaptive shutter |
| Lens | 2.8mm@ F1.6; 130° (Diagonal), 108° (Horizontal), 56° (Vertical) |
| Day & Night | IR-Cut filter with auto-switching |
| DNR | 3D DNR |
| Night Vision | IR Distance:15m, Color Night Vision Distance:15m |
| Video & Audio | |
| Max. Resolution | 2K (2304 × 1296) |
| Frame Rate | 15fps. Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Qusd-HD; Full HD; Hi-Def; Standard adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 1.5 Mbps |
| Network | |
| Bluetooth | Supports |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n, 802.11ax |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | WPA-PSK/WPA2-PSK, WPA3-Personal |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps, 11ax: 114Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Minimum Network Requirement | 4Mbps |
| Function | |
| Smart Alarm | AI-Powered Human Shape Detection, AI-Powered Vehicle Shape Detection |
| Two-way Talk | Supports |
| General Function | Anti-Flicker, Heart Beat, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD card (max. 512 GB) |
| Cloud Storage | EZVIZ CloudPlay storage (Subscription required) |
| General | |
| Operating Conditions | -20 °C to 50 °C (-4 °F to 122 °F ), humidity 95% or less (Non-condensing) |
| IP Grade | IP65 |
| Power Supply | DC 5 V / 2 A (Adapter needs to be purchased separately) |
| Battery Capacity | 5200 mAh |
| Power Consumption | Max. 10W |
| Product Dimensions | 153.3 × 62.95 × 62.95 mm (6.04 × 2.48 × 2.48 inch) |
| Packaging Dimensions | 103 × 103 × 186 mm (4.06 × 4.06 × 7.32 inch) |
| Weight | Net weight: 222.7 g (7.86 oz) With Package: 569 g (20.07 oz) |
| Specifications | |
| Model | CS-PSP5-R100-3M |
| Performance Parameter | |
| Power Voltage | 5.7 V |
| Power Current | 877 mA |
| Open Circuit Voltage | 6.9 V |
| Short Circuit Current | 0.92 A |
| Max. Power | 5 W |
| Interface | Type-C |
| Solar Cell Efficiency | 23.50% |
| Operating Conditions | -20 °C to 60 °C (-4 °F to 140 °F), Humidity 90% or less (non-condensing) |
| IP Grade | IP65 |
| Mechanical Data | |
| Solar Cell Type | Monocrystalline solar cells |
| Power Cable Length | 3 meter |
| Product Dimensions | 202.7 × 148 × 2.5 mm (7.98 × 5.83 × 0.10 inch) |
| Packaging Dimensions | 225 × 170 × 70 mm (8.86 × 6.69 × 2.76 inch) |
| Weight | 656 g (23.14 oz) |
| In the box | |
| In the box | - EB3 Camera |
| - Solar Panel 5W | |
| - Screw Base | |
| - Power Cable | |
| - Drill Template | |
| - Screw Kit × 2 | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / REACH / WEEE / RoHS |
