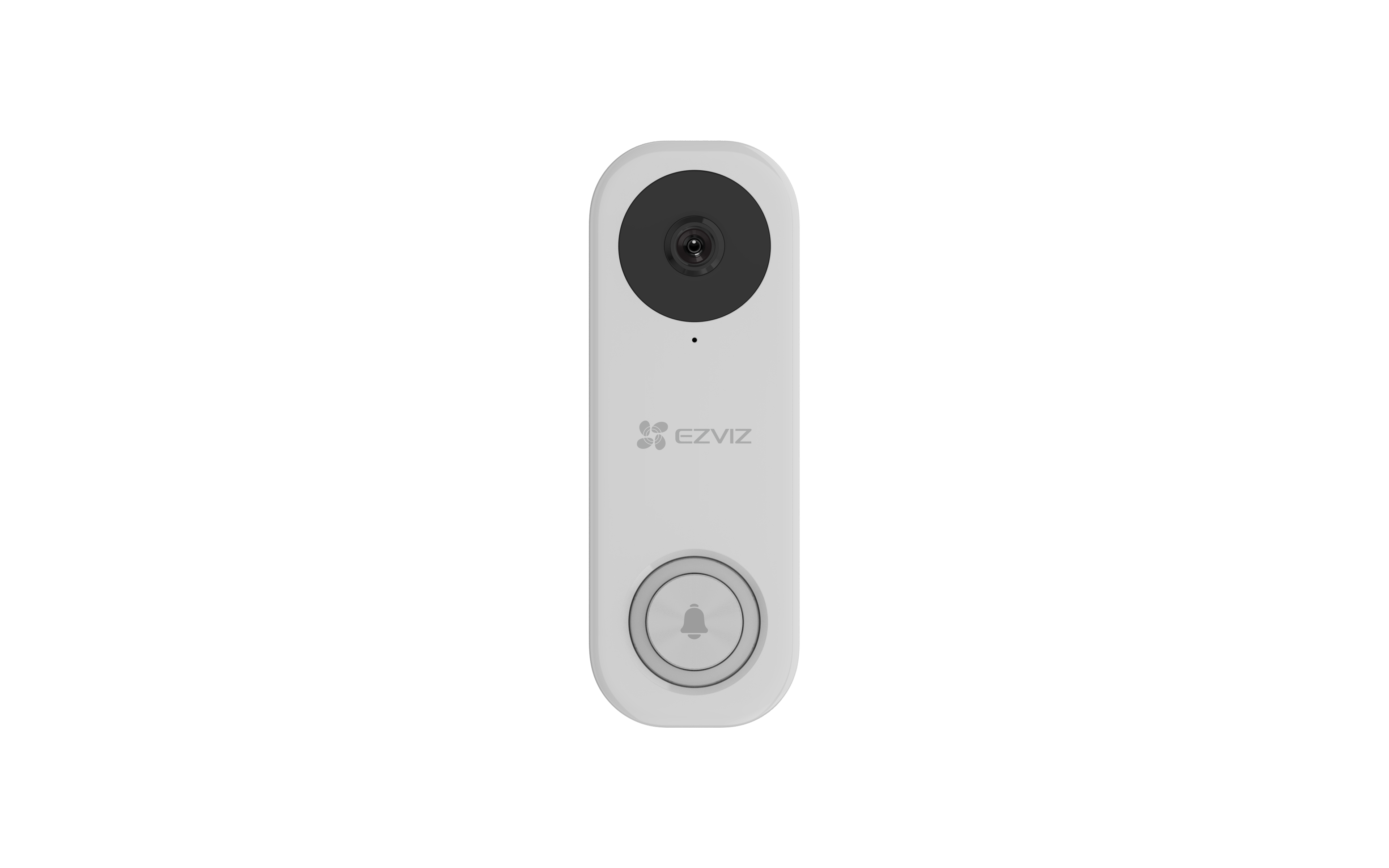

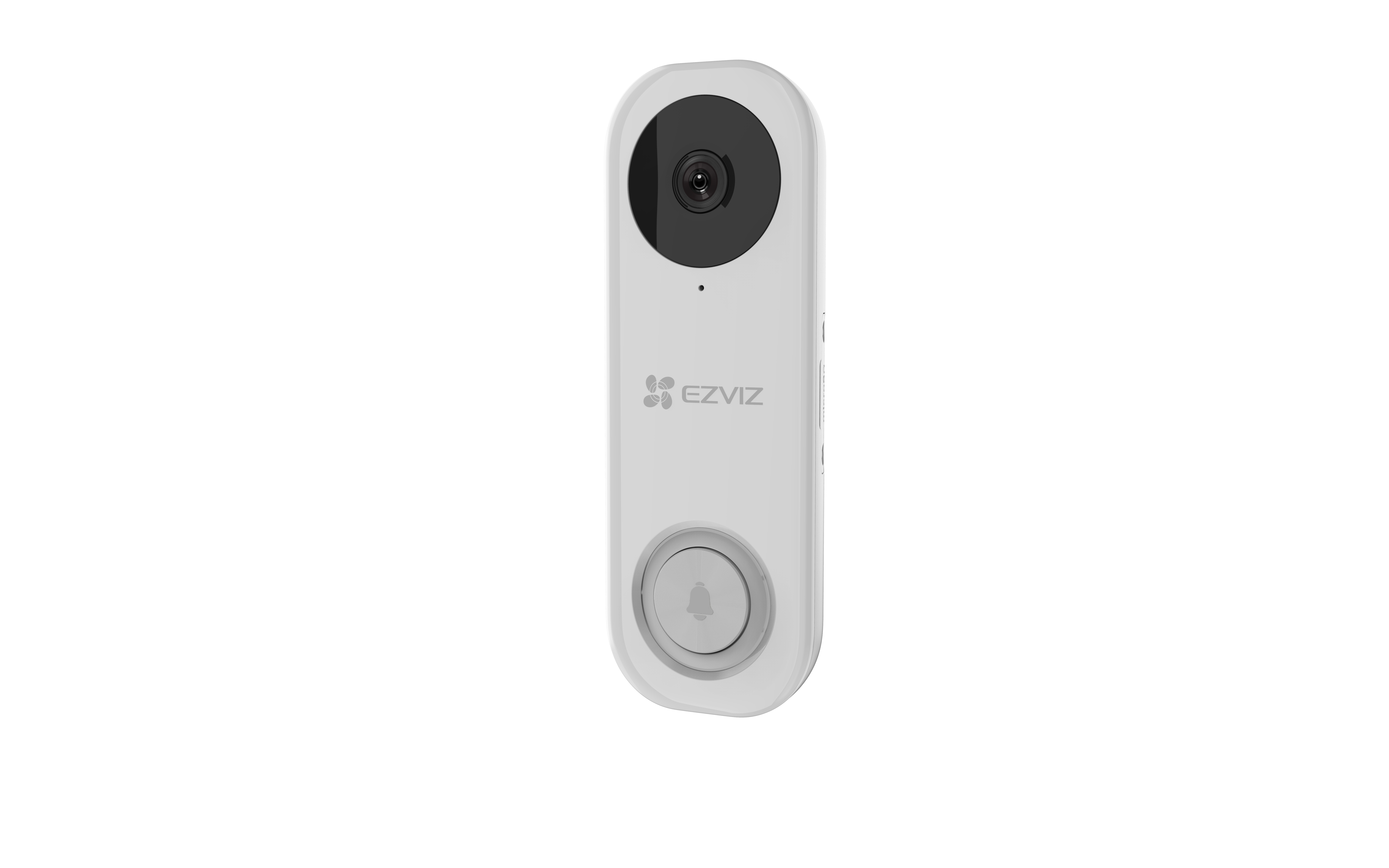

EZVIZ DB1 PRO - Wired WiFi Video Doorbell 5MP 2K+

List price: 166.00
121.94
(149.99 inc VAT) You save: €44.06 (27%)
EZVIZ-DB1PRO
In stock
+

Specifications
Specifications
Model CS-DB1-B0-1J5W2FR
Camera Parameters
Image Sensor 1/2.7" Progressive Scan CMOS (Supports low light sensitivity)

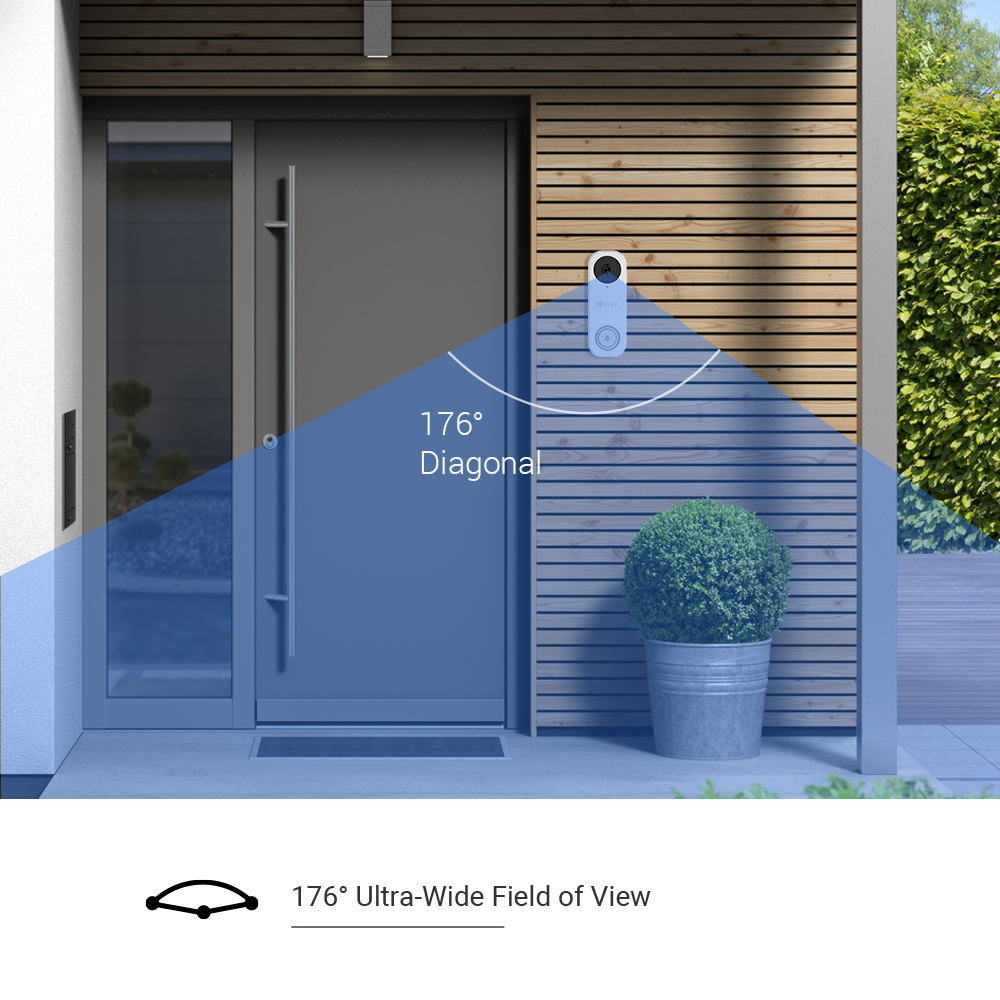

Lens 2.0 mm @ F2.0,view angle: 176° (Diagonal)
Day & Night IR-cut filter with auto-switching
Video Parameters
Max. Resolution 2544 × 1888
DNR 2D/3D DNR
WDR DWDR
Video Compression H.265 / H.264
Frame Rate Max: 15fps; Self-Adaptive during network transmission
Interface
Audio Input Built-in high-sensitivity microphone
Audio Output Built-in high-power speaker
Reset button Yes
Network Parameters
Protocol EZVIZ cloud proprietary protocol
Interface Protocol EZVIZ cloud proprietary protocol
Functions

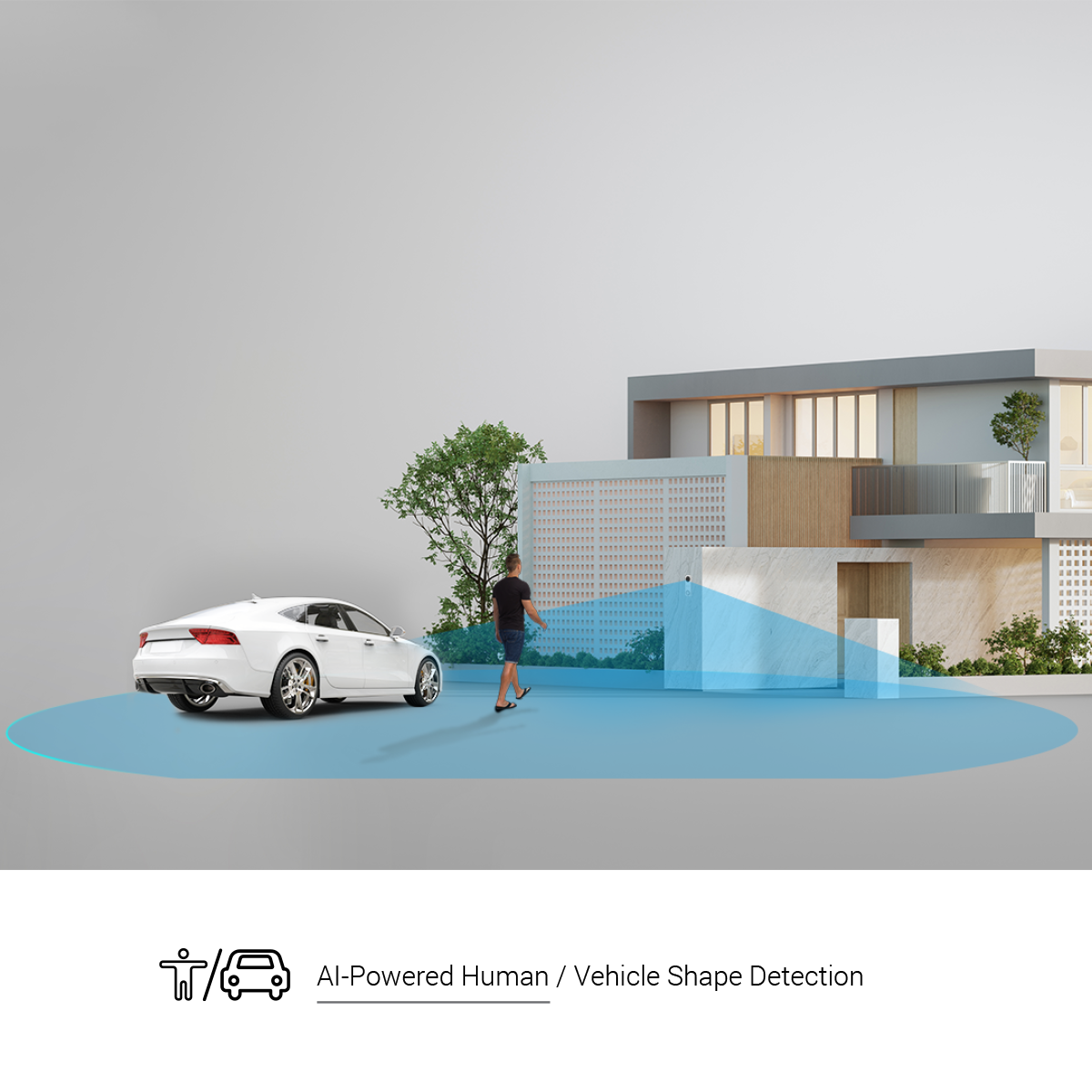

Intelligent Alarm AI-powered human / vehicle shape detection
Tamper Alarm Sound and light anti-dismantling alarm (supports sending alerts to the smartphone)

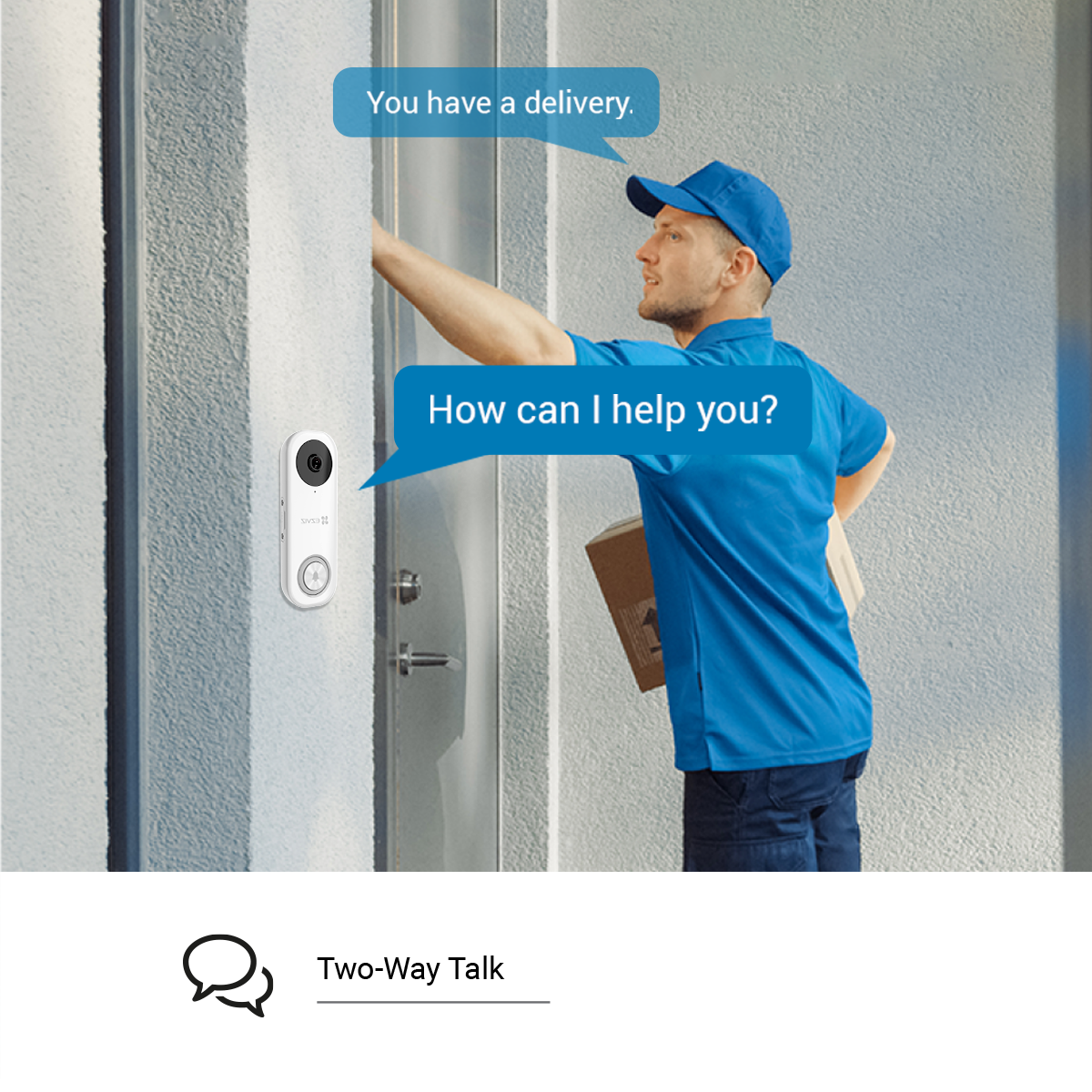

Video Intercom Long-distance two-way talk
Wi-Fi Parameters
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n

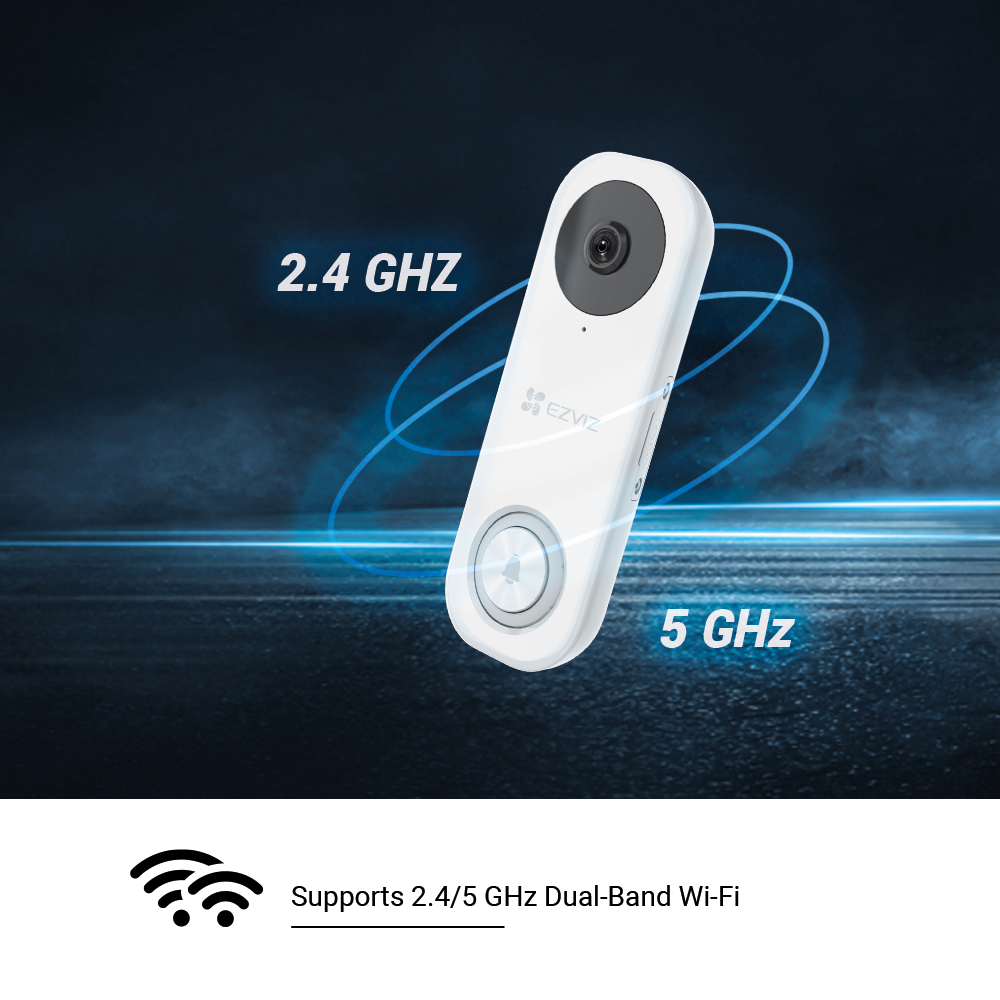

Frequency Range 2.4 GHz & 5 GHz
Channel Bandwidth Supports 20MHz, 40MHz
Data Security 64/128-bit WEP,WPA/WPA2,WPA-PSK/WPA2-PSK
Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
General
Operation Conditions -30°C to 60°C (-4°F to 122°F), Humidity 95% or less (non-condensing)

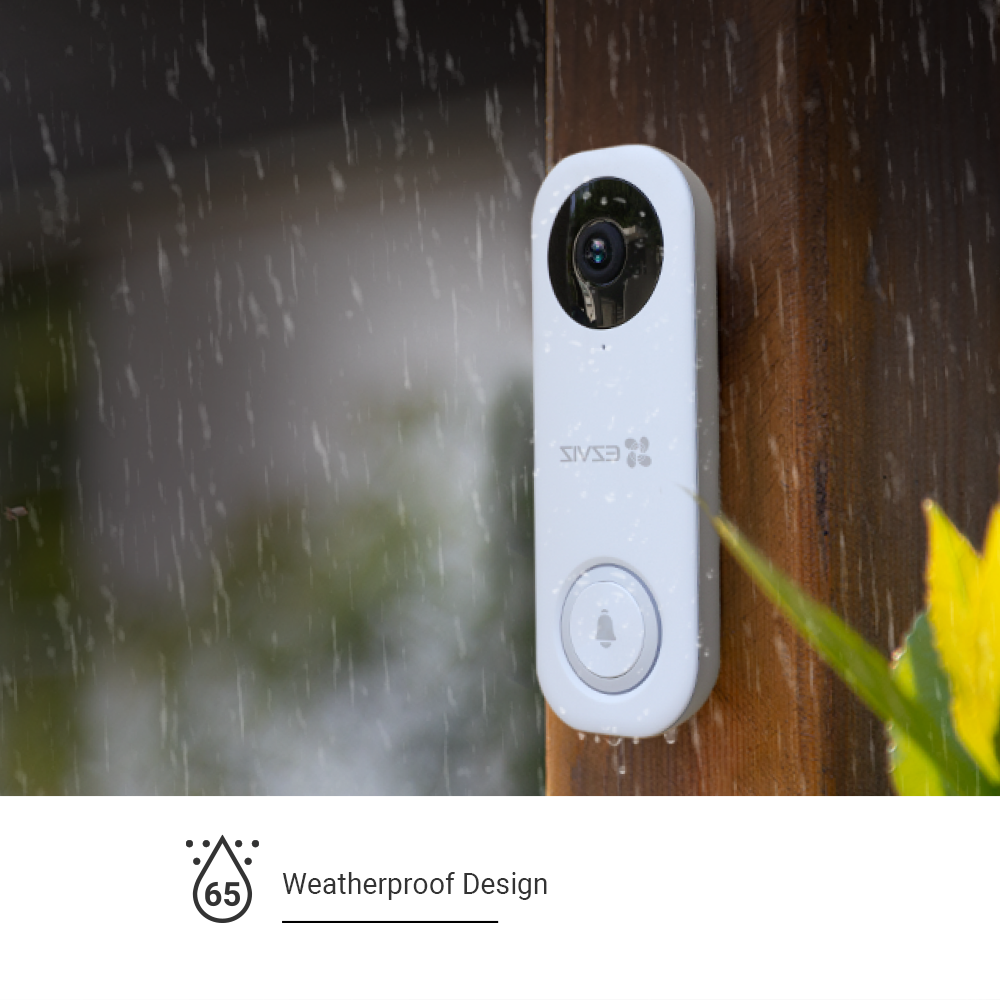

Ingress Protection Grade IP 65
Weight Doorbell: 105 g (3.7 oz), With Package: 440 g (15.52 oz)
Size 128.3 × 46.3 × 19.3 mm (5.1 × 1.8 × 0.8 inch)
Power Supply AC 16V~24V
Power Consumption Max. 2W
In the box
In the box - EZVIZ DB1 Pro Doorbell
- Mounting Plates (2)
- Mounting Screws (3)
- Plate Foam
- Power Kit
- Drill Bit
- Screwdriver
- Anchors (3)
- Wire connecters (4)
- Security Screw
- Fixing Screws (2)
- Wire Harness
- Fuse Wire
- U-shaped Wires (2)
- Regulatory Information (2)
- Quick Start Guide
Certifications
Certifications UL / CE / FCC / REACH / WEEE / RoHS / UKCA

Datasheet (DB1_pro_datasheet__1_.pdf, 3,373 Kb) [Download]
