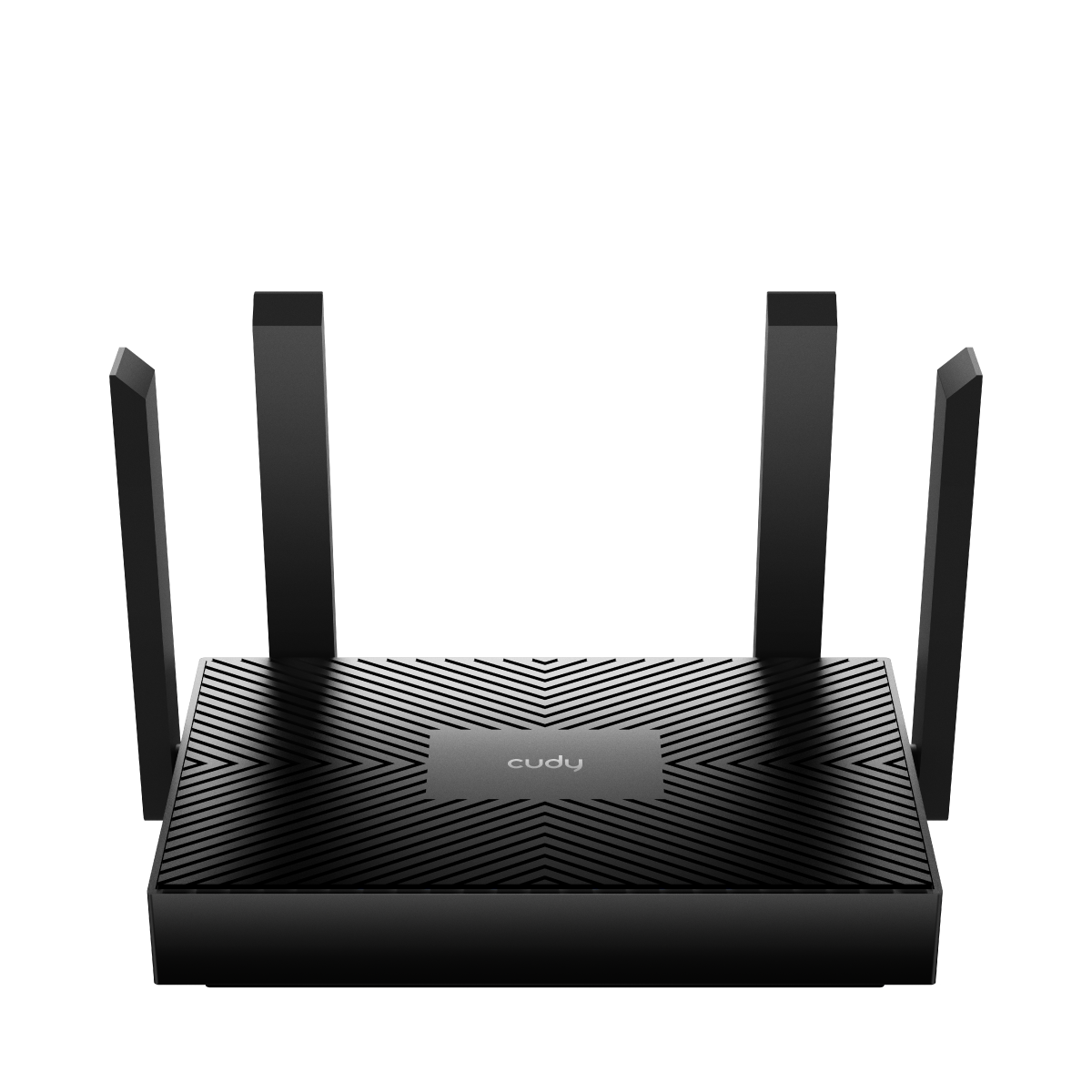

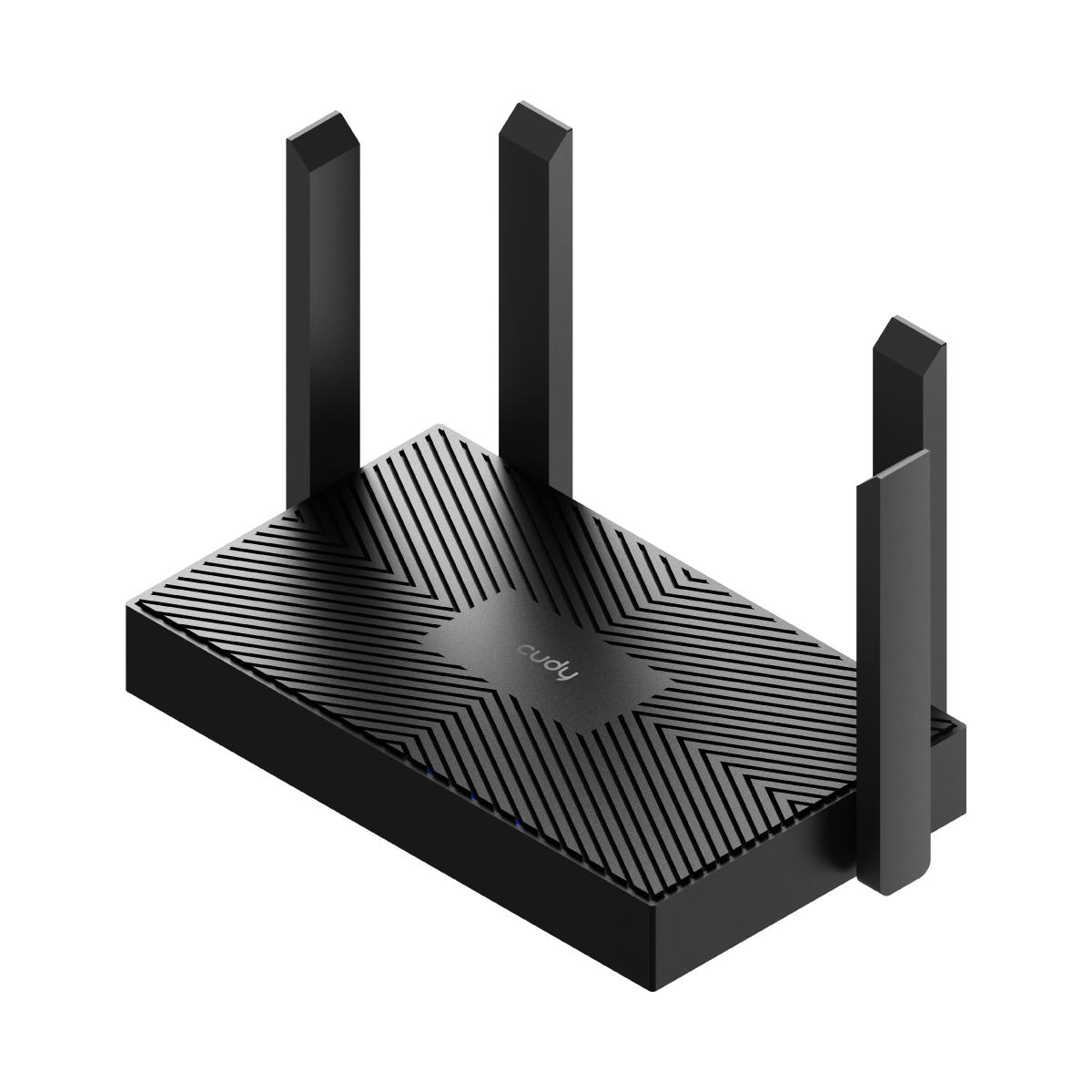

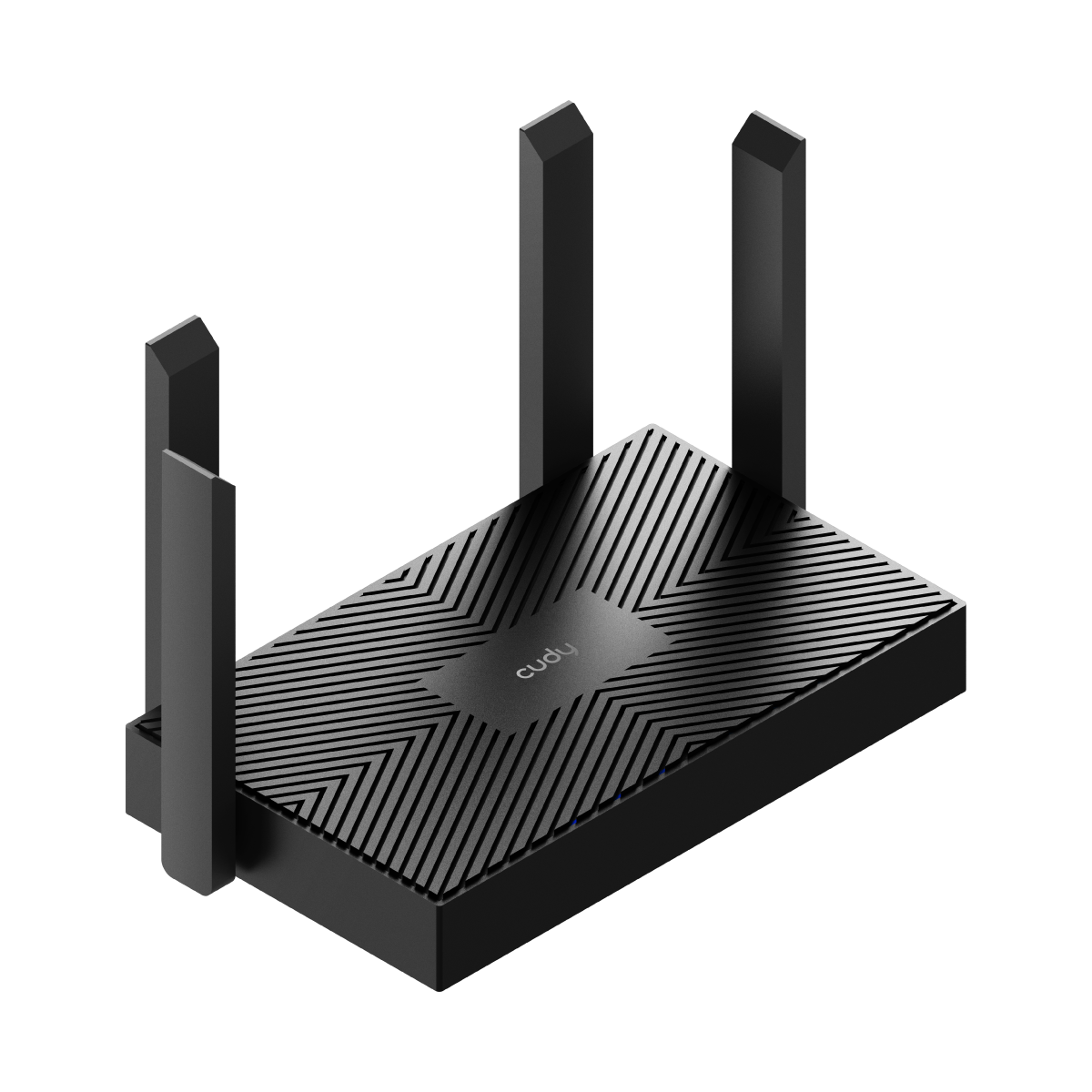

Cudy AX1500 Gigabit WiFi 6 Router WR1500
Features
A Gigabit WiFi 6 router with the efficiency features of OFDMA and MU-MIMO, suitable for larger capacity scenarios.
- 4-Stream Dual-Band Wi-Fi 6
- 1201 Mbps + 300 Mbps Wi-Fi 1
- 4× Gigabit Ethernet Ports
- 60 Connected Devices 2
- Covers 100m² (1,100 ft²) 3
- MU-MIMO, OFDMA, Beamforming
Key Specification
| Model Version | WR1500 1.0 | |
|---|---|---|
| CPU | Chipset | RTL8197H |
| CPU Details | 1 GHz CPU | |
| Memory/Storage | Flash/ROM | 16 MB (128 Mbit) NOR |
| DDR/RAM | 128 MB (1 Gbit) DDR2 | |
| Wireless | 5 GHz Wi-Fi Speed | 1201 Mbps |
| 2.4 GHz Wi-Fi Speed | 300 Mbps | |
| 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| Wi-Fi Antennas | 4× Fixed | |
| FEM or PA/LNA |
|
|
| Beamforming | True | |
| Range Performance | Max: 170 m (558 ft) Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions. |
|
| Wall Performance | Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') |
|

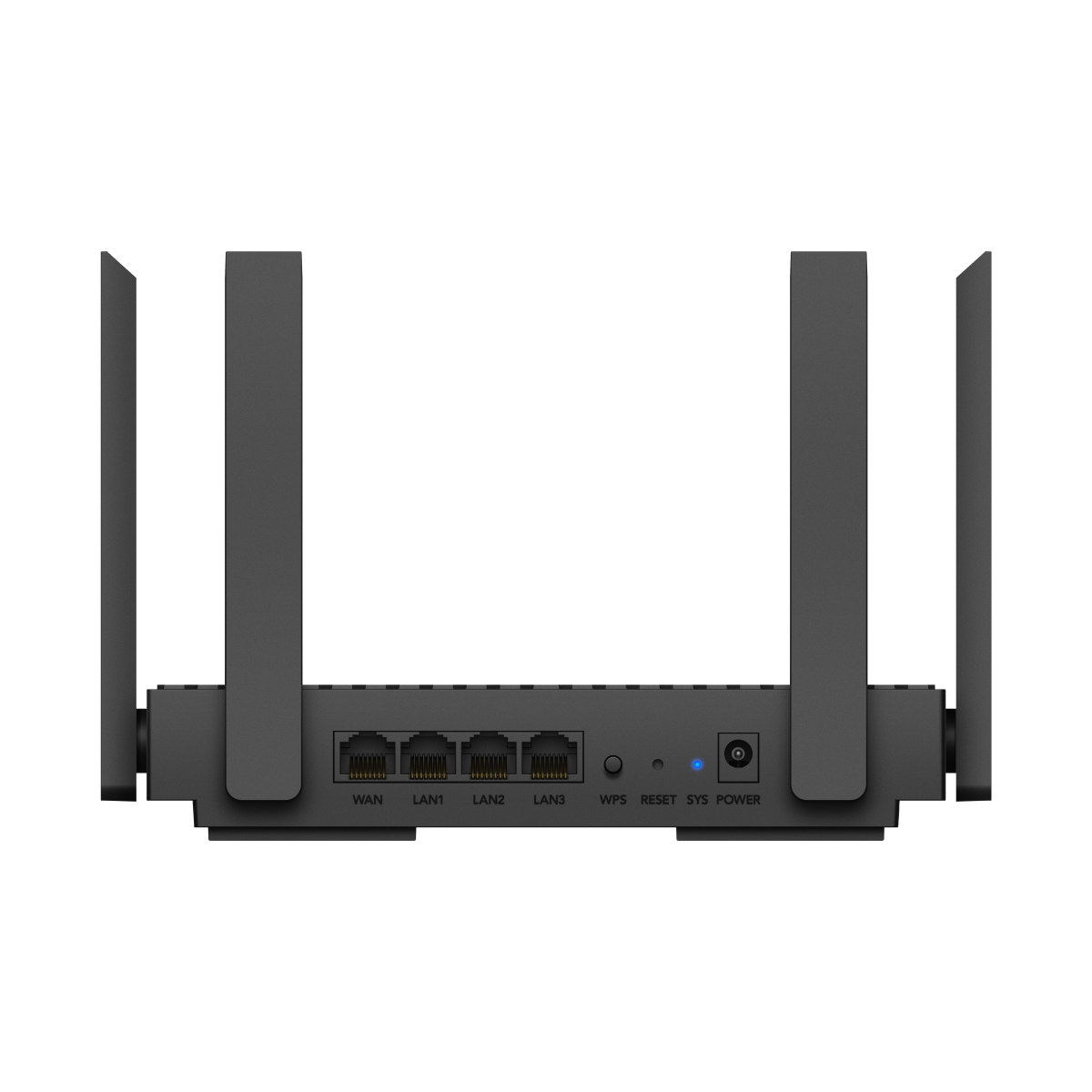

| Interfaces | Gigabit RJ45 Ports | 4 |
| Ethernet Notes | 1× WAN port, the rest are LAN ports | |
| LED | System | |
| Physical Buttons |
|
|
| Power Input | DC Jack | |
| Power | Power Methods | DC |
| DC | 12V 1A | |
| Power Adapter | Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC |
|
| Max Power Consumption (W) | 10W | |
| Reliability | Environment |
|
| Certifications | FCC, CE | |
| Mechanical | Installation |
|
| Dimension | 183.3×109×35 mm 7.22×4.29×1.38 inches |
|
| Product Weight |
|
|
| Package Content |
|
|
