Save 14%

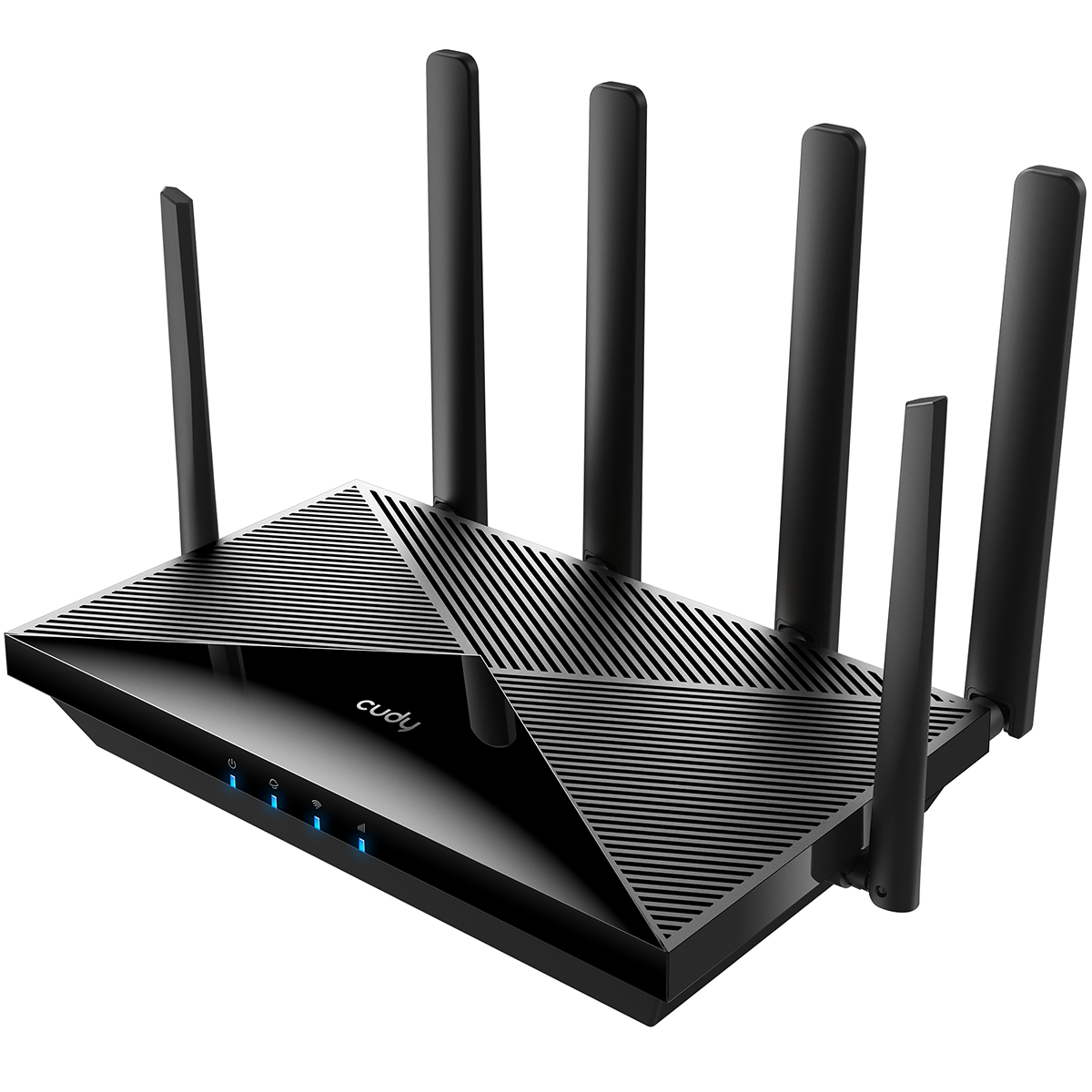

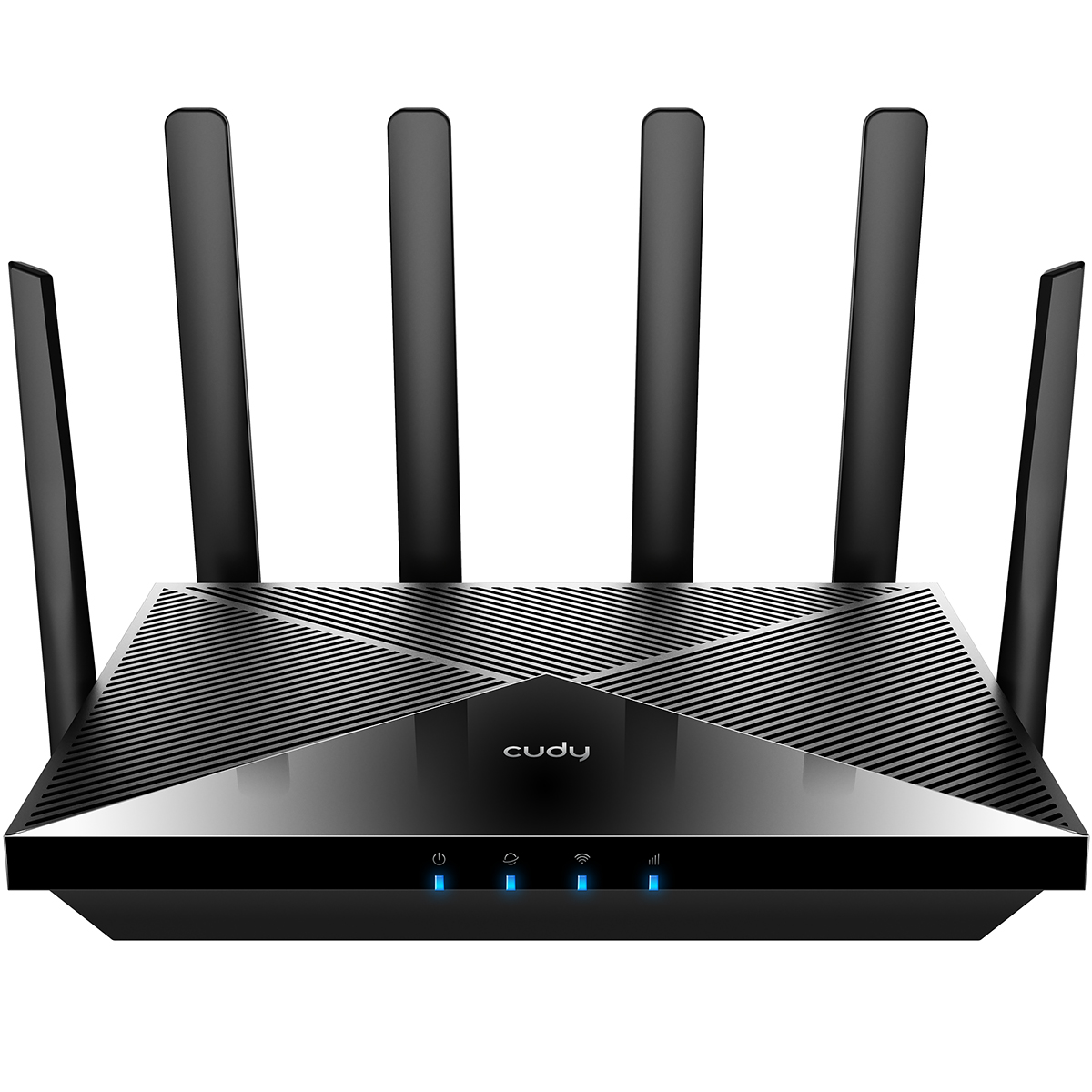

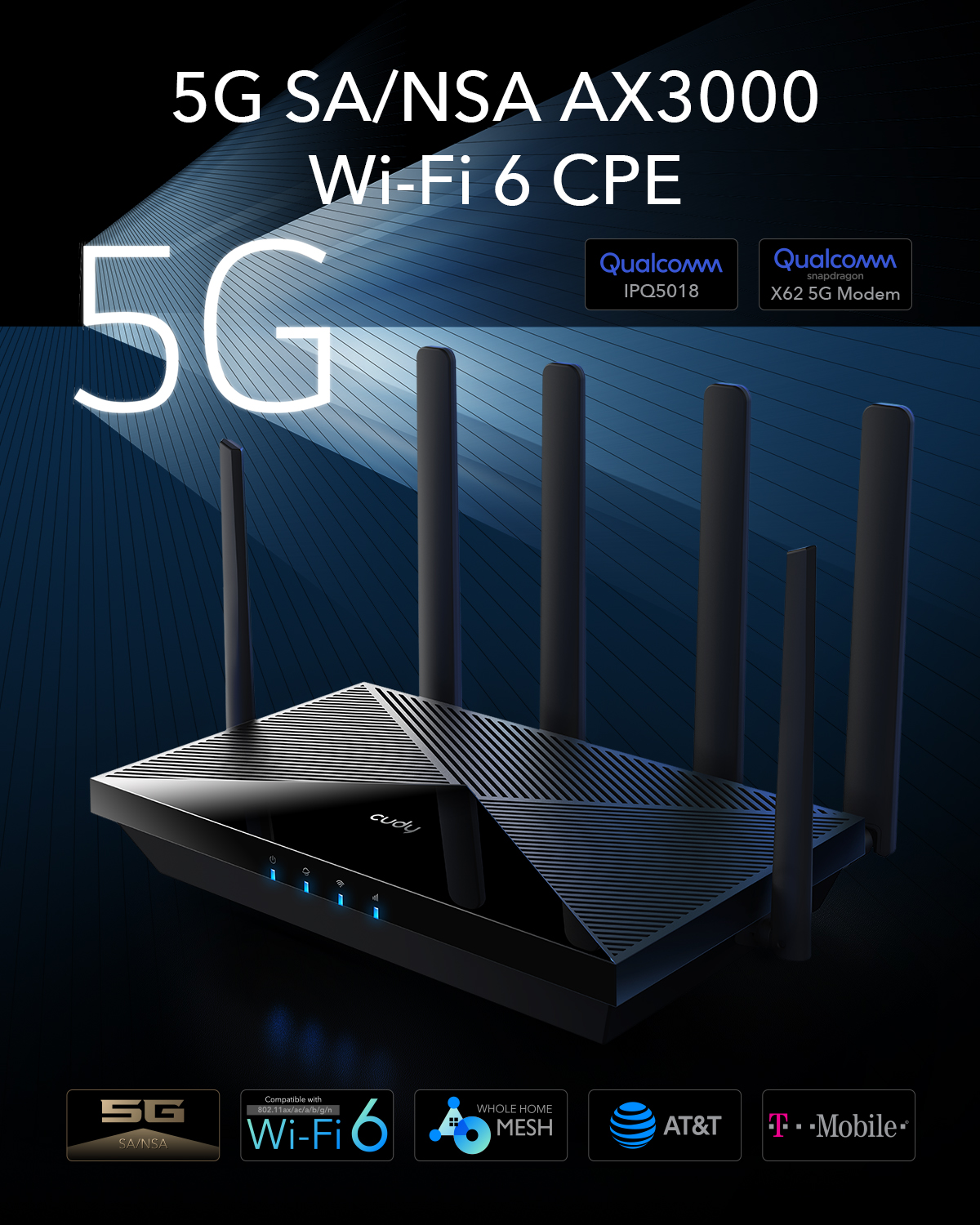

Cudy 5G SA/NSA AX3000 Wi-Fi 6 Router with Mesh / Dual Sim / WAN Failover
● 5G Rel. 16 (Sub-6) up to 3.4 Gbps DL
● AX3000 Dual-Band Wi-Fi 6
● Qualcomm Dual-Core CPU
● 4× Gigabit Ethernet Ports
● 4× Detachable Cellular Antennas, 2× Fixed WiFi Antennas
● Dual Nano SIM slots
● WAN Failover, Dual SIM Failover
● DNS over Cloudflare/Google/Quad9
● ZeroTier/WireGuard/OpenVPN/IPSec/L2TP/PPTP VPN
Specification:
| Model | AX3000 Wi-Fi 6 5G SA/NSA Router | |||
| Data Speed | Wi-Fi | 2.4GHz (802.11ax/n/g/b, MIMO 574Mbps) | ||
| 5GHz (802.11ax/ac/n/a, MIMO 2402Mbps) | ||||
|
5G Module (RM520N) Sub-6 GHz |
5G SA Sub-6: Max. 2.4 Gbps (DL)/900 Mbps (UL) | |||
| 5G NSA Sub-6: Max. 3.4 Gbps (DL)/550 Mbps (UL) | ||||
| LTE-FDD: Max. 1.6 Gbps(DL)/200 Mbps (UL) | ||||
| WCDMA: Max. 42 Mbps (DL)/5.76 Mbps (UL) | ||||
|
5G Module (RM510Q) Sub-6 GHz/mmWave EOL |
5G SA Sub-6: Max. 2.1 Gbps (DL)/450 Mbps (UL) | |||
| 5G NSA Sub-6: Max. 3.3 Gbps (DL)/650 Mbps (UL) | ||||
| 5G NSA mmWave: Max.4.5 Gbps (DL)/2.9 Gbps (UL) | ||||
| LTE-FDD: Max. 2 Gbps(DL)/200 Mbps (UL) | ||||
| WCDMA: Max. 42 Mbps (DL)/5.76 Mbps (UL) | ||||
|
5G Module (RM505Q) Sub-6 GHz EOL |
5G SA Sub-6: Max. 2.1 Gbps (DL)/450 Mbps (UL) | |||
| 5G NSA Sub-6: Max. 2.5 Gbps (DL)/650Mbps (UL) | ||||
| LTE-FDD: Max. 1G bps(DL)/200Mbps (UL) | ||||
| WCDMA: Max. 42 Mbps (DL)/5.76 Mbps (UL) | ||||
| Hardware | CPU: Qualcomm 1 GHz Dual Core CPU | |||
| 4G Module:: RM520N (Qualcomm X62) EOL:: Quectel RM510Q or RM505Q (Qualcomm X55) | ||||
| DRAM: DDR3 256 MB (2Gbit) | ||||
| Flash: Nand 128 MB (1Gbit) | ||||

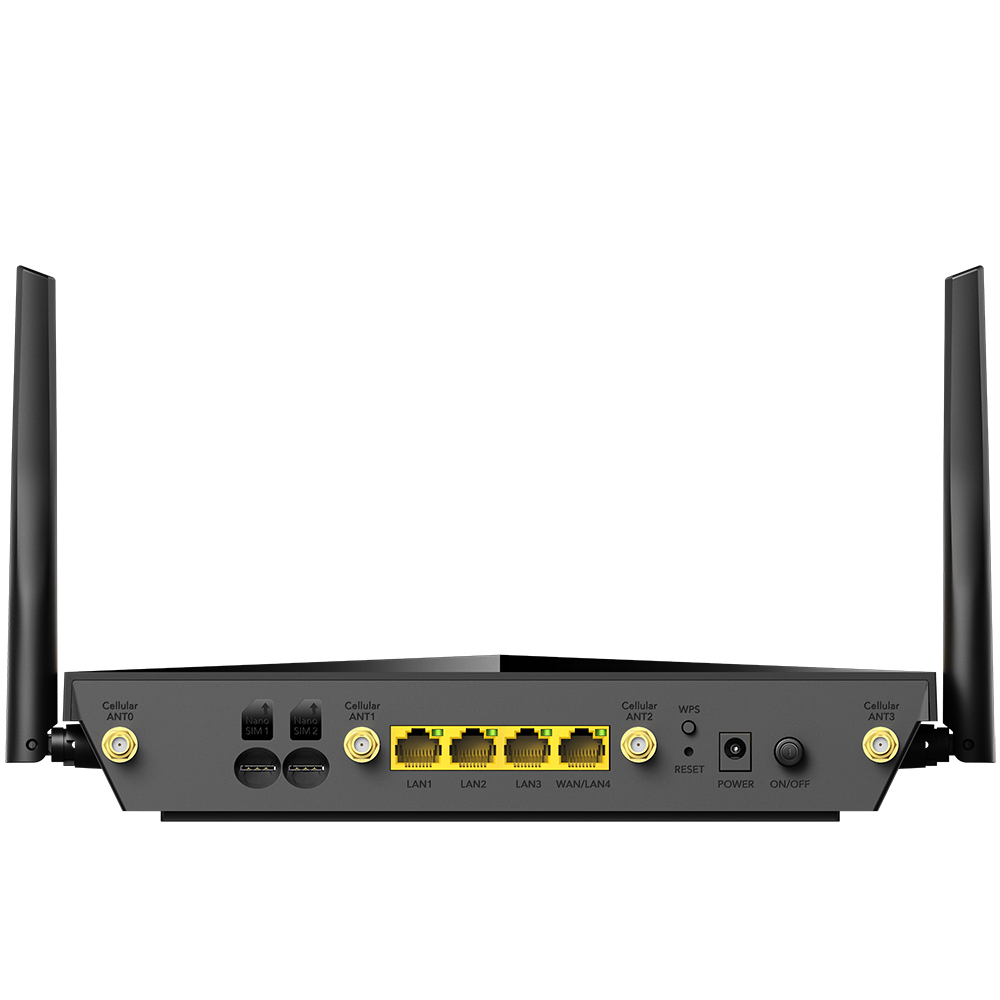

| 4 x GbE RJ45: 1 GbE WAN/LAN + 3 GbE LAN | ||||
| 2 x SIM Slots (Nano) | ||||
| 1 x WPS Button | ||||
| 1 x Reset Button | ||||
|
2 x Fixed WiFi Antennas |
||||

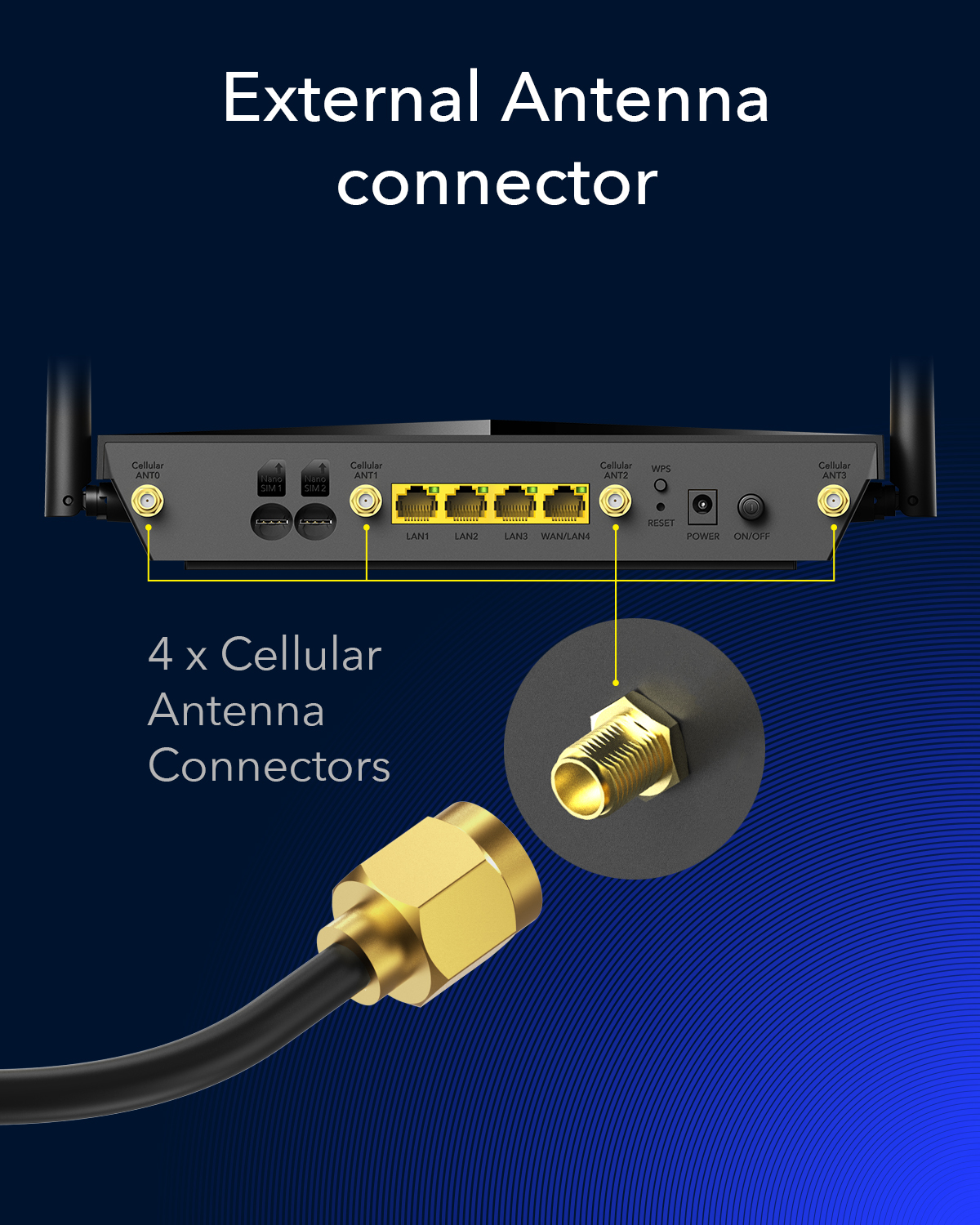

| 4 x Detachable Cellular Antennas | ||||
| LED indicators (Power, WiFi, Internet, Signal) | ||||
| Software | DHCP: Server, Client List, Address Reservation | |||
| NAT: Port Forwarding, Port Triggering, UPnP, DMZ | ||||
| Firewall: Mac Filter, IP Filter, Domain Filter | ||||
| DDNS: Compatible with 20 more DDNS providers | ||||
| VPN:PPTP/L2TP/OpenVPN/WireGuard/IPsec | ||||
| DNS over TLS: Cloudflare/Google | ||||
| Schedule: Schedule Reboot /Wi-Fi Schedule | ||||
| Internet Protocol version 4 or 6 (IPv4/IPv6) | ||||
| Quality of Service (QoS) | ||||
| TTL configuration(Extend/Spoof) | ||||
| Band Selection | ||||
| Physical | Product Dimension: 253x152.5x48.2mm (LxWxH) | |||
| Package Dimension: 415x265x90mm (LxWxH) | ||||
| Power | AC Power Adapter: Input: 90~260V Output: 12V, 2.5A | |||
| DC input (12V-2.5A) Barrel Plug | ||||
| SMS | Send Message | |||
| Receive Message | ||||
| Environmental | Operation Temperature: 0° C to +45° C | |||
| Storage Temperature: -40° C to +70° C | ||||
| Relative Humidity: 5% to 95% Non-Cond | ||||
| Package Contents | 5G WiFi6 Router | |||
| Power Adapter | ||||
| RJ45 Ethernet Cable | ||||
| Quick Installation Guide | ||||
| System Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,NetWare, UNIX or Linux, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Subscription with an internet service provider (for internet access) | |||
