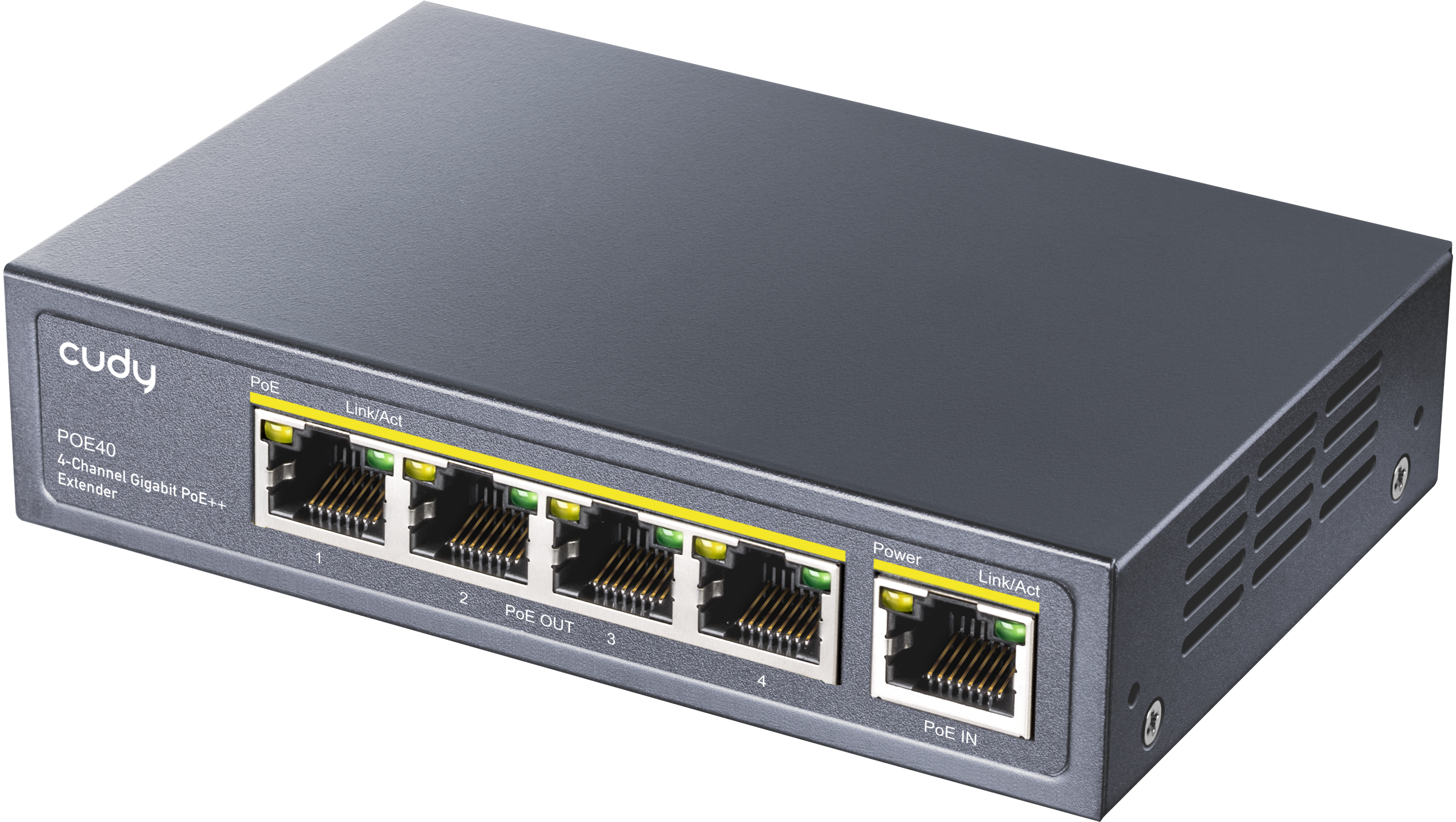

Cudy 4 Port Gigabit PoE+ Extender

List price: 79.00
(69.00 inc VAT) You save: €22.90 (29%)
In stock

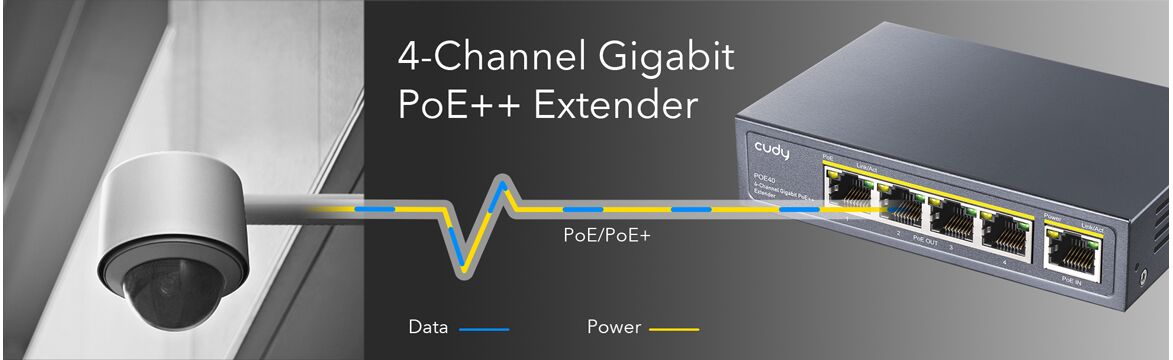

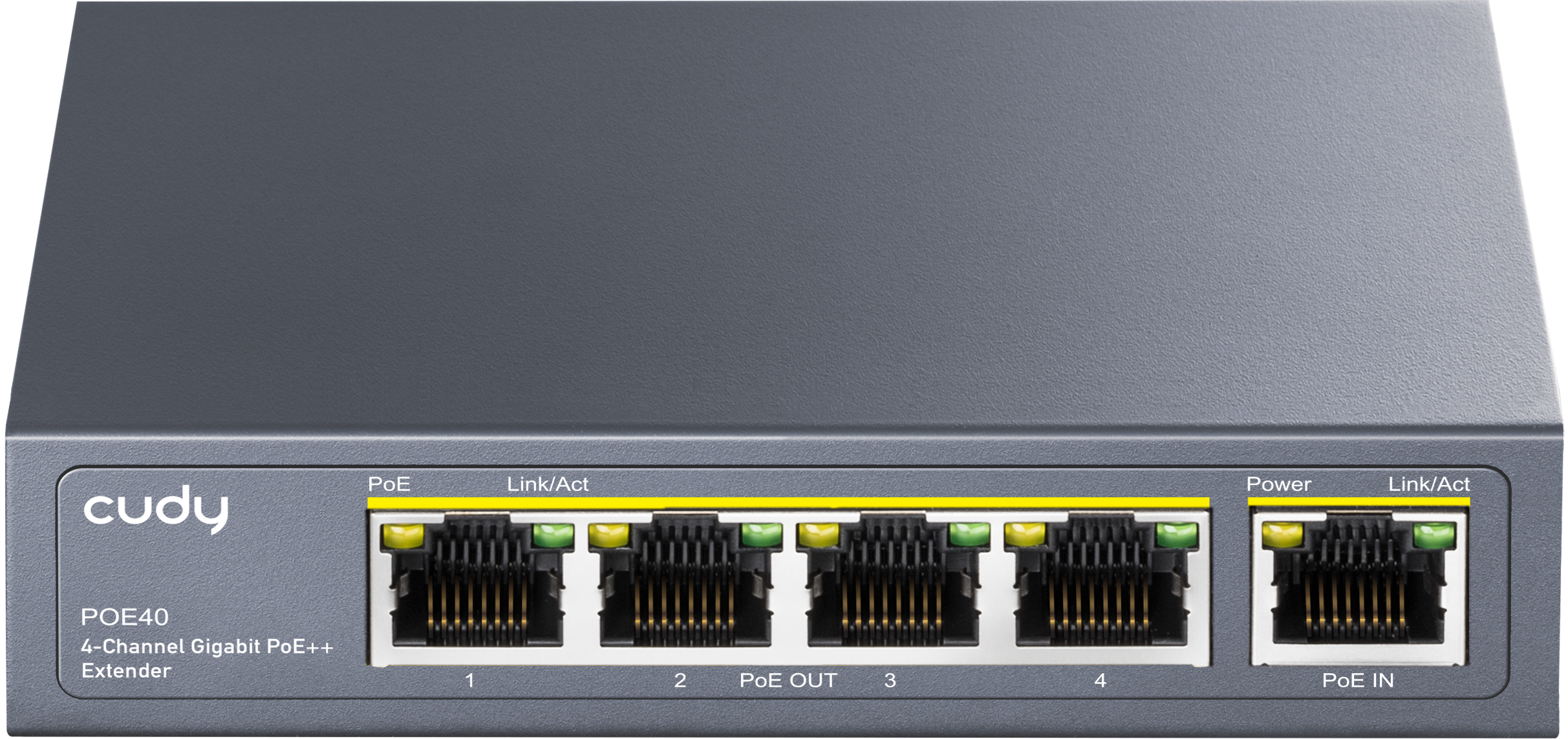

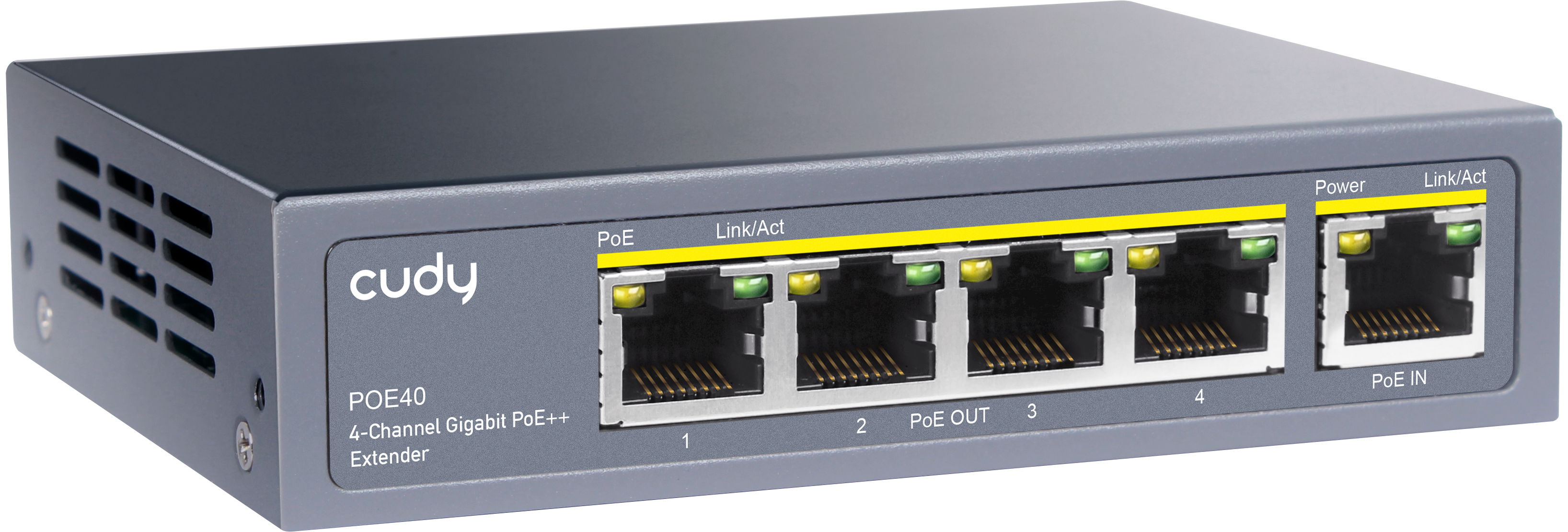

Cudy 4 Port Gigabit PoE+ Extender

● IEEE802.3af/802.3at/802.3bt compliant

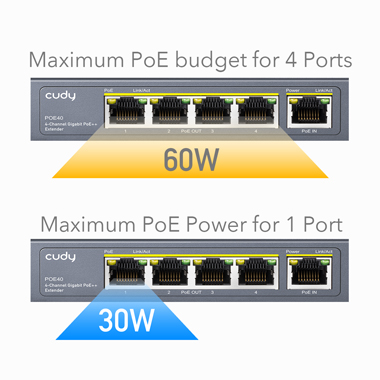

● One gigabit PoE input port (60 watts max)
● Four gigabit PoE output ports (30 watts max per port)

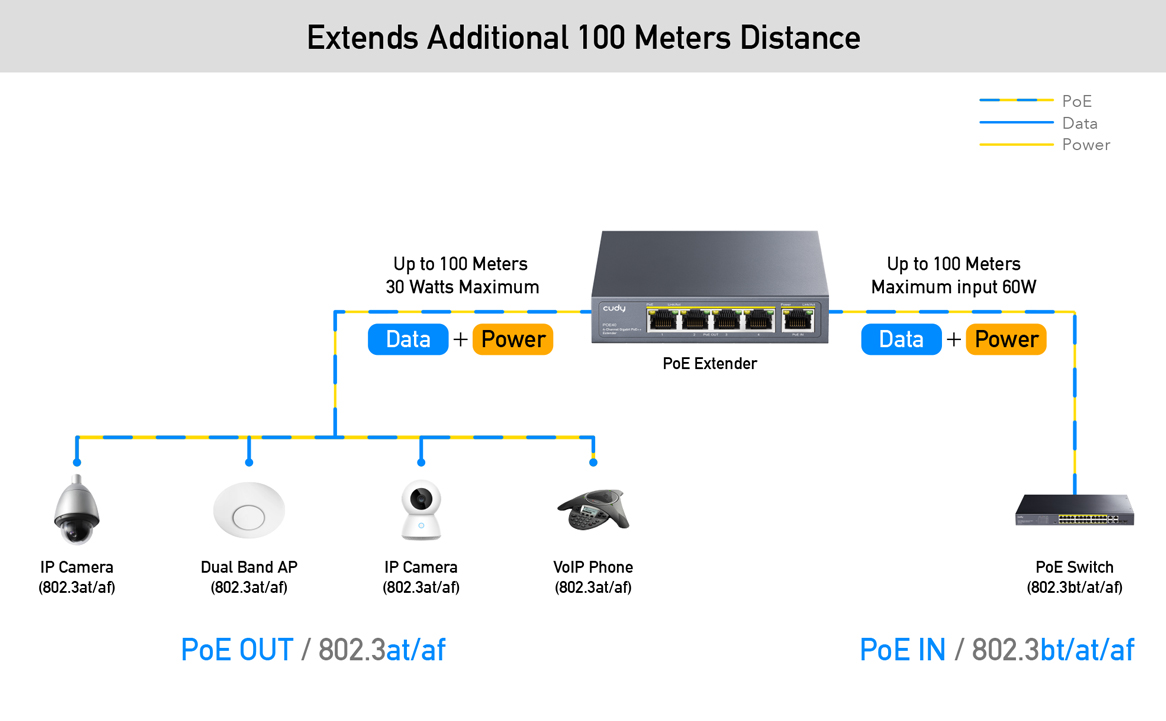

● Extends PoE signal for additional 100 meters
● No additional power supply required
● Automatically detects PoE and Non-PoE equipments

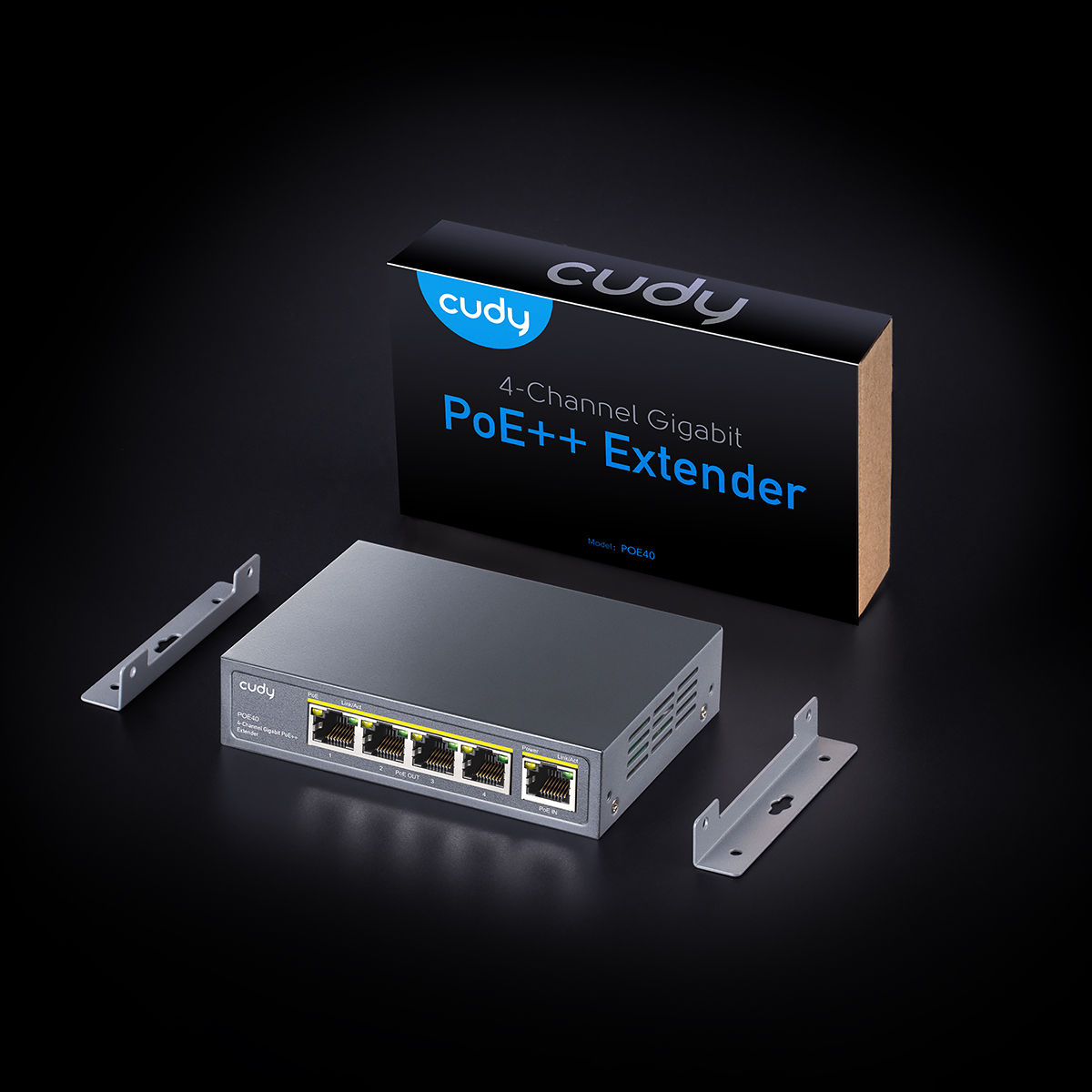

● Desktop or wall-mount installation

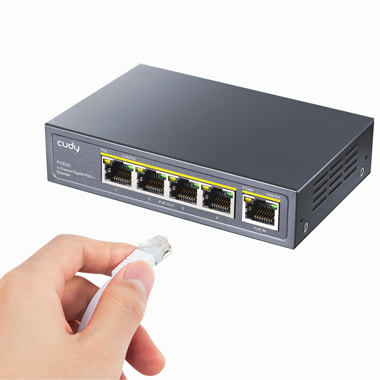

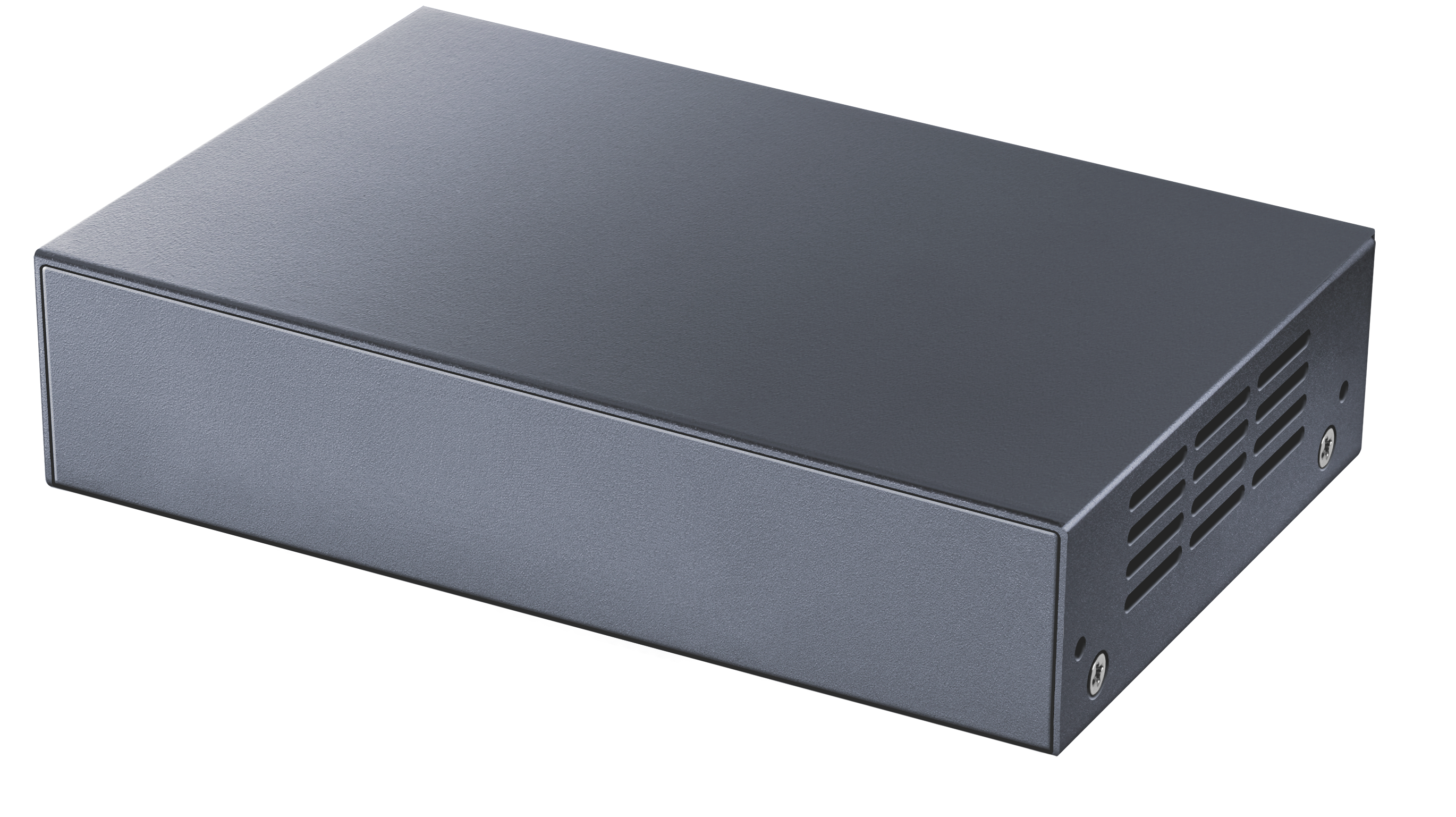

● Metal case, plug and play


Model POE40
No. of channels 1(PoE IN) into 4(PoE OUT)
Pass Through Data Rates 10/100/1000 Mbps half/full duplex
Power over Ethernet input Pin Assignment and Polarity: Both 1/2 (-), 3/6 (+) and 4/5 (+), 7/8 (-)
Power over Ethernet Output

Pin Assignment and Polarity: 1/2 (+), 3/6 (-)

Output Power: up to 12W for 4 PSE or 30W for 2 PSE

Indicators LED indicators are located on the RJ45 connector

Power indicator: PoE enabled

Powered success:Power

Network indicator: Link/Act

Connectors Shielded RJ-45, EIA 568A and 568B
Network cables Shielded category 5E (or higher)
Dimensions 119mm x 85mm x 28mm
Mounting Wall of shelf
Environment Indoor
Environmental Conditions Operating Ambient Temperature: 0 to 45℃

Operating Humidity: Maximum 90%, Non-condensing

Storage Temperature:-40 to 70℃

Storage Humidity: Maximum 95%, Non-condensing

Regulatory Compliance IEEE 802.3af (15.4W)

IEEE 802.3at (30W)

IEEE802.3at 4Pairs(60W)


Datasheet (PoE40_V1.1_Datasheet.pdf, 275 Kb) [Download]
