● 24 x 10/100M PoE+ ports
● 2 x Gigabit Uplink port
● 1 x 1.25Gbps SFP slot

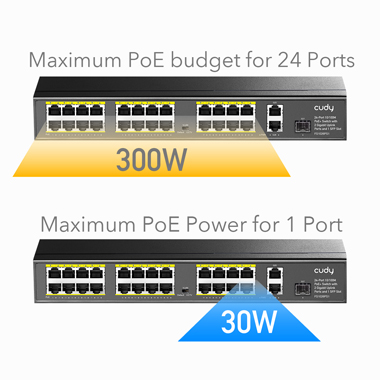

● 300 Watts PoE power budget
● IEEE 802.3at / IEEE 802.3af standard compliant

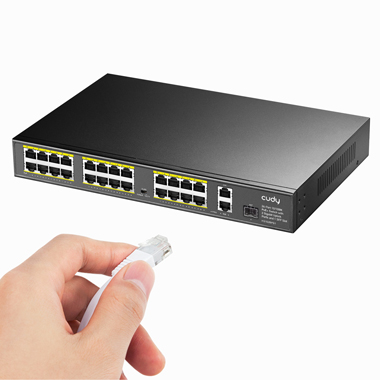

● Plug&play, simple setup with no configuration needed
Specifications:
|
Mode |
FS1026PS1 |
||
|
Connector Type |

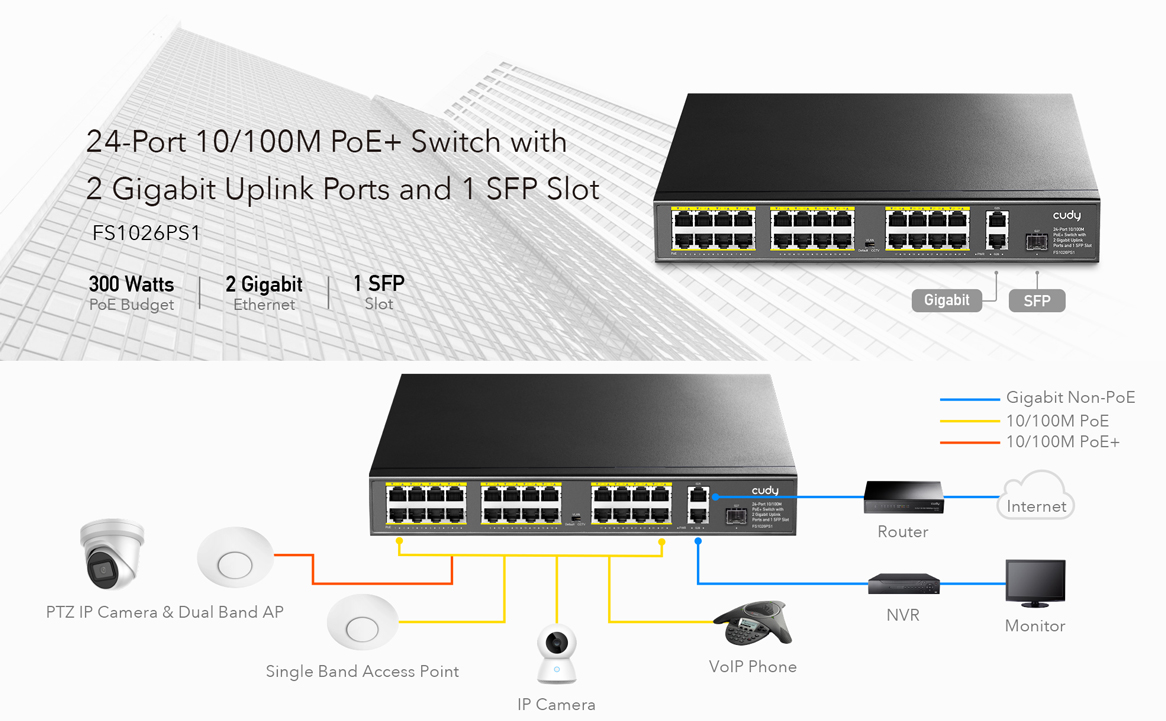

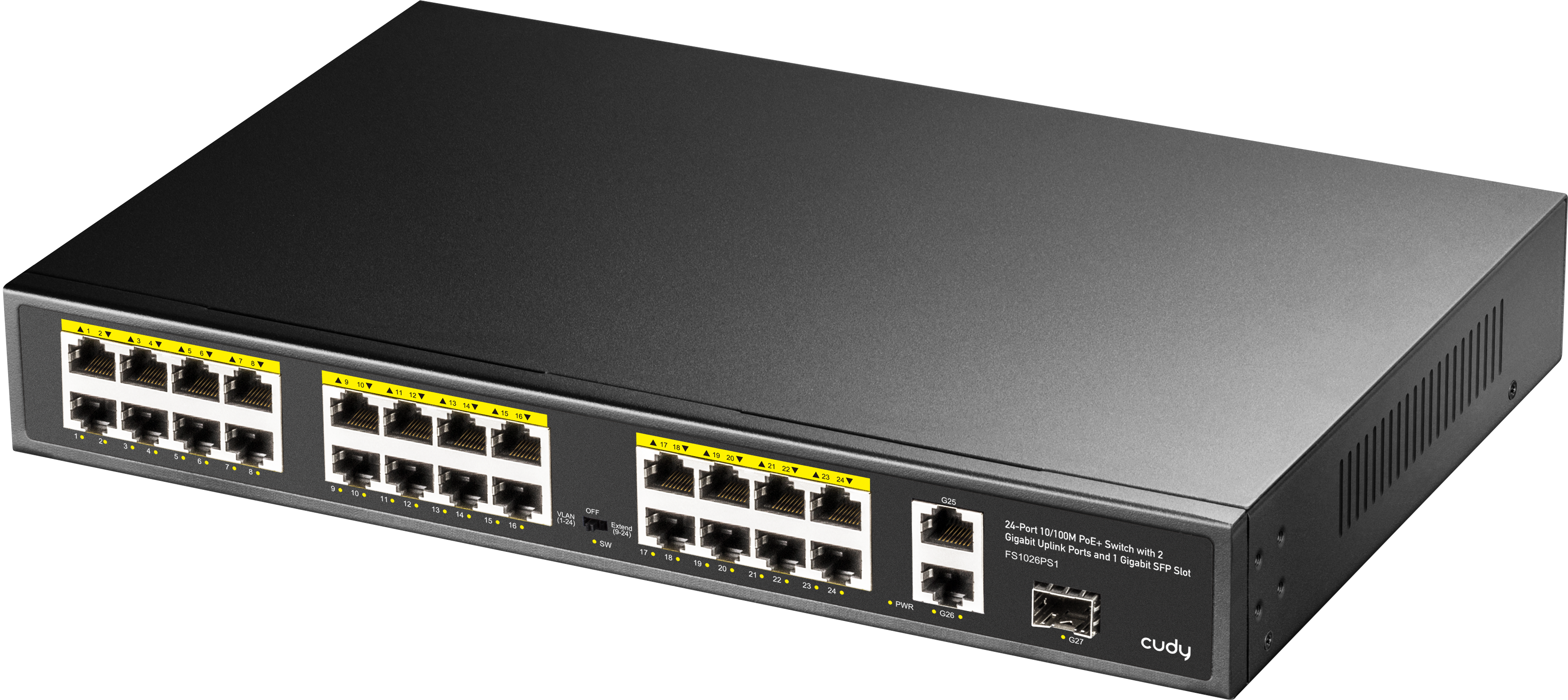

24-Port 10/100M PoE+ Switch with 2 Gigabit Uplink Ports and 1 SFP Slot | ||
|
Network Protocols |
IEEE802.3 IEEE802.3u IEEE802.3ab IEEE802.3x IEEE802.3z |
||
|
PoE Parameters |
PoE Standard: IEEE802.3af /IEEE802.3at |
||
|
Max each port: 15.4W ( IEEE 802.3af ) Max each port：30W ( IEEE 802.3at ) |
|||
|
PoE compatibility: IEEE 802.3af/at adaptive |
|||
|
PoE port output: DC48-55V |
|||
|
Power Pin : Power over spare pairs 1/2(+) , 3/6 (-) |
|||
|
Network Media |

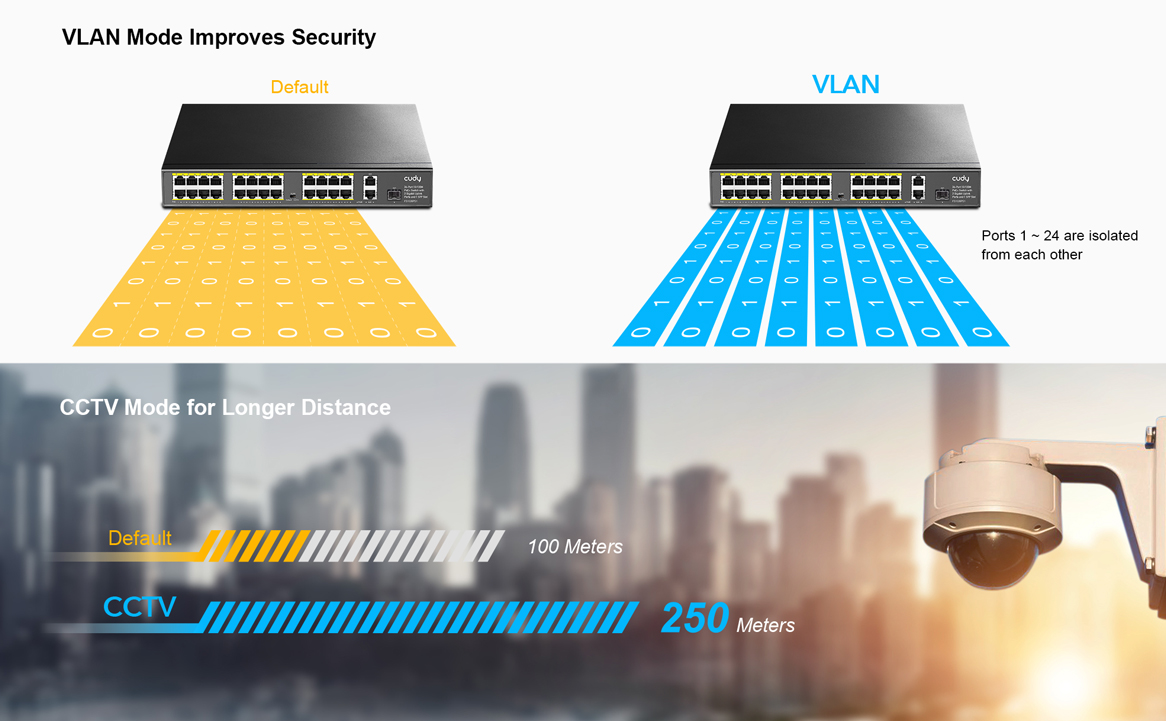

10BASE-T: Cat 6 UTP(≤250 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) 1000BASE-TX: Cat5 or more UTP (≤100 meter) |
||
|
Optical |
MultiMode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km |
||
|
Performance Specification |
Bandwidth: 10.8Gbps |
||
|
MAC Address: 2K |
|||
|
Packet Buffer Memory: 1M |
|||
|
Packet Forwarding Rate: 8Mpps |
|||
|
Forwarding Mode: Store-And-Forward |
|||
|
Power Supply |

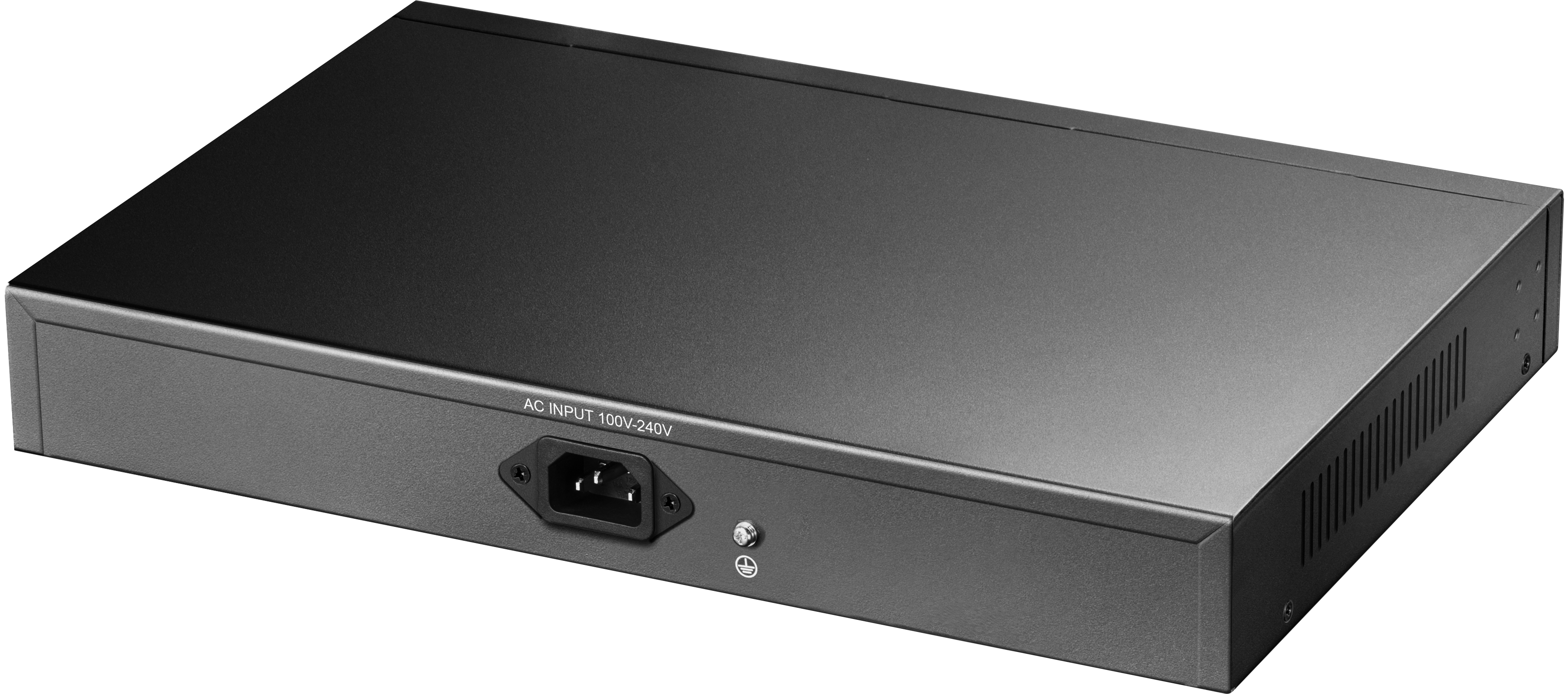

Product Input Voltage: AC100-240V 50/60Hz Power Budget: 300W |
||
|

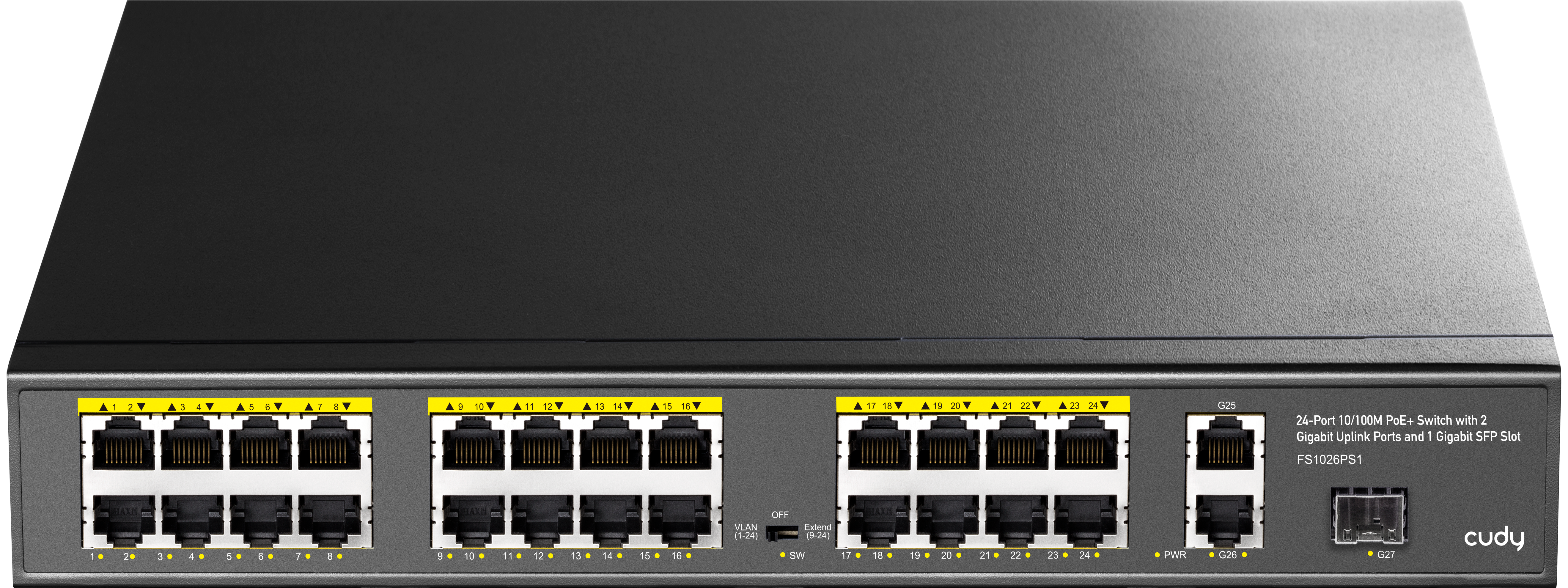

Led indicator |
PWR |
Power supply indicator (Red) |
Lighting：Powered Un-Light：No Power |
|
Led indicator |
SW |
DIP indicator (Green) |
OFF: Normal |
|
1-27 |
RJ-45 ACT indicator (Green) |
Lighting：Connecting |
|
|
Working Environment |
Operating Temperature: -20℃ ~ 50℃; |
||
|
Storage Temperature: -40℃ ~ 85℃; |
|||
|
Operating Humidity: Max 90%, non-condensing |
|||
|
Storage Humidity: Max 95%, non-condensing |
|||
|
Working Height: Max to 10,000 feet (3,000 meters） |
|||
|
Storage Height: Max to 10,000 feet (3,000 meters) |
|||
|
Physical Parameter |
Product Dimension (L*W*H): 320mm*210mm*46mm |
||
|
Package Dimension (L*W*H): 375mm*270mm*85mm |
|||
|
N.W: 1.9KG |
|||
|
G.W: 2.4KG |
|||
|
MTBF |
100,000 hours |
||
