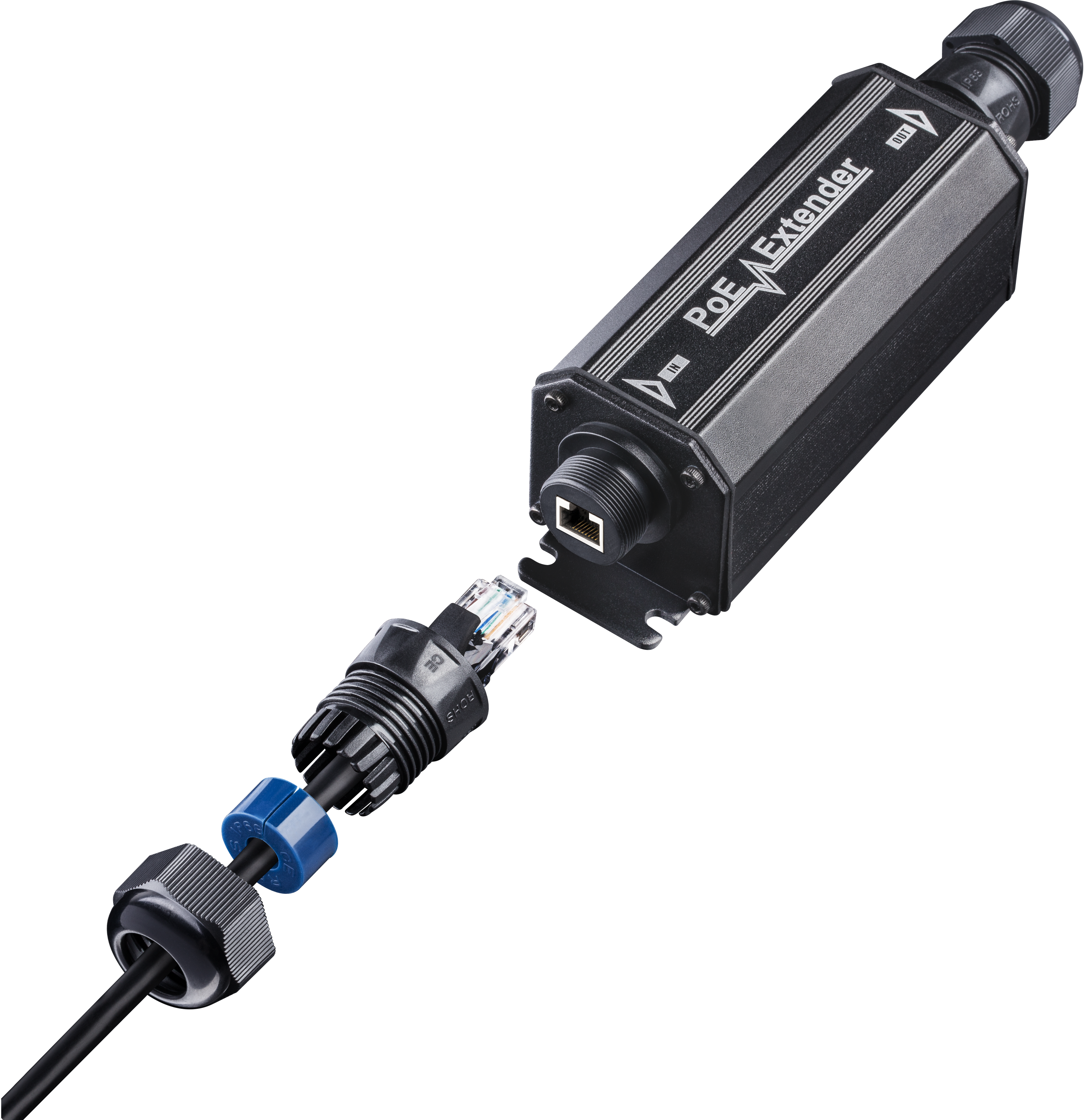

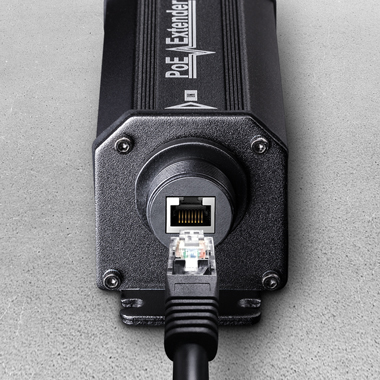

Cudy 100m Gigabit PoE Extender Outdoor

List price: 79.00
(77.99 inc VAT) You save: €15.59 (20%)
In stock

Cudy 100m Gigabit PoE Extender Outdoor

● Compatible with IEEE802.3af and IEEE802.3at

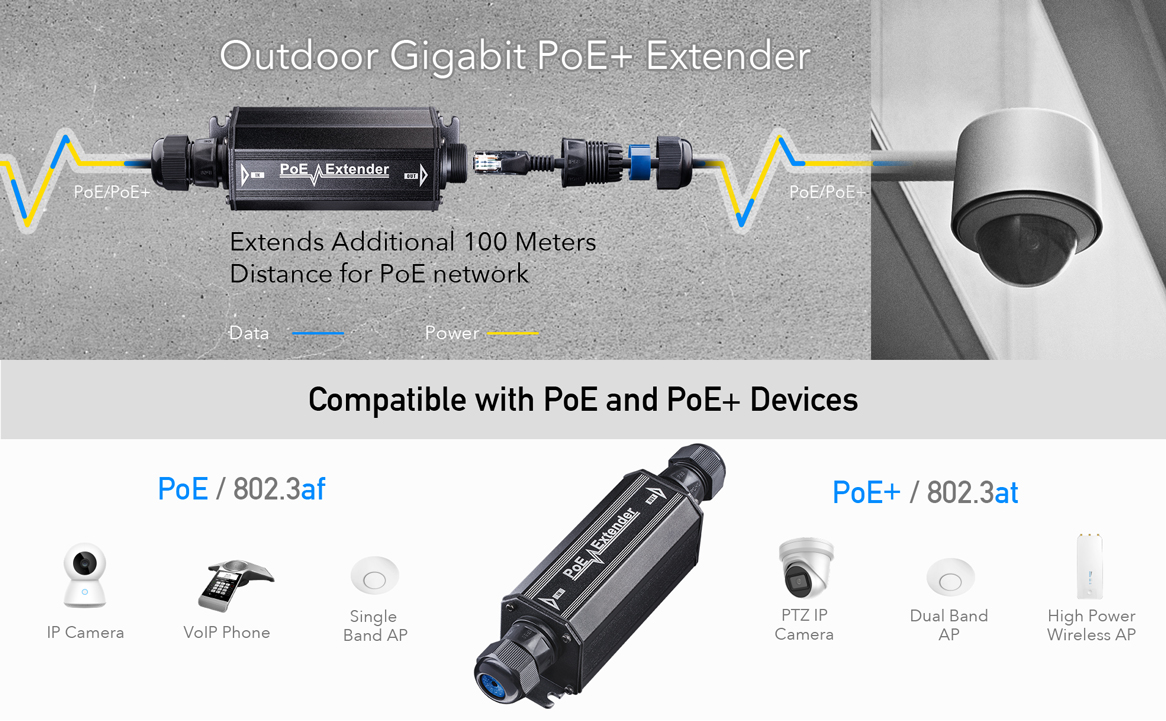

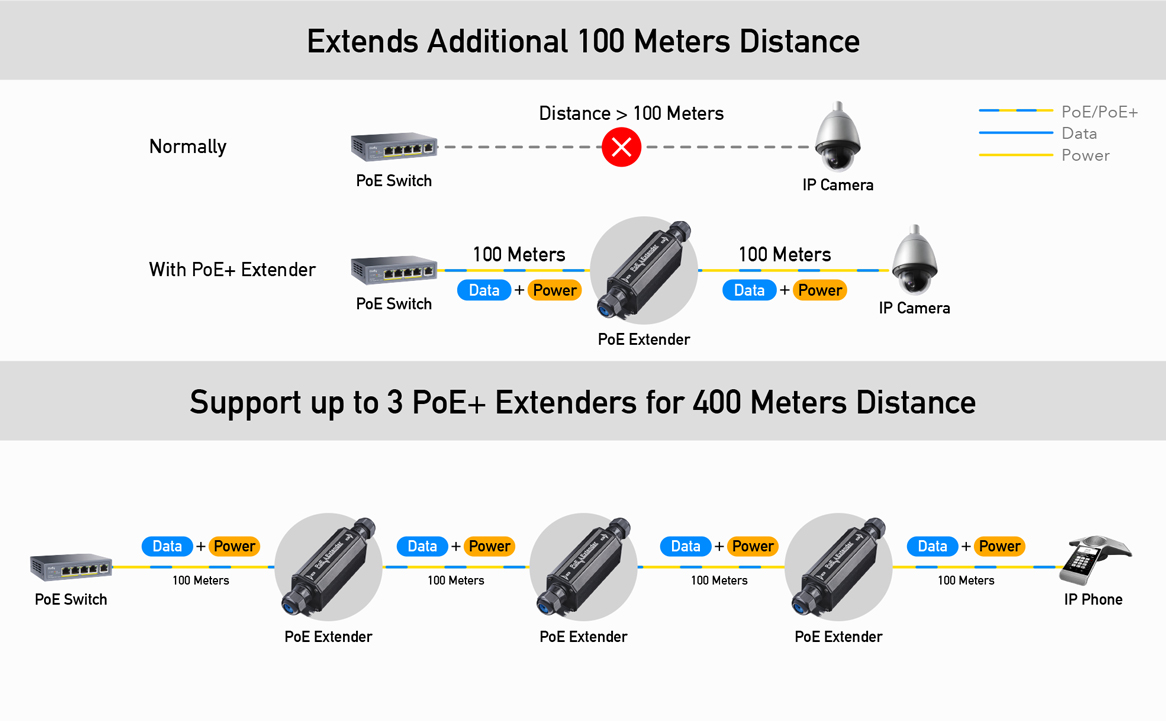

● Extends the range of PoE and Ethernet an additional 100 meters
● No additional power supply is required
● Automatically detects and protects PoE equipments from being damaged by incorrect installation
● Full-rate network throughout the whole extended distance, Compact size, Wall-Mountable design
● Easy plug-and-play installation
● EMI standards complies with FCC, CE class B


Product Name POE15
No. of channels 1(PoE IN) into 1(PoE OUT)
Pass Through Data Rates 10/100/1000 Mbps half/full duplex
Power over Ethernet input Pin Assignment and Polarity:Both 1/2 (-), 3/6 (+) and  7/8 (-), 4/5 (+)
Power over Ethernet Output

Pin Assignment and Polarity:1/2 (+), 3/6 (-)

Output Power: up to 25W

Indicators LED indicators are located on the RJ45 connectorPower indicator: PoE enabledNetwork indicator: Link/Act

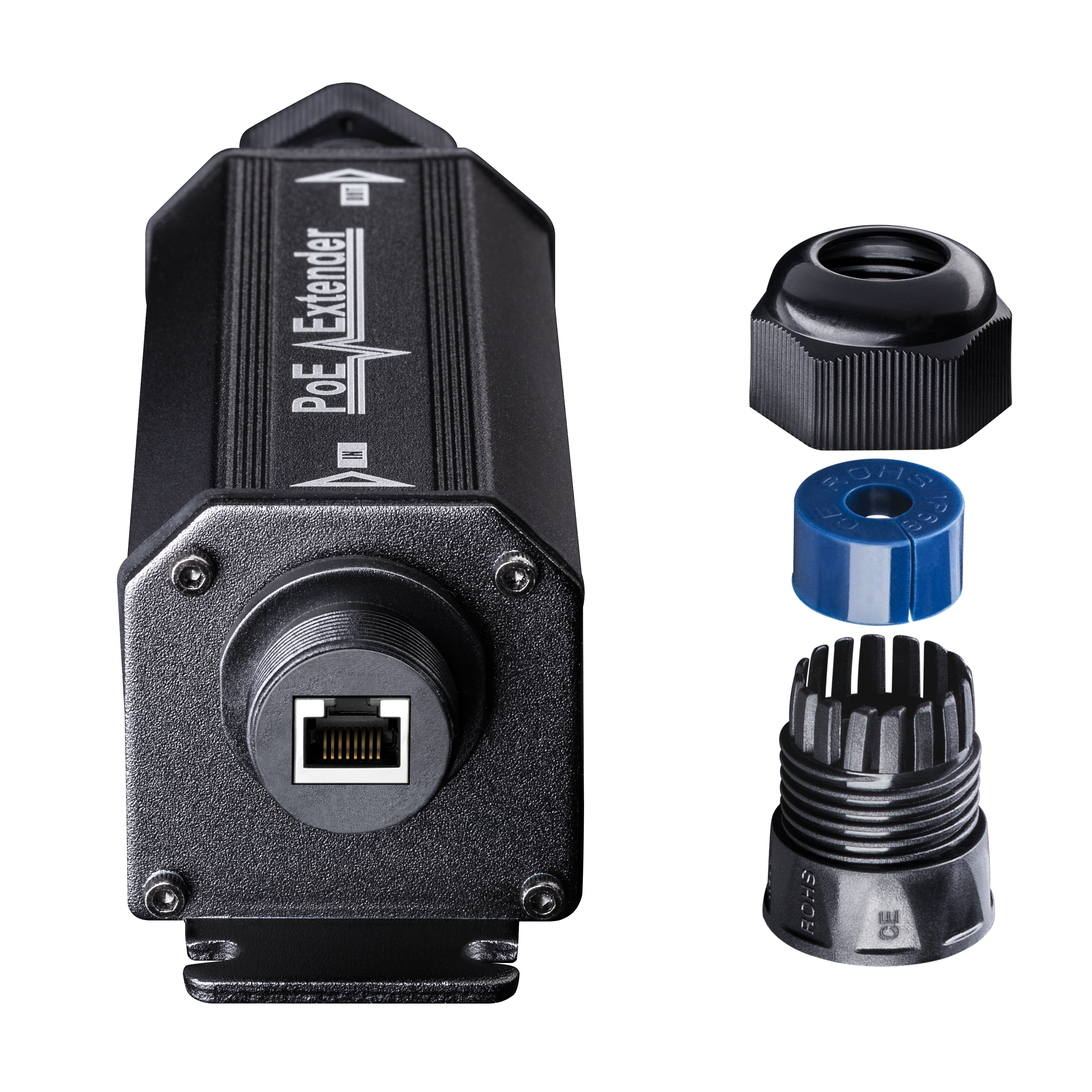

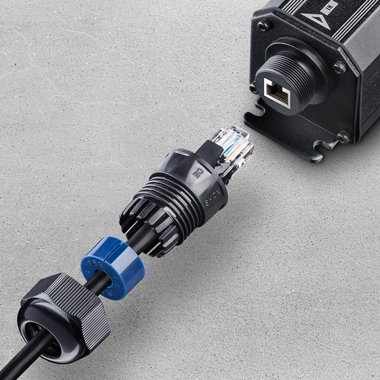

Connectors Shielded RJ-45, EIA 568A and 568B
Network cables Shielded category 5 (or higher)
Dimensions 185mm x 45mm x 45mm

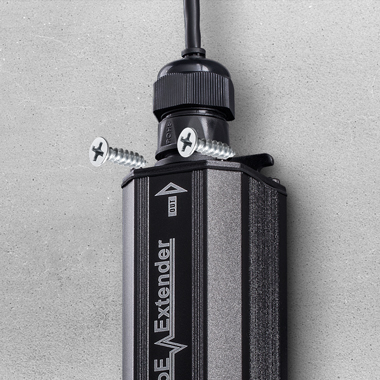

Mounting Wall of shelf

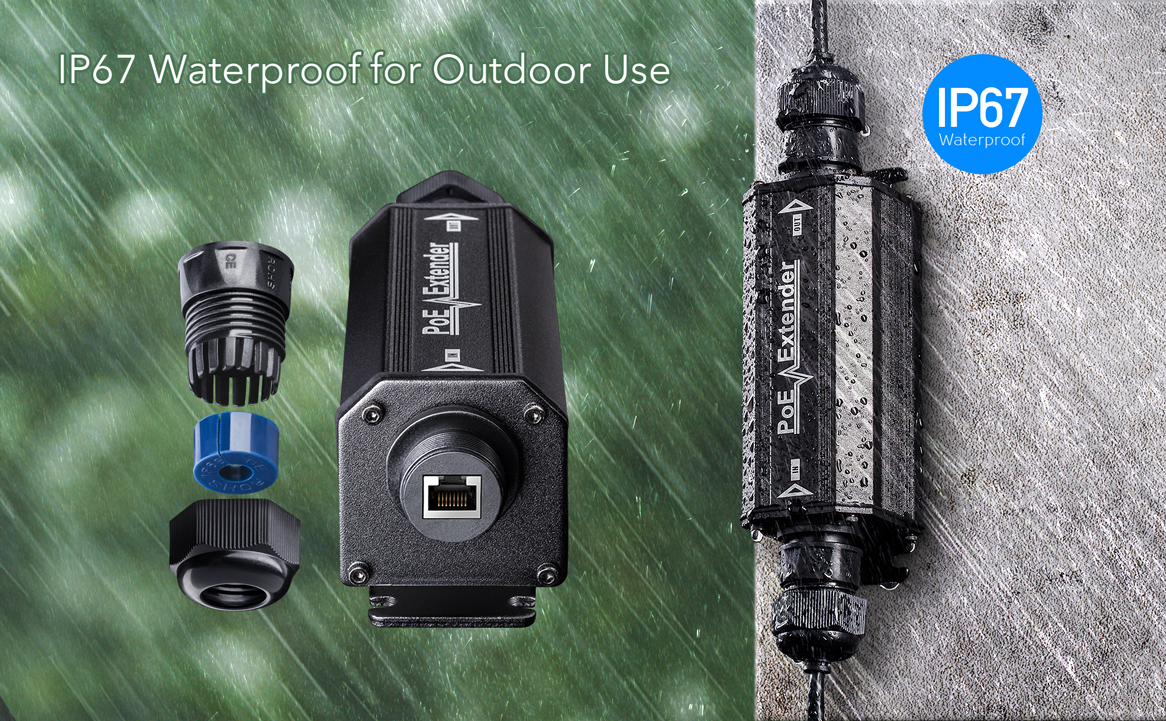

Environment Indoor or Outdoor
Environmental Conditions

Operating Ambient Temperature: -25 to 55℃

Operating Humidity: Maximum 90%, Non-condensing

Storage Temperature: -30 to 70℃

Storage Humidity: Maximum 95%, Non-condensing

Regulatory Compliance IEEE 802.3af (PoE), IEEE 802.3at (PoE+)

Datasheet (POE15_V1.1_Datasheet.pdf, 391 Kb) [Download]
