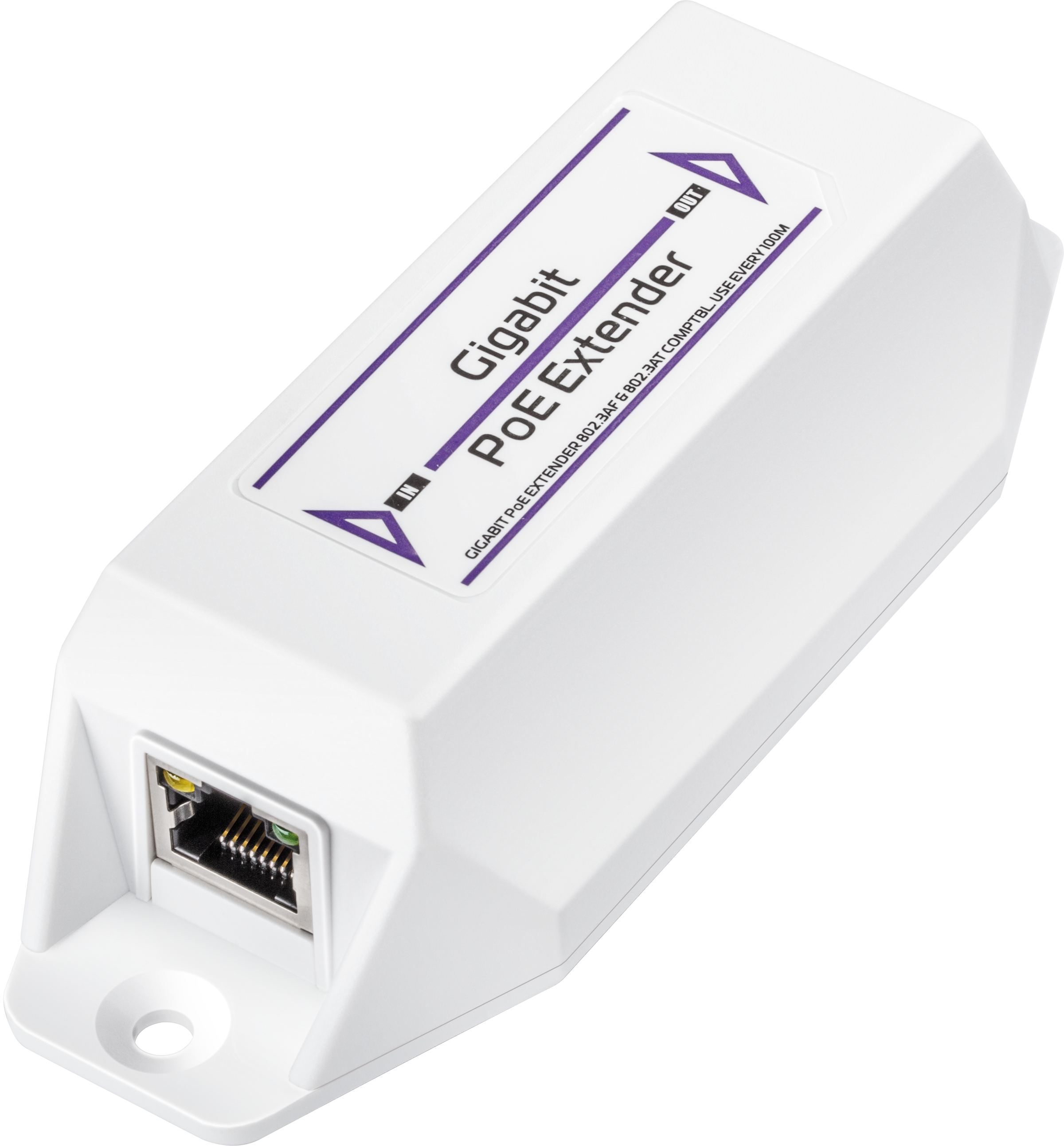

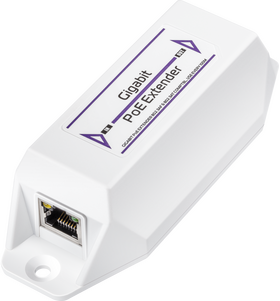

Cudy 100m Gigabit PoE Extender Indoor

List price: 59.00
(59.00 inc VAT) You save: €11.03 (19%)
In stock

Cudy 100m PoE Extender Indoor

● Compatible with IEEE802.3af and IEEE802.3at

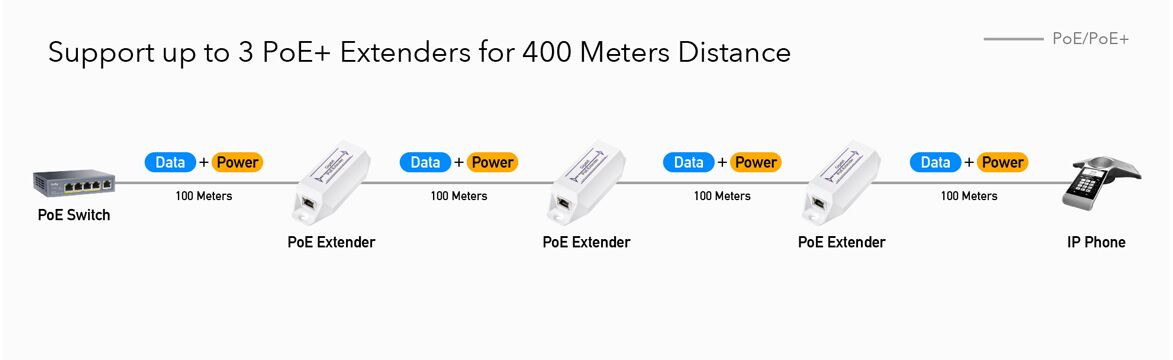

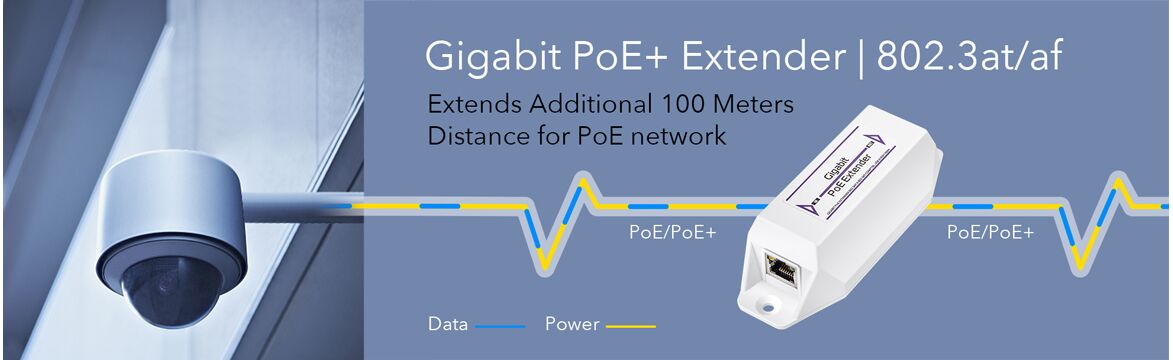

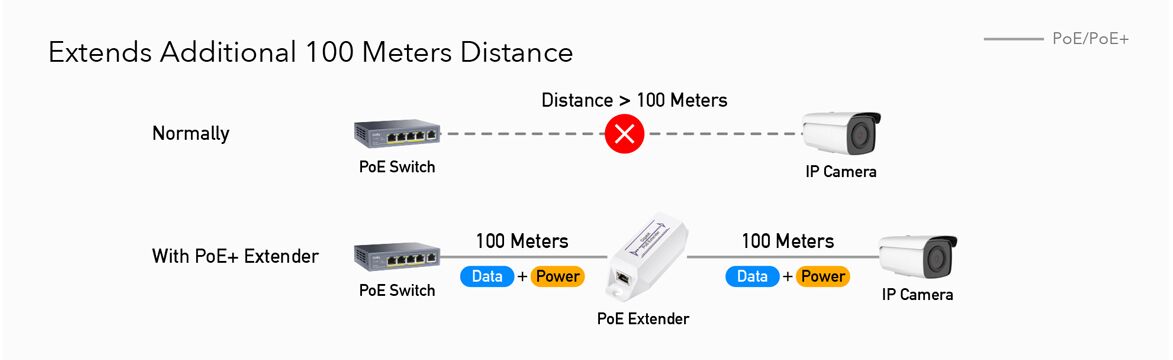

● Extends the range of PoE and Ethernet an additional 100 meters
● No additional power supply is required
● Automatically detects and protects PoE equipments from being damaged by incorrect installation
● Full-rate network throughout the whole extended distance
● Compact size, Wall-Mountable design
● Easy plug-and-play installation
● EMI standards complies with FCC, CE class B


Product Name POE10
No. of channels 1
Pass Through Data Rates 10/100/1000 Mbps half/full duplex
Power over Ethernet input Pin Assignment and Polarity:Both 1/2 (-), 3/6 (+) and  7/8 (-), 4/5 (+)
Power over Ethernet Output Pin Assignment and Polarity:1/2 (+), 3/6 (-)Output Power: up to 25W
Indicators LED indicators are located on the RJ45 connectorPower indicator: PoE enabledNetwork indicator: Link/Act
Connectors Shielded RJ-45, EIA 568A and 568B
Network cables Shielded category 5 (or higher)
Dimensions 145mm x 60mm x 40mm
Mounting Wall of shelf
Environment Indoor or Outdoor
Environmental Conditions Operating Ambient Temperature:-10 to 45℃Operating Humidity:Maximum 90%, Non-condensing

Storage Temperature:-20 to 60℃

Storage Humidity:

Maximum 95%, Non-condensing

Regulatory Compliance IEEE 802.3af (PoE), IEEE 802.3at (PoE+)

Datasheet (POE10_V1.1_Datasheet.pdf, 407 Kb) [Download]
