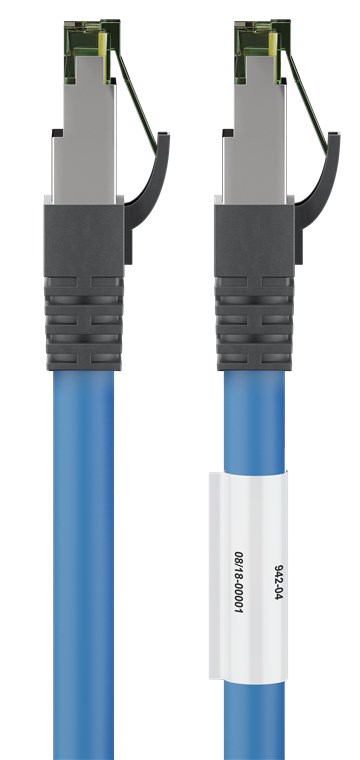

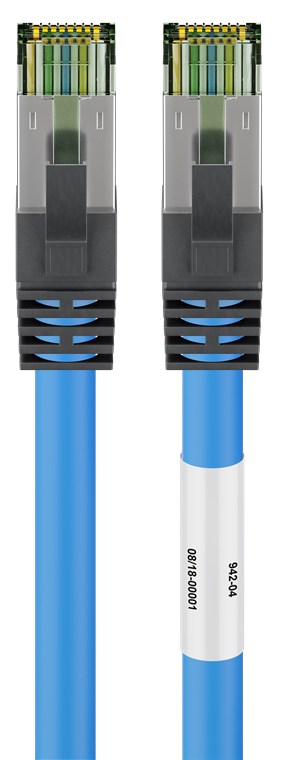

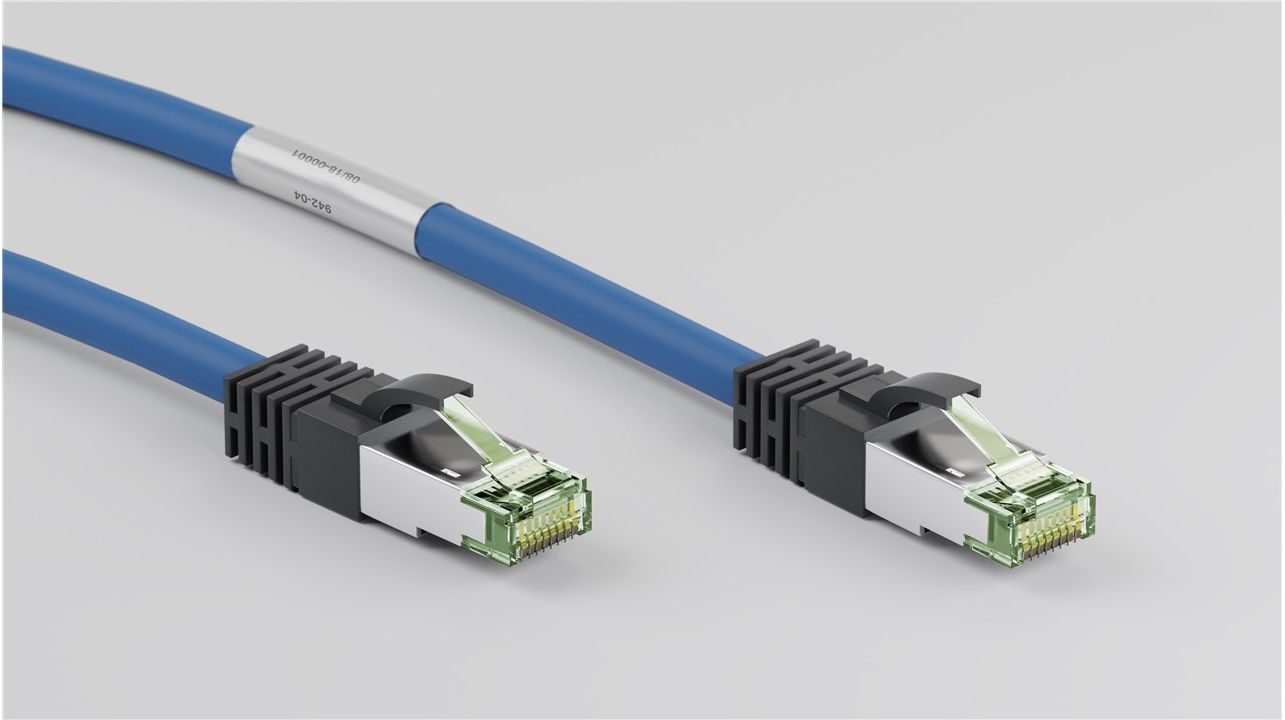

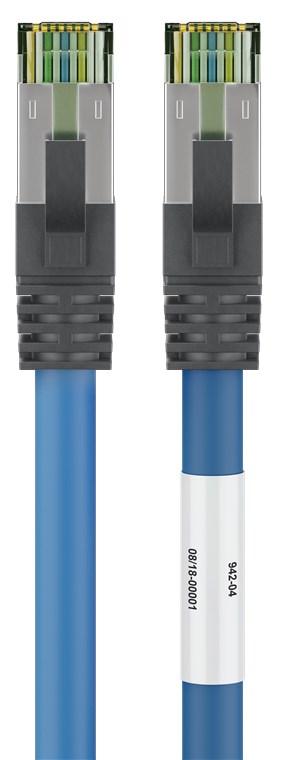

CAT 8.1 patch cable, S / FTP (PiMF), blue, 0.25 m

List price: 10.00
8.00
(9.84 inc VAT) You save: €2.00 (20%)
CAT8.1BLUE0.25
In stock
+
CAT 8.1 patch cable, S / FTP (PiMF), bllue, 0.25 m

LSZH halogen-free, 99.9% OFC copper AWG 24
Cat. 8.1 (Cat. 8.1) Network / LAN cables are used for 25 / 40GBASE-T applications with a transmission bandwidth of up to 2 GHz (four times the bandwidth of Cat. 6A). Green / transparent RJ45 plug contacts allow a simple visual differentiation in the Goobay patch cable category CAT 8.1. Length information on the molded anti-kink sleeve with strain relief and a locking lever protection, which prevent the cables from snagging and the locking lever from breaking off the plug, meet all requirements in a wide variety of applications.
  • HighSpeed ​​network connection cable suitable for 25 / 40G Base-T Ethernet networks (40 Gigabit capable) and backwards compatible with Ethernet (10BASE-T, 100BASE-TX, 1000BASE-T)
  • CAT 8.1 Channel 100% tested (attached measurement report + serial no.)
  • max.bandwidth: 2000 MHz / 2 GHz
  • New RJ45 Cat.8 plug according to industry standard with 50µ gold-plated contact surfaces (PINs)
  • suitable for Power over Ethernet (PoE, PoE +, UPoE and 4PPoE) and HDBaseT
  • double shielded LAN / network cable: wire pair shielding: PIMF (pairs in metal foil) + overall shielding: braid
  • Especially for game consoles with high-resolution images (4k / 120Hz, 8k / 60Hz) such as Sony Playstation 5 (PS 5) or Microsoft Xbox X.
Technical specifications
connections
Connection, shielding
Yes
Latch protection
both sides
Connection, typ
RJ45 industrial connector (8P8C)
Connection 2, typ
RJ45 industrial connector (8P8C)
Contacting
EIA / TIA-568B
Connection, housing material
PVC
Connection, contact material
gold plated 50μ
cable
Cable length
0.5 m
Shielding class
S / FTP (PiMF)
specification
CAT 8.1
Cable type
CAT 8.1 raw cable
Inner conductor, material
CU (copper)
Cable sheath, material
LSZH
AWG
24/7 (stranded)
Number of shields
2 x
Type 1, shielding
Foil (aluminum) PiMF
Type 2, shielding
Braid (aluminum) overall shield
Cable sheath diameter (approx.)
8.2 mm
Kink protection
both sides
Inner conductor, core diameter
0.2 mm
LSZH compliant
Yes
Signal transmission
max bandwidth
2000 MHz
Generally
Packaging type
Bulk
colour
Blue
material
LSZH
Markings
WEEE, CE
Operating temperature
-20 ° C
Operating temperature up to
75 ° C
