ATK-LOG ALP LTE MIMO 2x2 10m SMA 800-3000MHz

List price: 65.00
(71.96 inc VAT) You save: €6.50 (10%)
In stock
Add to wish list

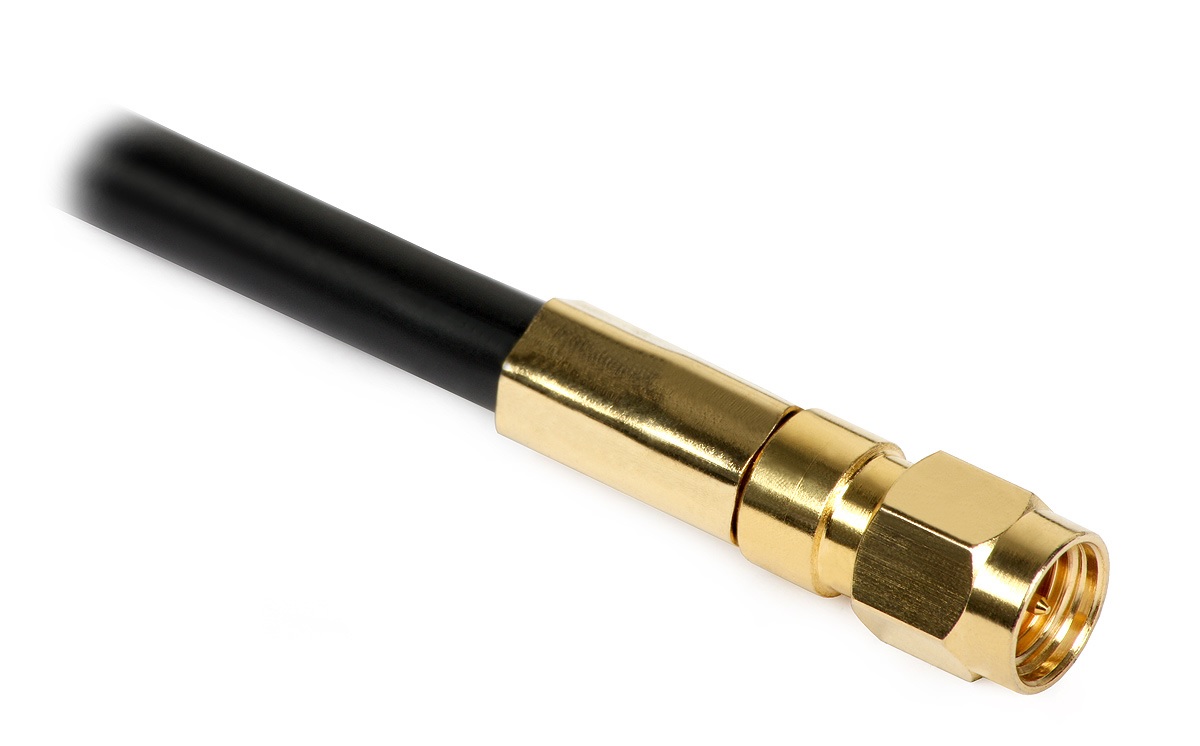

The cable coming from the antenna is 10 meters long and is terminated with an SMA plug

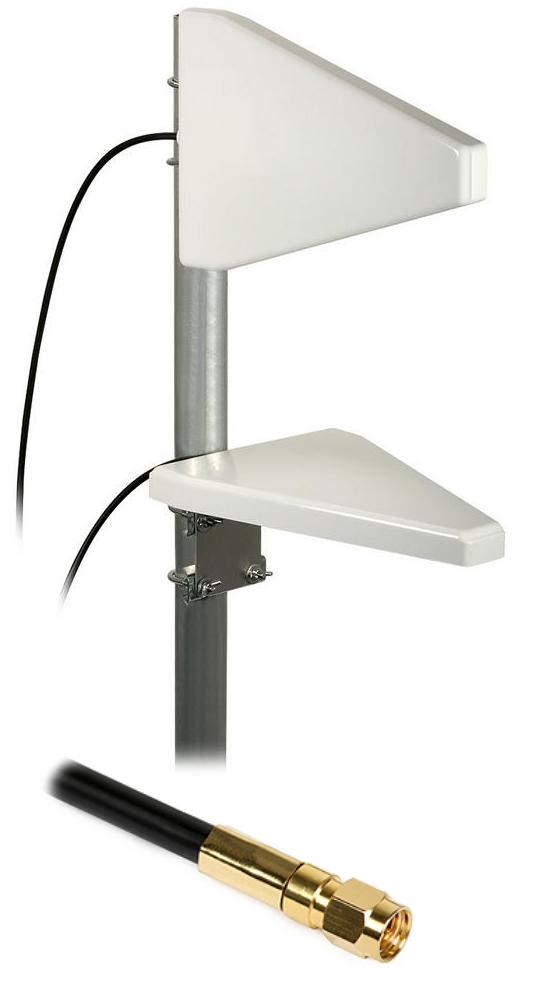

The set includes two the same antennas (a set), one antenna should be mounted vertically and the other horizontally.
The ATK-LOG ALP LTE MIMO antenna is intended for use in GSM / DCS / UMTS / HSDPA / LTE telephony systems operating in the 800-3000 MHz band.
It perfectly solves the common problem of the lack of signal in the place where a modem is installed with a GSM / UMTS / LTE card.
In such a situation, it is usually enough to attach an antenna to the modem to obtain a sufficient signal.
Additionally, the antenna has an integrated 10-meter cable terminated with an SMA plug.
The antenna is designed to work with LTE modems (equipped with two antenna connectors), telephones and modems: GSM, DCS, 3G.

MIMO (Multiple Input, Multiple Output) - a solution that increases the throughput of a wireless network, consisting in multi-antenna transmission on both the transmitting and receiving sides.

Technical specifications:
Band: 800-3000 MHz,
Gain: up to 9 dBi,
2x 10m cable,
SMA plug,
VSWR: max 1.7,
MIMO technique,
DC short-circuited,
