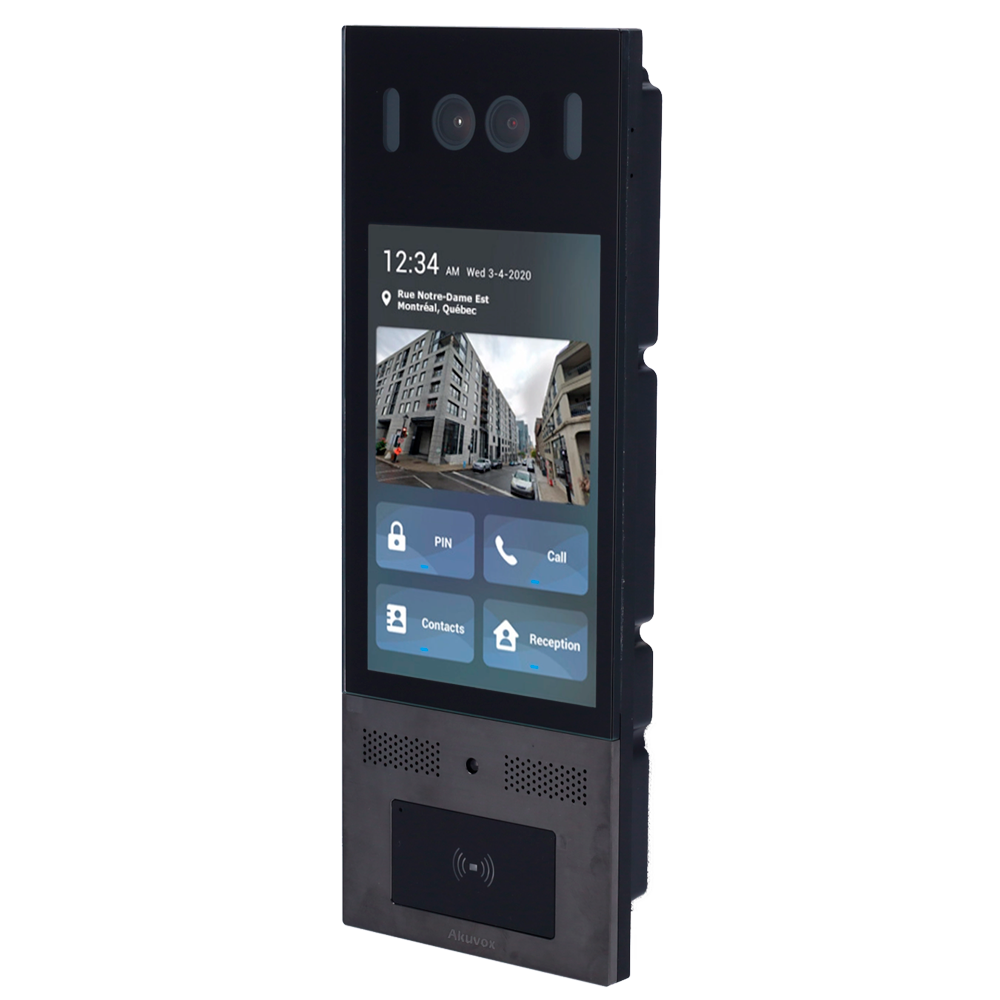

The video door entry panel is installed on the exterior of a building and is commonly referred to as the outdoor unit. It enables visitors to make calls to building staff and provides secure door-opening functionality via its integrated relay outputs. This model features three relay outputs, allowing control of up to three doors simultaneously, and includes a 12 VDC output to directly power electronic locks without the need for an additional power supply, as the device operates via standard PoE.

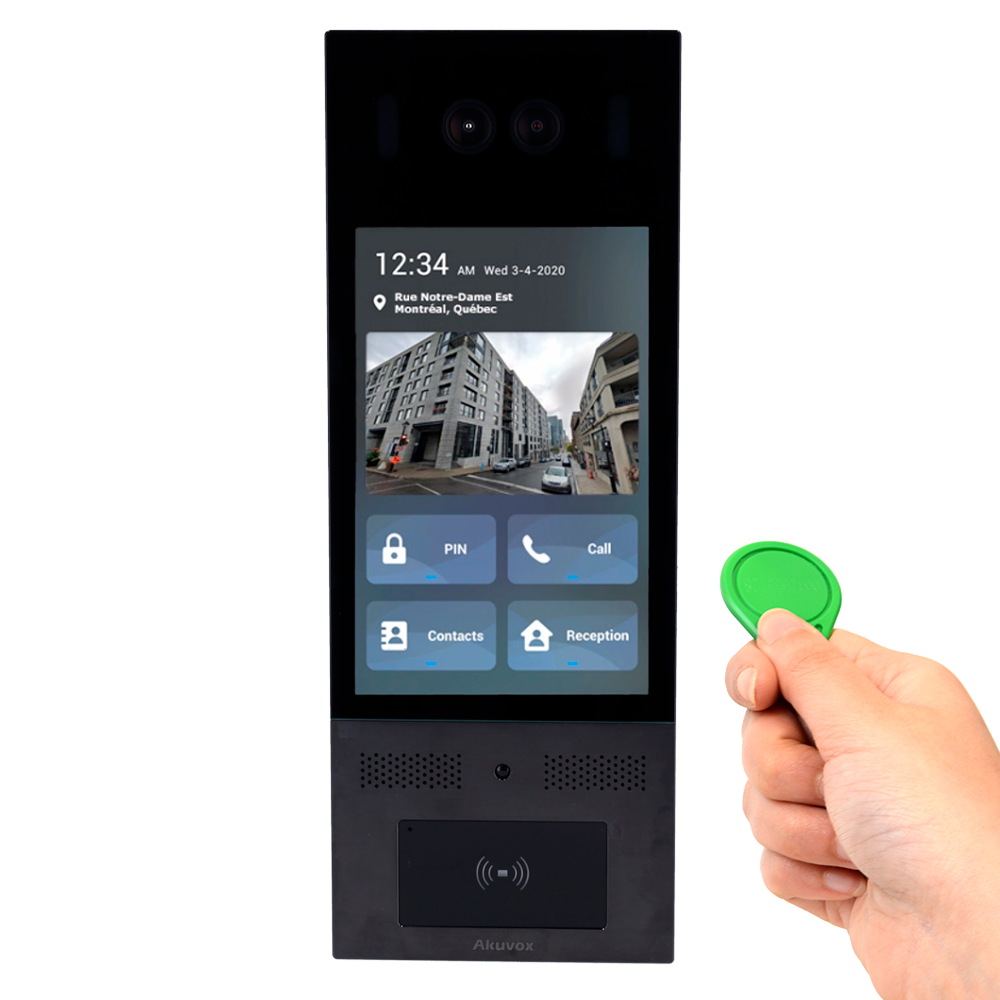

The panel integrates advanced access control, supporting multiple authentication methods: RFID cards or key fobs (EM 125 kHz and MIFARE 13.56 MHz), Bluetooth, QR code scanning, numeric PIN codes, and biometric facial recognition. Temporary PINs and QR codes can also be generated through the SmartPlus mobile application, enabling limited-time access.
As an IP-based device, it communicates and is powered through Ethernet with PoE switches, reducing installation cabling. Its 8" touchscreen displays the user directory for call selection and allows PIN code entry for access.
The unit is designed for durability with an IP65 weatherproof rating for outdoor installation and an IK10 anti-vandalism rating for maximum physical protection in demanding environments.
Advanced functions include:
The panel integrates advanced access control, supporting multiple authentication methods: RFID cards or key fobs (EM 125 kHz and MIFARE 13.56 MHz), Bluetooth, QR code scanning, numeric PIN codes, and biometric facial recognition. Temporary PINs and QR codes can also be generated through the SmartPlus mobile application, enabling limited-time access.
As an IP-based device, it communicates and is powered through Ethernet with PoE switches, reducing installation cabling. Its 8" touchscreen displays the user directory for call selection and allows PIN code entry for access.
The unit is designed for durability with an IP65 weatherproof rating for outdoor installation and an IK10 anti-vandalism rating for maximum physical protection in demanding environments.
Advanced functions include:
- Wiegand connection: enables integration of third-party access readers.
- ONVIF protocol: allows camera integration with CCTV video recorders.
- SIP 2.0 protocol: ensures compatibility with third-party PBX telephone systems.
| Model | X915S |
| Access control | Door opening with facial recognition, RFID card EM 125 kHz and MF 13.56 MHz, BLE, QR and PIN, with records |
| Capacity | Contacts: 3.000 RFID users: 20.000 faces and 20.000 cards/passwords |
| Screen | Android 8" IPS LCD full color touch |

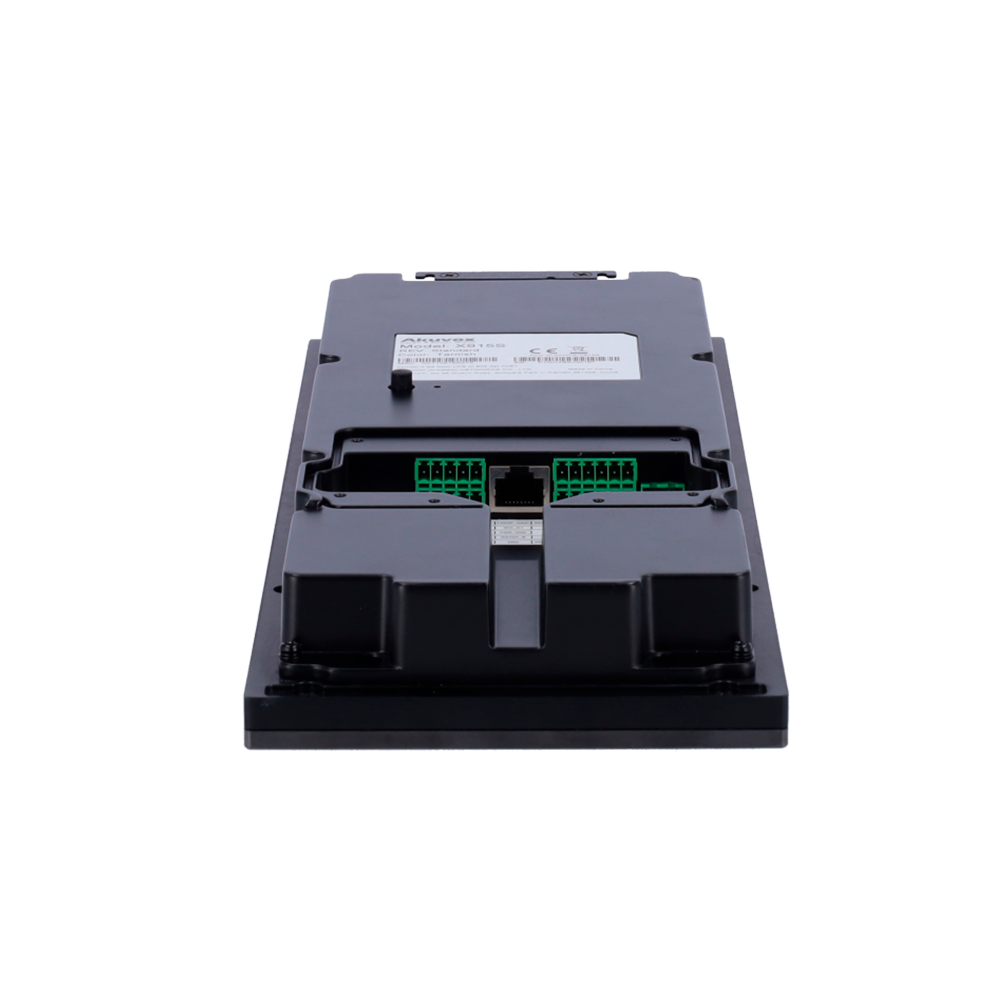

| Outputs | 3 x lock relay (12V/1A), 1 x Wiegand OUT, 1 x RS485 and 1 x magnetic loop |
| Inputs | 3 x output pushbutton and 1 x Wiegand IN |
| Advanced access functions | Anti-passback (configurable via Cloud, in Office Project) |

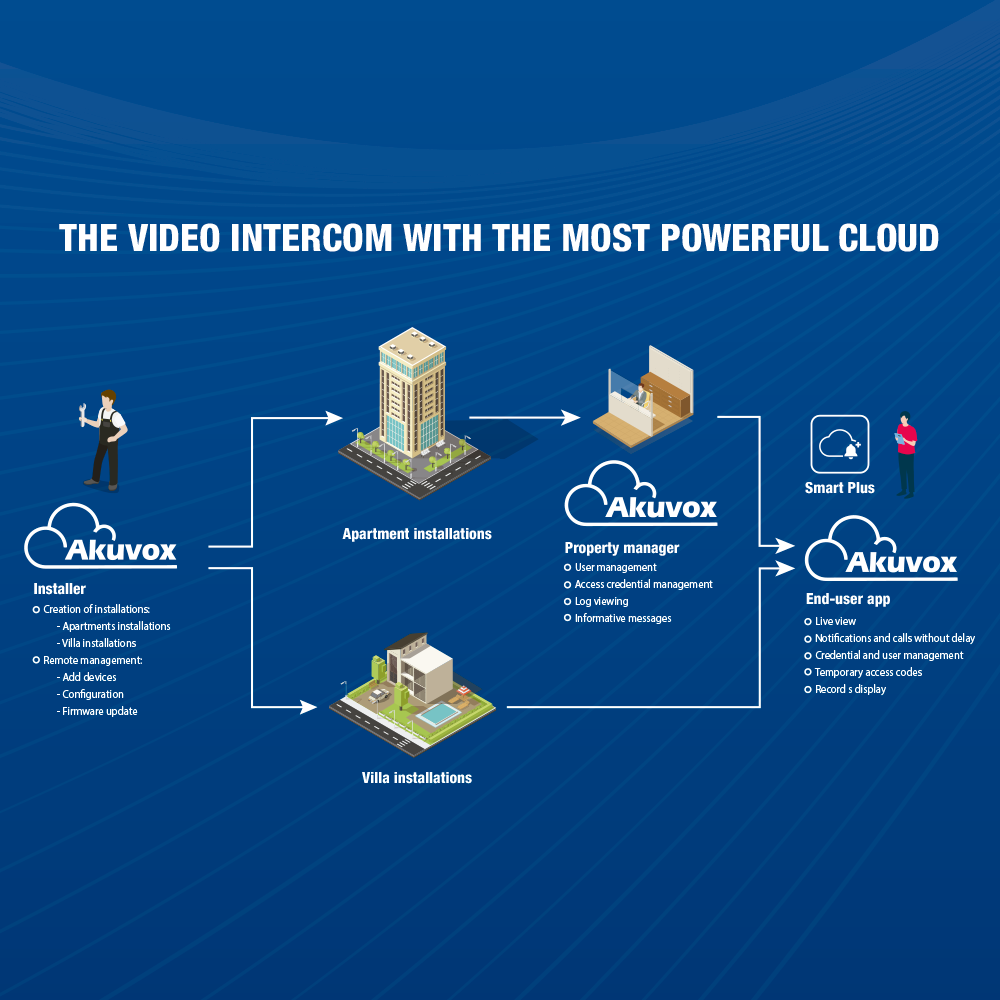

| Remote access | SmartPlus cell phone application or configuration via WEB browser Remote access by Cloud: Included |
| Image sensor | 1/2.8" 2 Megapixel CMOS with infrared sensor and light sensor Starlight and HDR technology |
| Viewing angle | 115° (H) / 63° (V) |
| Camera resolution | 1920x1080 - 30fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p |
| Secondary camera | 2 Mpx for anti-spoofing technology |
| Video encoding | H.264 |
| Audio | Two-way audio with dual microphone and dual loudspeaker with noise reduction and Crystal Clear Audio technology Automatic voice detection |
| Audio format | SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.729, G.722 DTMF (RFC2833), SIP Info |
| Network interface | Ethernet 10/100 BaseT / RS485 / RTSP |
| Mode of operation | Local network and/or via cloud in different networks |
| Firmware updates | Remote with cloud via installer account or via web browser locally |
| Material | Anti-corrosion steel SUS316 |
| Degree of protection | IP65 y IK10 |
| Temp. operation | -30 ºC ~ +60 ºC |
| Dimensions | With surface support: 350 (H) x 130 (W) x 42 (D) mm With flush mounting bracket: 350 (H) x 130 (W) x 54 (D) mm |
| Power | DC 12 V / 1500 mA máx. / PoE+ IEEE802.3at |
| Weight | 2000 g |
