The video door entry monitor is the element that is placed inside the premises, therefore it is also called an indoor unit, and allows to receive calls from visitors to the building staff.

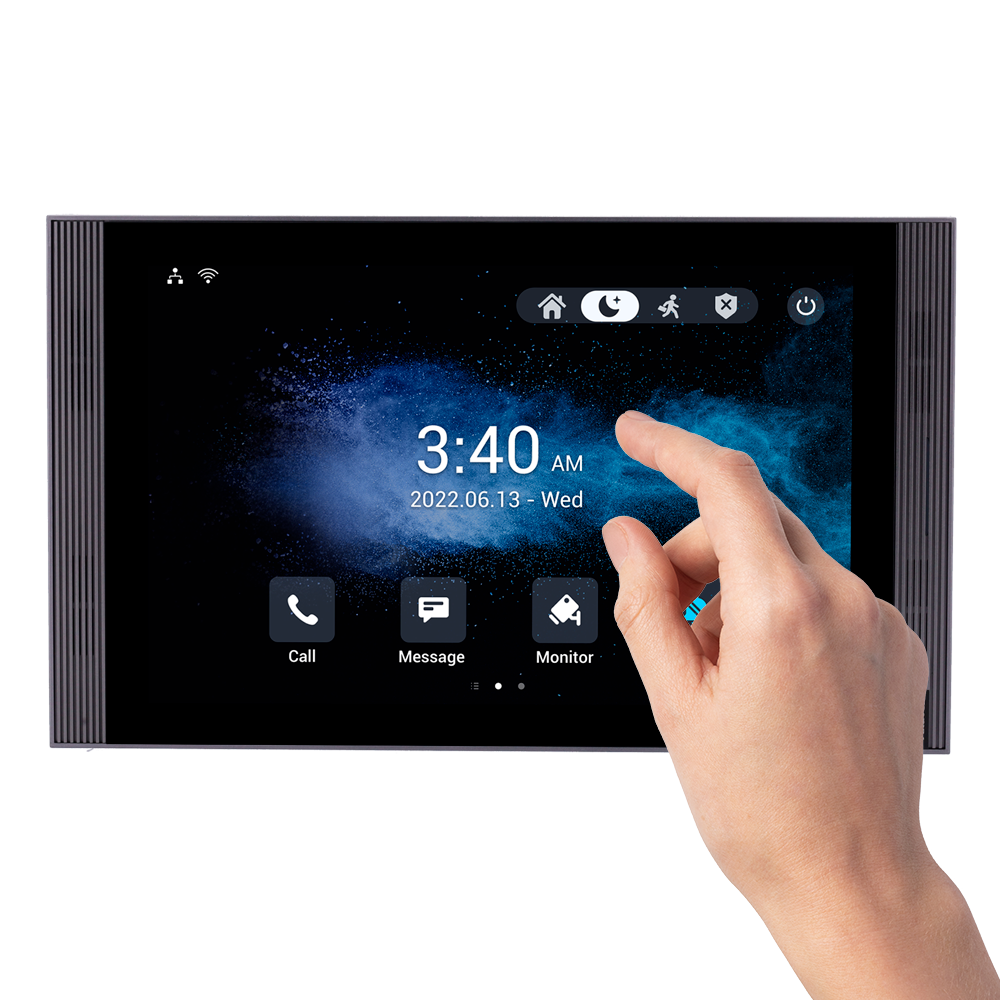

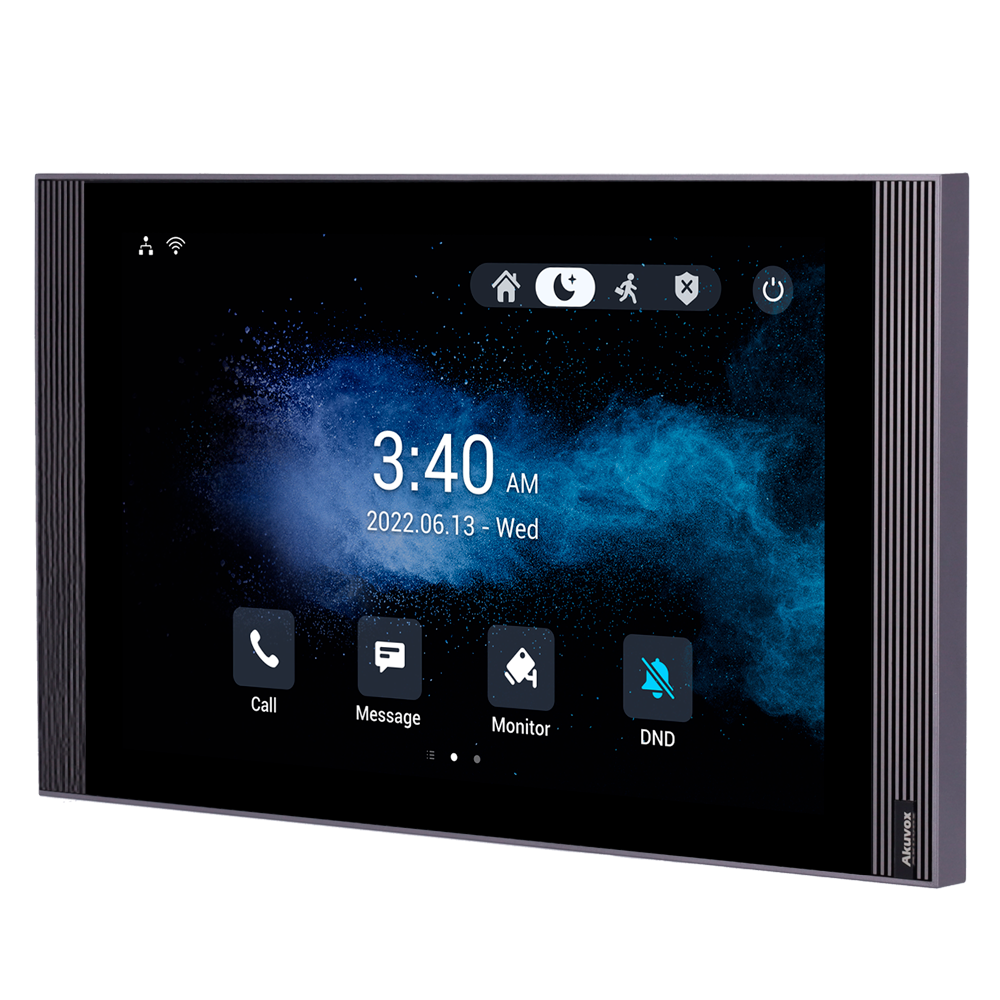

This model has a 7" touch screen for easy user operation, with IPS technology that offers higher image quality.

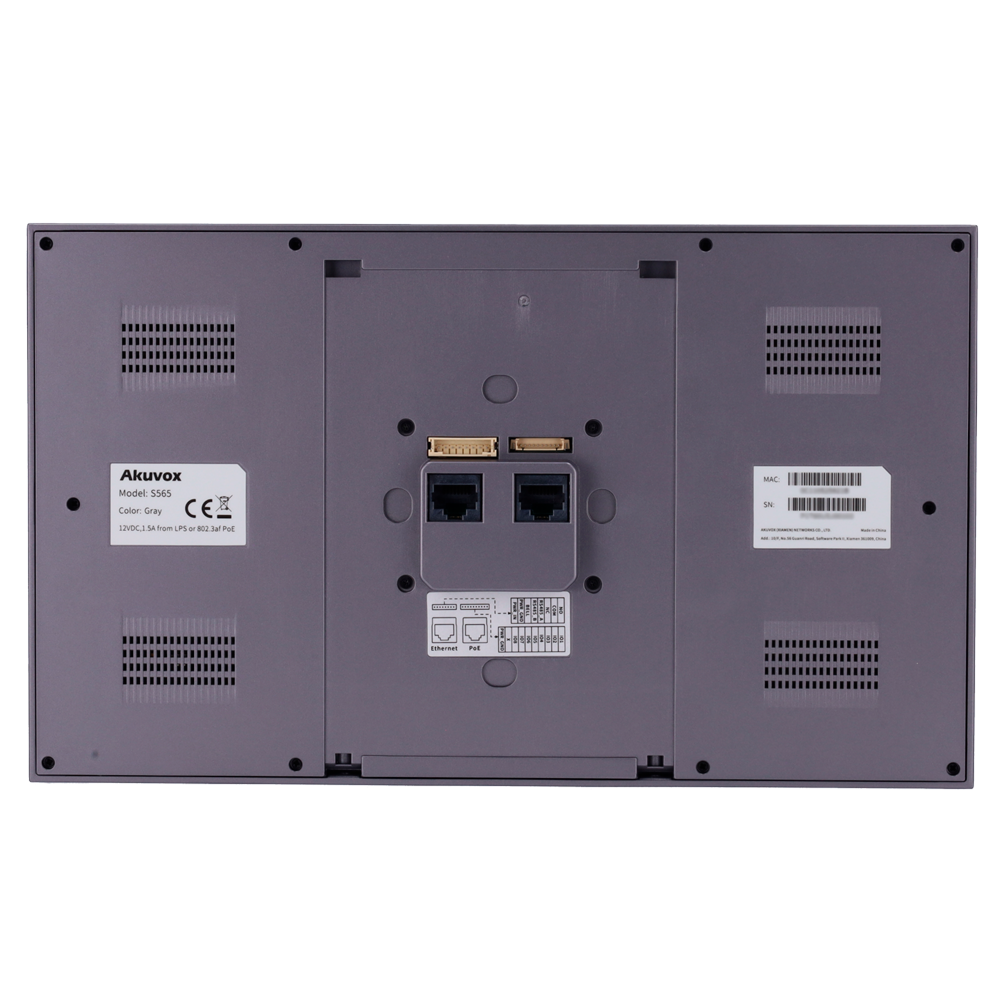

IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
By having 1 relay output you can act on different elements, such as doors or bells to be triggered during calls.
Advanced configurable functions: oNVIF protocol (allows adding CCTV cameras directly to the monitor without additional APPs), standard SIP protocol 2.0 (allows integrating the equipment with third-party PBXs) and doorbell input (allows directly connecting the doorbell push button to the monitor to act as one).
| Model | S565W |
| Operating system | LINUX OS |
| Hardware | RAM: 128 MB | ROM: 256 MB |
| LCD | 7" IPS 1280 x 800 |
| Capacity | Contacts: 500 Messages: 100 Call records: 100 |
| Operation mode | Capacitive touch panel |
| Inputs | 8 x configurable alarm, 1 x buzzer and 1 x RS485 |
| Outputs | 1 x relay |
| Audio | Two-way audio with noise-reduced microphone and speaker with Crystal Clear Audio technology |
| Audio Format | SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.729, G.722 DTMF (RFC2833), SIP Info |
| Remote access | SmartPlus cell phone application or configuration via WEB browser Remote access by Cloud: Included |
| Mode of operation | Local network and/or via cloud in different networks |
| Firmware updates | Remote with cloud via installer account or via web browser locally |
| Network interface | Ethernet 10/100 BaseT / WiFi 802.11b/g/n RTSP / ONVIF |
| Power | DC 12 V / 600 mA máx. Standard PoE (IEEE802.3af) |
| Temp. operation | -10 ºC ~ +45 ºC |

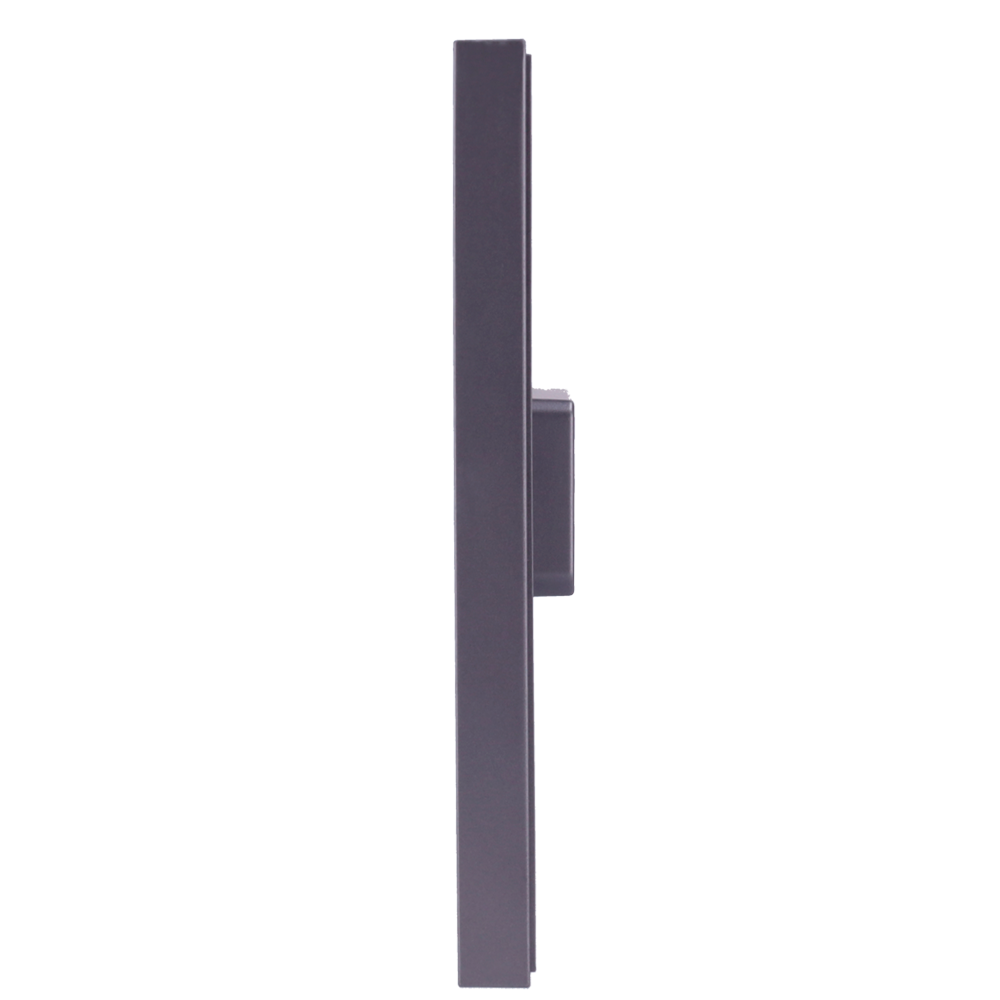

| Dimensions | 278 (W) x 164 (H) x 23 (D) mm |
| Weight | 800 g |
