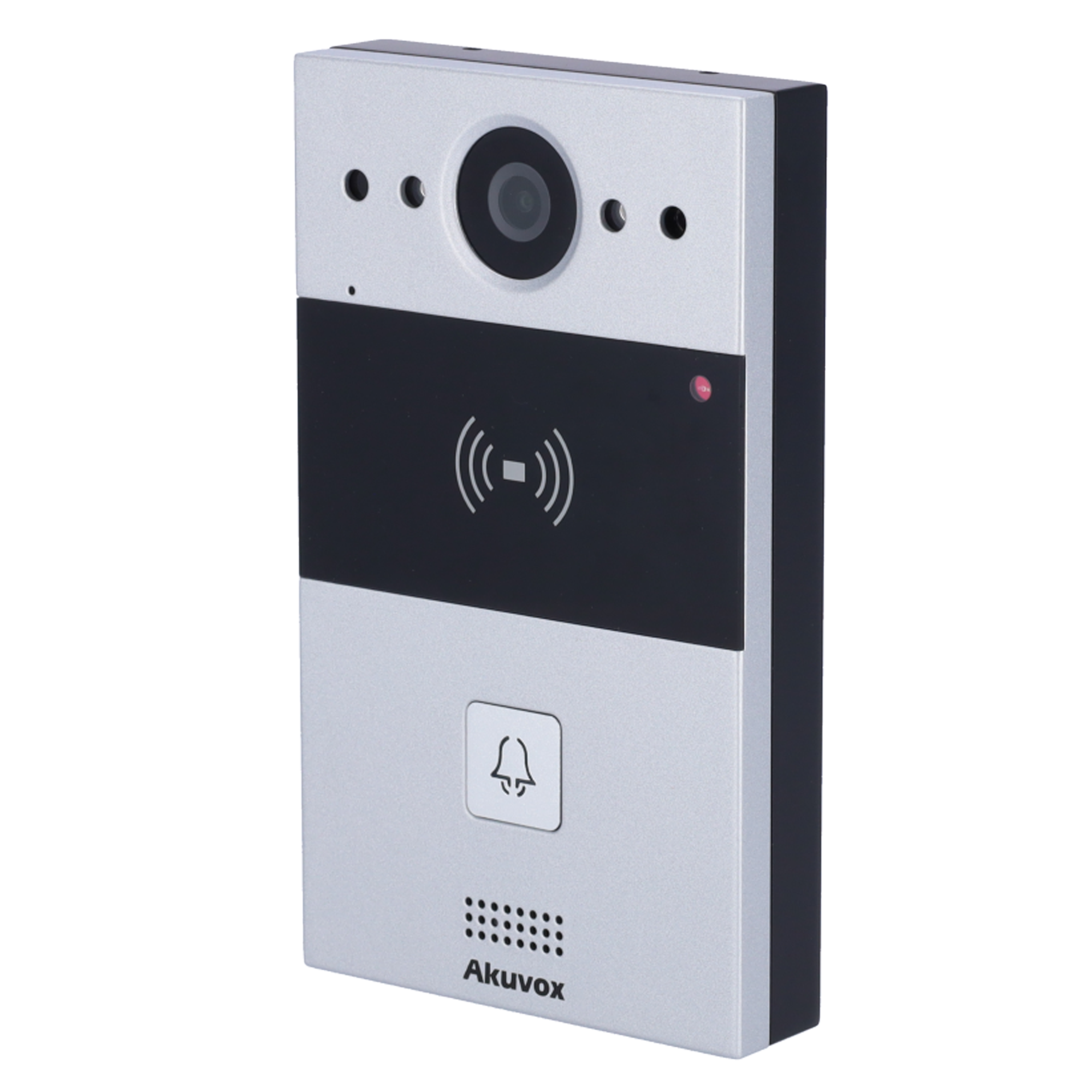

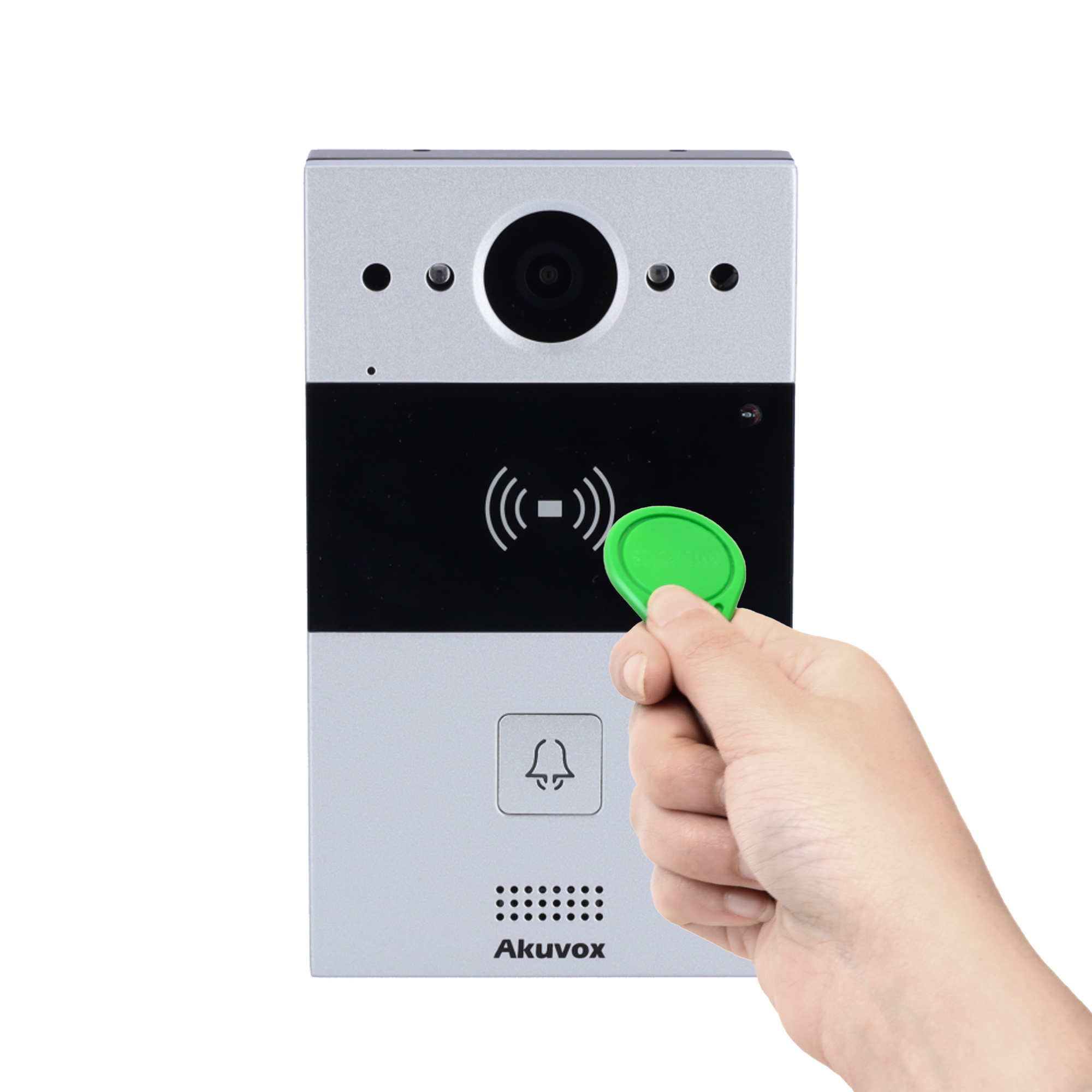

The video door entry panel is installed outside the premises and is often referred to as the outdoor unit. It allows visitors to make calls to building staff and also provides door-opening functionality via its integrated relay outputs. This model features two relay outputs, enabling the control of up to two doors simultaneously. In addition, it includes built-in access control, supporting user identification through RFID cards or key fobs (EM 125 kHz and MIFARE 13.56 MHz), as well as NFC.
As an IP device, it communicates and receives power through Ethernet and PoE switches, minimizing cabling requirements. Its physical keypad makes it simple for visitors to call users, while its IP65-rated weatherproof design ensures reliable outdoor operation.
The panel supports advanced functions such as:
Wiegand connection: allows the integration of third-party access readers for user identification.
ONVIF protocol: enables camera integration into CCTV video recorders.
SIP 2.0 protocol: ensures compatibility with third-party PBX telephone systems.
| Access control | Door opening with RFID card EM 125 kHz and MF 13.56 MHz and NFC, with records |
| Capacity | Contacts: 1.000 RFID users: 5.000 card(s) |
| Keypad | Mechanical call button with configurable LED illumination |

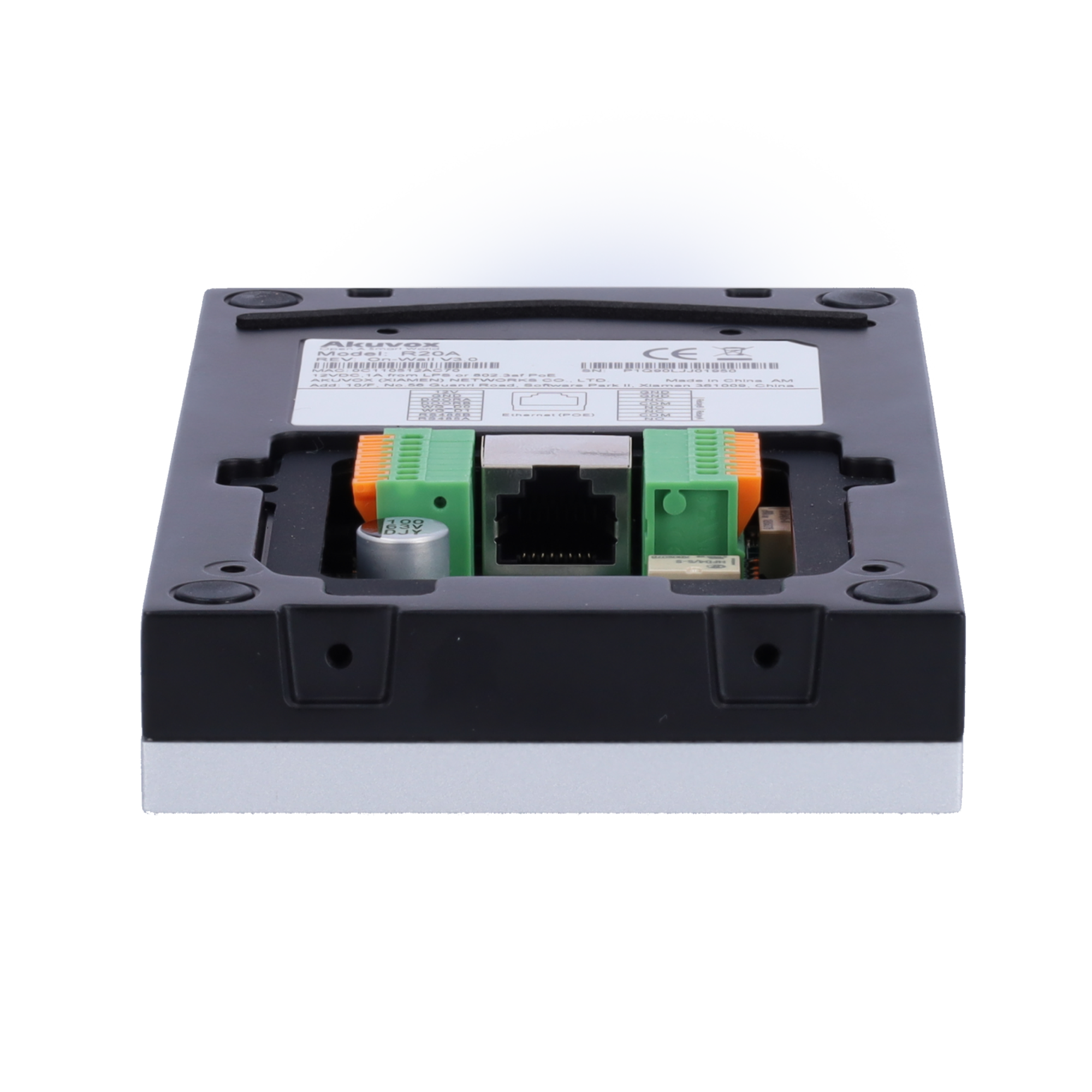

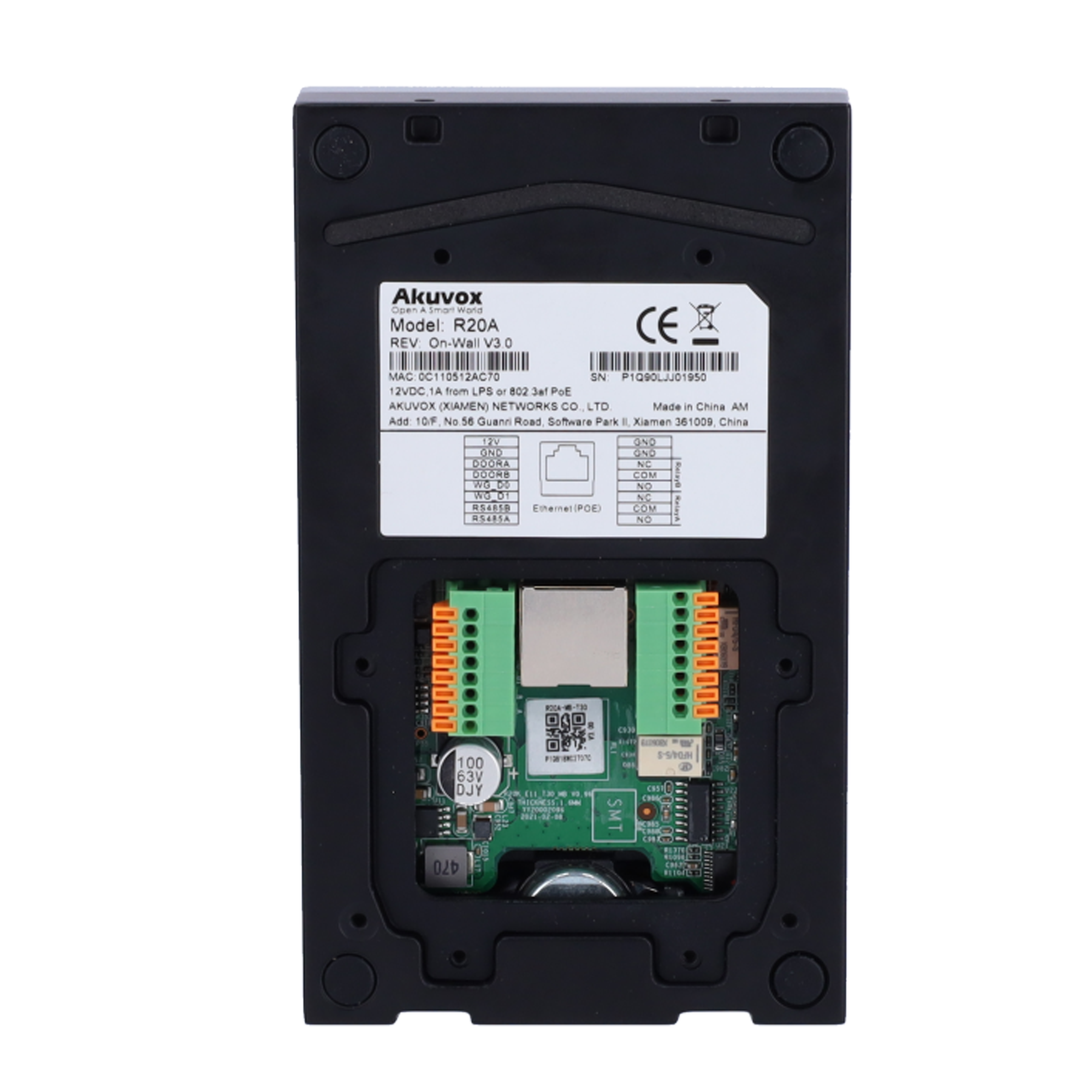

| Outputs | 2 x lock relay, 1 x Wiegand OUT and 1 x RS485 |
| Inputs | 2 x output pushbutton and 1 x Wiegand IN |
| Advanced access functions | Anti-passback (configurable via Cloud, in Office Project) |

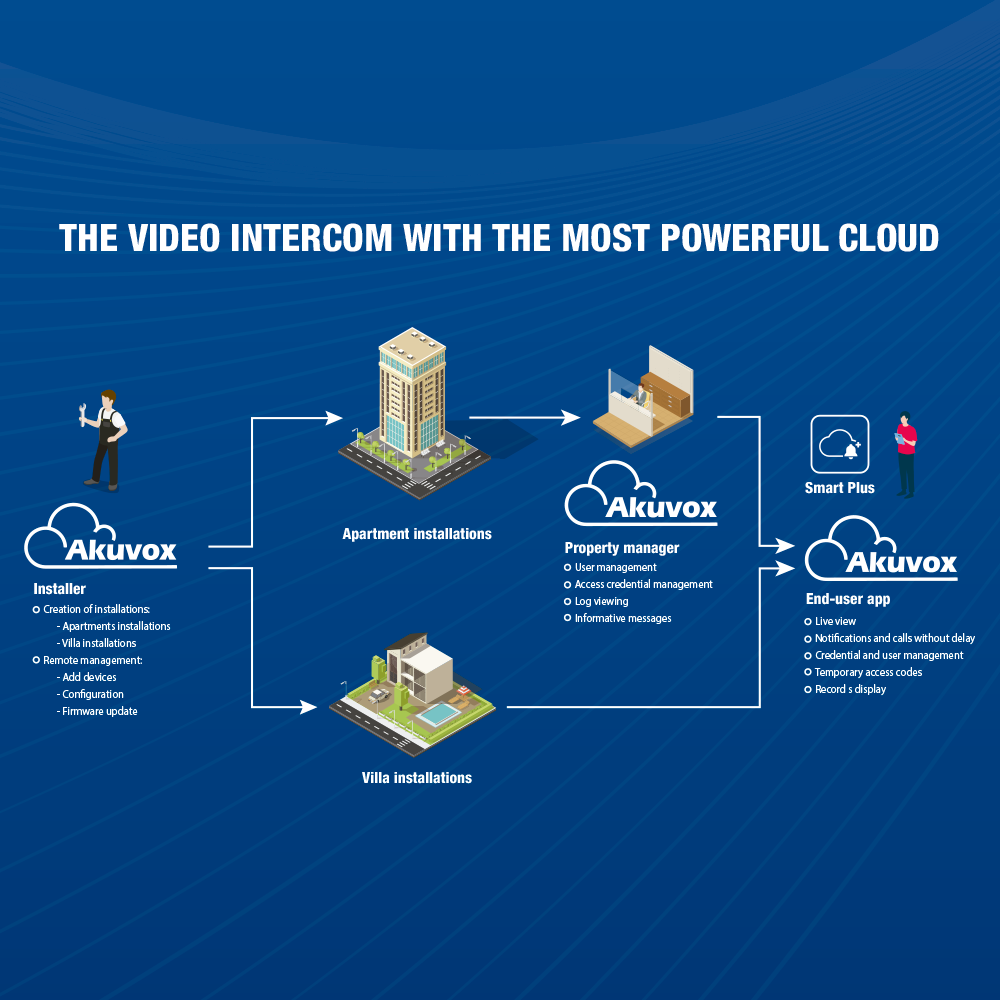

| Remote access | SmartPlus cell phone application or configuration via WEB browser Remote access by Cloud: Included |
| Image sensor | 1/2.7" 2 Megapixel CMOS with infrared sensor and light sensor |
| Viewing angle | 110° (H) / 58° (V) |
| Camera resolution | 1920x1080 - 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p |
| Video encoding | H.264 y H.265 |
| Audio | Two-way audio with noise-reduced microphone and speaker with Crystal Clear Audio technology |
| Audio format | SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.729, G.722 DTMF (RFC2833), SIP Info |
| Network interface | Ethernet 10/100 BaseT / RS485 / RTSP |
| Mode of operation | Local network and/or via cloud in different networks |
| Firmware updates | Remote with cloud via installer account or via web browser locally |
| Material | Aluminium alloy |
| Degree of protection | IP65 |
| Temp. operation | -40 ºC ~ +65 ºC |
| Dimensions | 145 (H) x 85 (W) x 28 (D) mm |
| Power | DC 12 V / 1000 mA máx. / IEEE802.3af PoE |
| Weight | 800 g |
