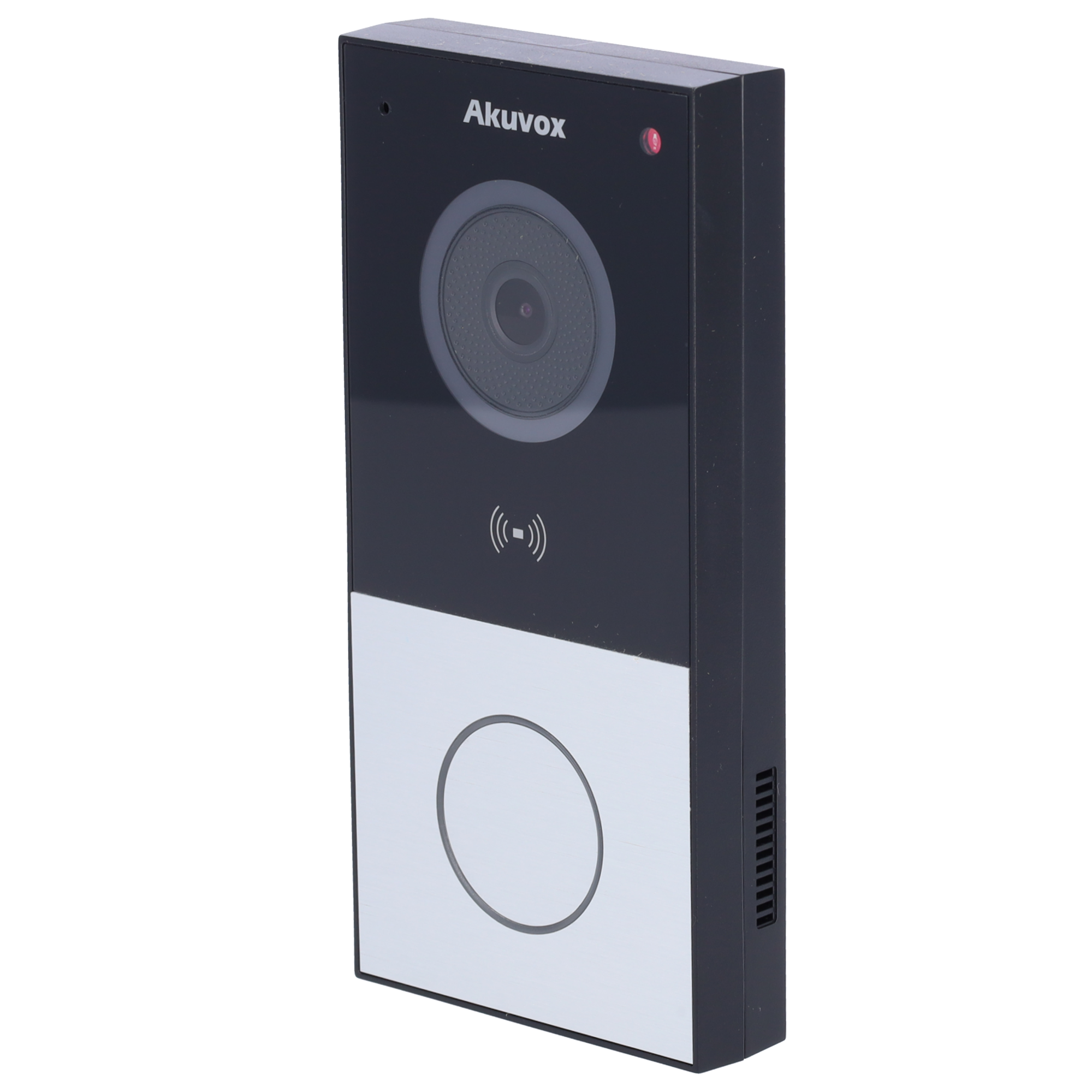

The video door entry panel is the element that is placed on the outside of the premises, therefore it is also called an outdoor unit, and allows to make calls from visitors to the building staff.

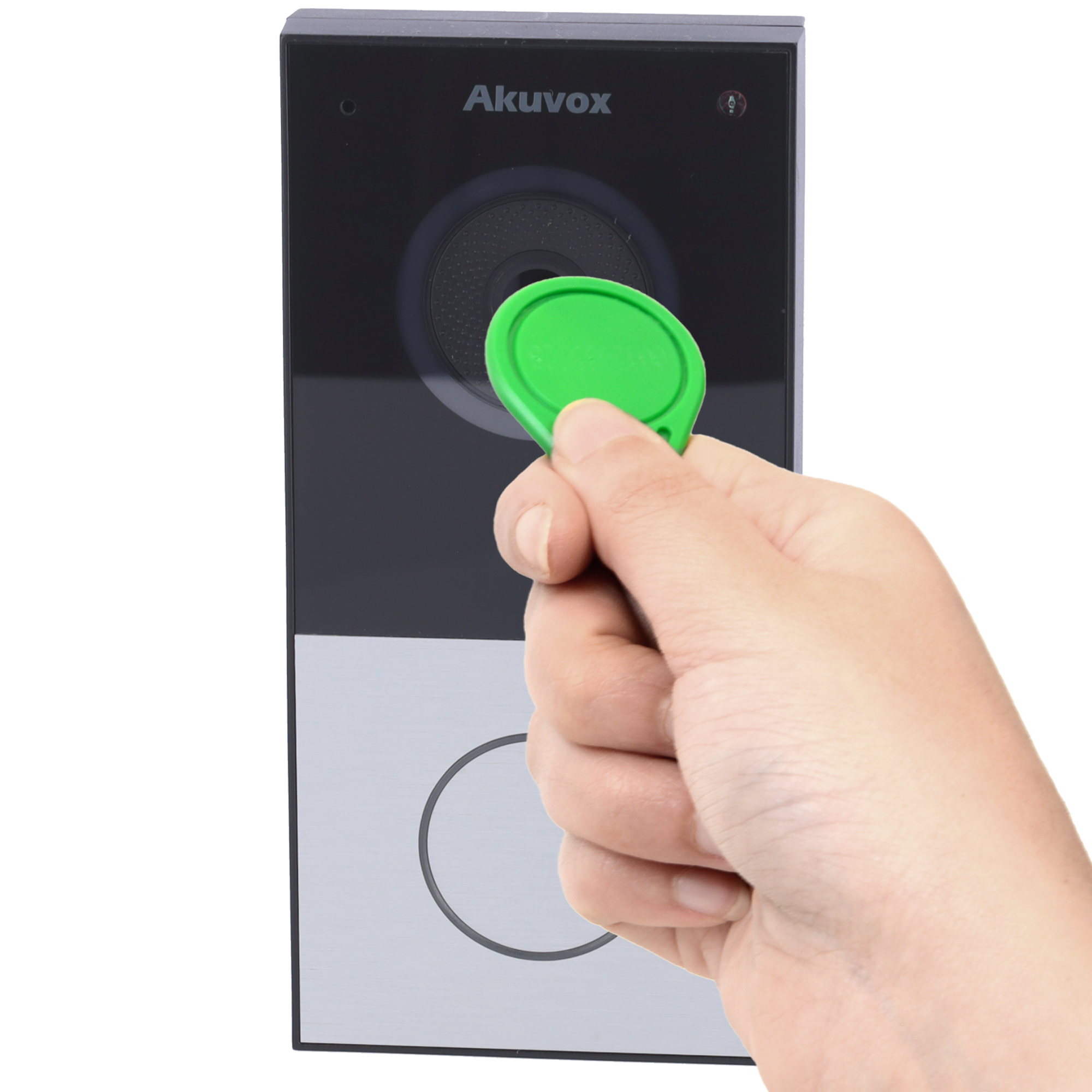

These devices also have the ability to open the door through their relay outputs. This model has 1 relay output to manage up to 1 gate. In addition, it has integrated access control, allowing identification through cards or key fobs with MF technology of 13.56 MHz, NFC and Bluetooth.

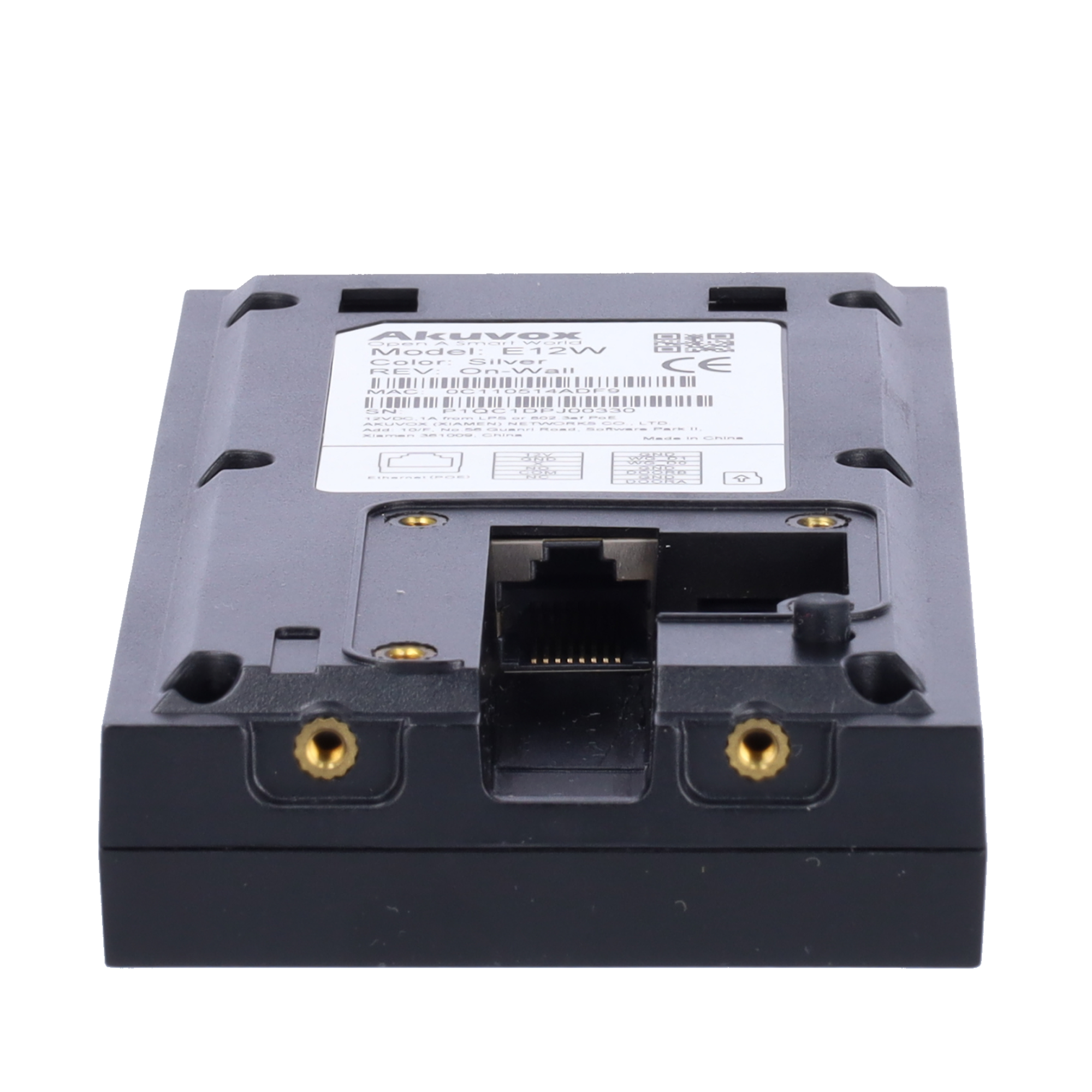

IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.
Its exterior grade IP65 allows it to be installed outdoors.
| Model | E12W |
| Access control | Door opening with MF card 13.56 MHz, NFC and Bluetooth, with records |
| Capacity | Contacts: 1.000 RFID users: 5.000 card(s) |
| Keypad | Mechanical call button with configurable LED illumination |
| Outputs | 1 x relay for lock and 1 x Wiegand OUT |
| Inputs | 2 x output pushbutton and 1 x Wiegand IN |

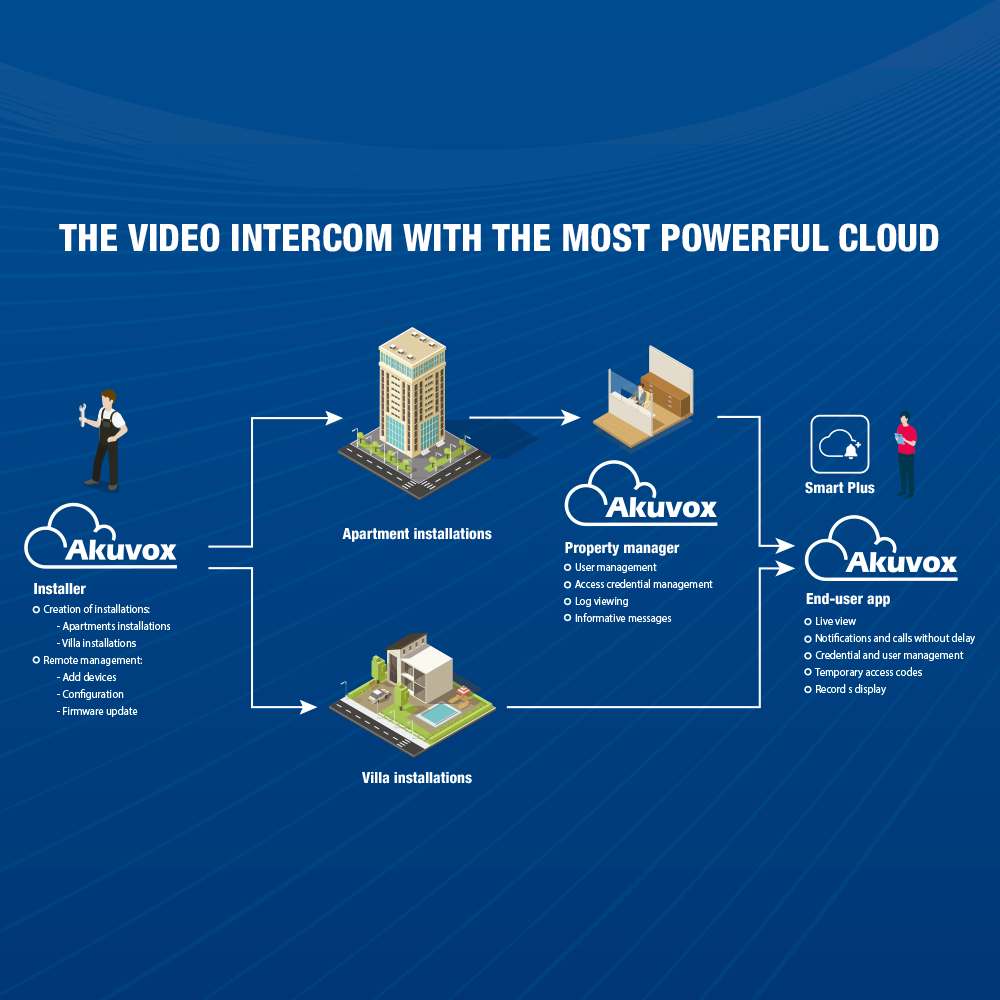

| Remote access | SmartPlus cell phone application or configuration via WEB browser Remote access by Cloud: Included |
| Image sensor | 1/2.7" 2 Megapixel CMOS with infrared sensor and light sensor |
| Viewing Angle | 123° (H) / 69° (V) |
| Camera resolution | 1920x1080 - 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p |
| Video encoding | H.264 y H.265 |
| Audio | Two-way audio with noise-reduced microphone and speaker with Crystal Clear Audio technology |
| Audio Format | SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.729, G.722 DTMF (RFC2833), SIP Info |
| Memory | MicroSD slot up to 32 GB |
| Network interface | Ethernet 10/100 BaseT / RS485 / RTSP / WiFi 802.11b/g/n |
| Mode of operation | Local network and/or via cloud in different networks |
| Firmware updates | Remote with cloud via installer account or via web browser locally |
| Material | Plastic |
| Degree of protection | IP65 |
| Temp. operation | -40 ºC ~ +55 ºC |
| Dimensions | 146 (H) x 70 (W) x 23 (D) mm |
| Power | DC 12 V / 1000 mA máx. / IEEE802.3af PoE |
| Weight | 600 g |
