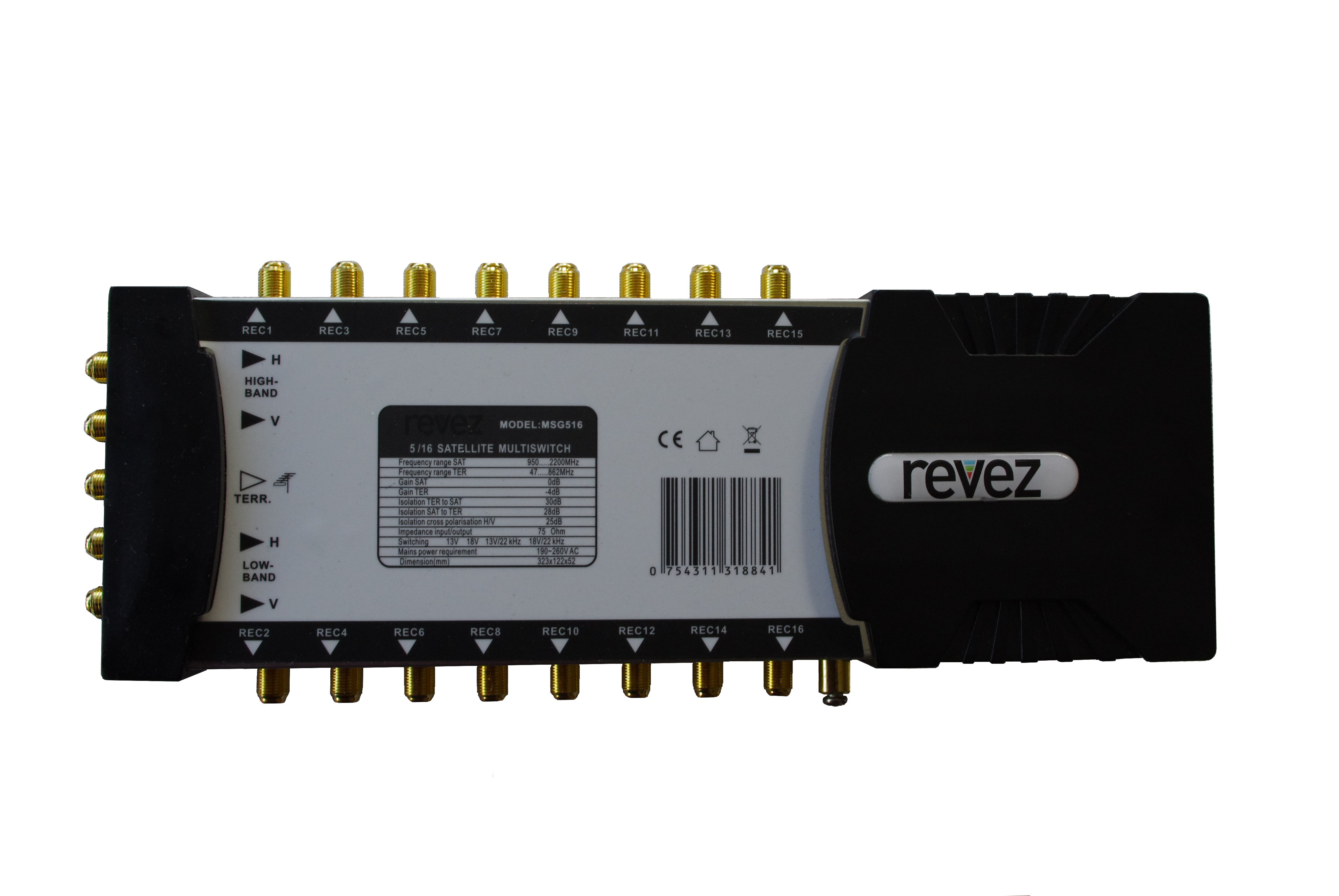

Revez 5x16 Satellite & Terrestrial Multiswitch

List price: 109.50
88.61
(108.99 inc VAT) You save: €20.89 (19%)
MSG516
In stock
+

DESCRIPTION of 5 x 16 Satellite & Terrestrial Multiswitch

  • Revez Gold Premium Series Multiswitch
  • Inputs: 5
    • Horizontal High (22 KHz)
    • Horizontal low
    • Vertical High  (22 KHz)
    • Vertical Low
    • Terrestrial
  • Outputs: 16 satellite feeds

Frequencies:

  • Terrestrial: 47 - 862 MHz
  • Satellite: 950 - 2300 MHz
  • Colour: Silver/Black
  • Manufacturer: Revez
  • Model: MSG516
  • Connector type: F-type Connectors (Gold Plated)

Note: Always used with Quattro LNB

Used extensively in

  • Hotels
  • Apartment blocks
  • Retirement villages

HOW the 5 x 16 Satellite & Terrestrial MultiSwitch Works

Quattro Vs Traditional LNB

  • Traditional LNB which simply feeds a Satellite receiver from each output
  • Quattro LNB splits the satellite signal into
    • Vertical (High & Low)
    • Horizontal (High & Low)
  • This allows the signal to to feed to an infinite amount of Satellite points

How a Quattro LNB and Multiswitch work

  • Used in conjunction with a Quattro LNB (normally mounted on an 80cm dish) whose 4 outputs are broken into
    • Vertical (High & Low)
    • Horizontal (High & Low)
  • Multiswitch inputs:
    • Satellite: 4 from satellite quattro LNB satellite
    • Terresttial: a single feed covering full VHF / UHF Spectrum
  • Multiswitch range:
    • Outputs: 8, 12, 16 or 32 outputs to Satellite receivers
  • At the TV Point:
    • Use a Faceplate to split the signal into Satellite and terrestrial
