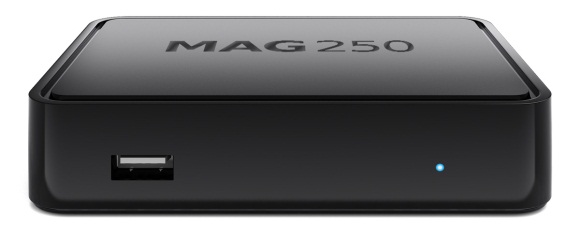

MAG250 IPTV Set Top Box
MAG250 Micro set-top box is our most popular solution combining the widest technical capabilities demanded by broadband operators with unrivalled user-friendliness for end consumers interested in interactive digital TV.
Supporting video streaming, video on demand, and HD quality for digital channels (Full HD 1080р), MAG250 meet all up-to-date requirements for multimedia solutions.
MAG250 is equipped with 2 USB ports for easy connection of a Wi-Fi adaptor and wireless Internet access, media content playback from video and photo cameras and other media devices, recording to external storage media. HDMI and S/PDIF outputs provide the best audio and video quality.
Copyright and Access Management
Audio output S / PDIF, HDMI 1.3 (rear), USB 2.0 (1 front and 1 rear), Composite + Stereo A / V output (Micro jack connector on the rear), Ethernet, 100Mb / s (rear) connector for power supply 5V (rear), LED-display (front panel)
Sources of media content
External Hard Drive (USB), USB devices (USB flash drive, USB-card reader, etc.), PC and NAS in local network (SMB, NFS, UPnP, HTTP), other Internet and local television networks (HTTP, multicast UDP / RTP), video streaming services are fully supported
Verimatrix, Secure Media
MPEG1 / 2 MP @ HL, H.264 HP @ level 4.1, MPEG4 part 2 (ASP), WMV-9 (optional), VC1 video, XviD; HD video supporting (up to 40 Mbit / s and above)
MKV,MPEG-TS,MPEG-PS, M2TS, VOB, AVI, MOV, MP4, ASF, QT, WMV (optional)
MPEG-1 layer I / II, MPEG-2 layer II,MPEG-2 AAC (optional), MPEG-4 AAC LC 2-ch/5.1ch (optional), MPEG-4 AAC + SBR 2-h/5.1ch (optional), Dolby Digital
MPA, M4A, WMA (optional), Ogg, WAV,AC3,AAC
JPEG, PNG, BMP, GIF,RAW
DVB, SRT (support coming soon), built-in text
FAT16/32, NTFS (read), NFS, Ext2, Ext3
Optional USB WIFI dongle (not included)
Stream media protocols
RTSP, RTP, UDP, IGMP,HTTP
fully compatible with the MAG100, MAG250, MAG250 (P) (API JS, API C)
built-in media portal functionality with IPTV
HTTP 1.1, HTML 4.01 XHTML 1.0/1.1
DOM 1, 2, 3, CSS 1, 2, 3
XML 1.0, XSLT 1.0, XPath 1.0
C layer SDK
Stalker, OFT-Media, Netup, SmartLabs, Netris, ZTE
espial-Kasenna, Bitband, ARRIS (C-COR), Live555
Dimensions (w/d/h), mm.
156 (with packaging: 620)
MAG250 Micro set-top box, user manual, Micro jack cable at the RCA (A / V); power adapter 5V 1.5A, remote control, 2 AA batteries, packaging.
