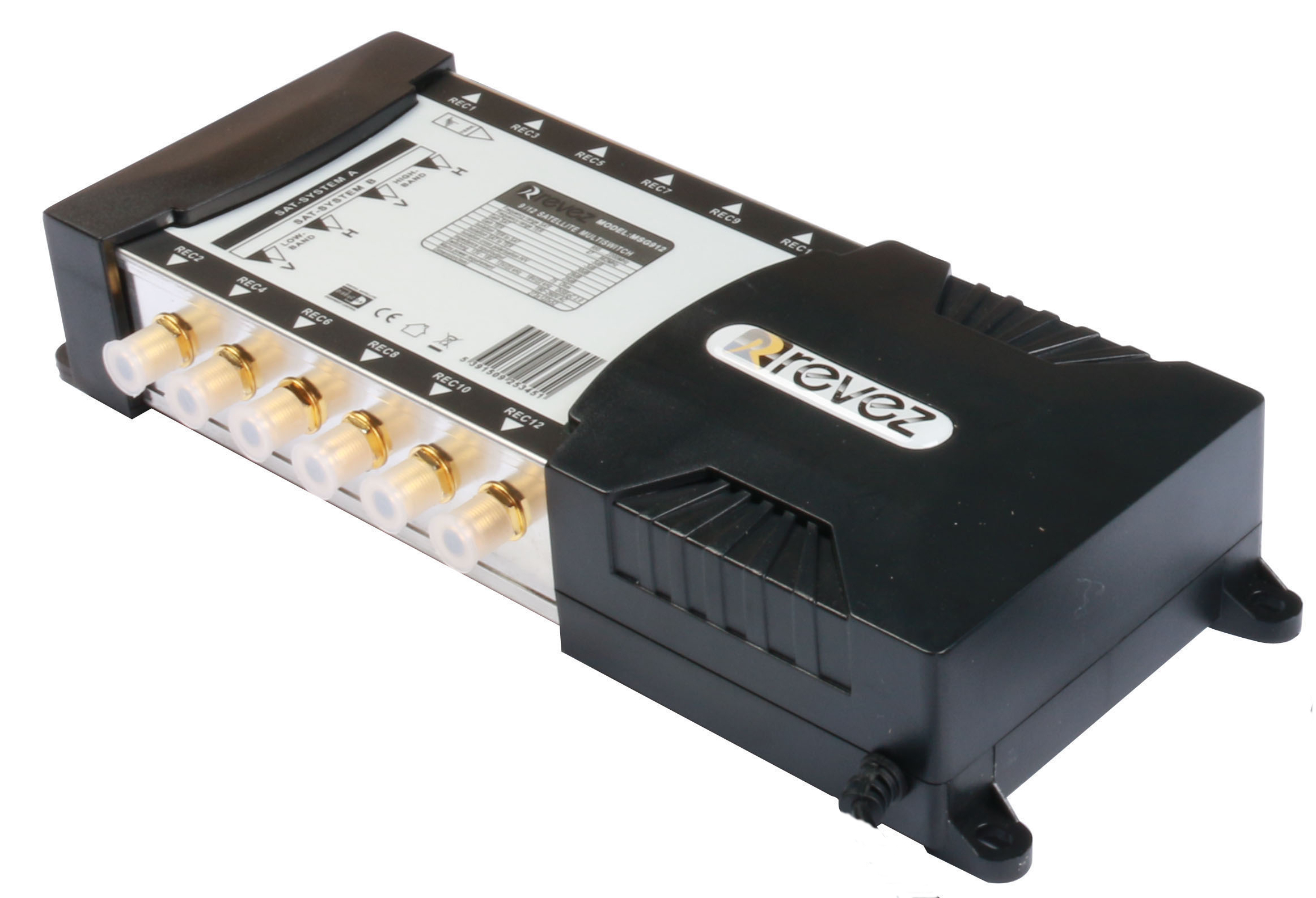

9x12 Satellite & Terrestrial Multiswitch (REVEZ)

List price: 175.00
84.00
(103.32 inc VAT) You save: €91.00 (52%)
RZMS912
In stock
+
Add to wish list

DESCRIPTION of 9 x 12 Satellite & Terrestrial Multiswitch

  • REVEZ 9 x 12 Multiswitch
  • Inputs: 9
    • Horizontal High (22 KHz)
    • Horizontal low
    • Vertical High  (22 KHz)
    • Vertical Low
    • Terrestrial
  • Outputs: 12 satellite & terrestrial feeds

Frequencies:

  • Frequency Range: 47 ~ 2200 MHz
    Attenuation: 0 dB (Sat), 16 dB (Terr)
    Isolation: 30 dB (Sat)
    Output Level (Terr): max. 95 dBµV
    Output Level (Sat): max. 95 dBµV
    Power Supply: 230V 50Hz
    DC Voltage: 13V / 18V
    DC Power (LNB): 1A (max)
    DC Power (12V): Ʃ 300mA (max)

Note: Always used with Quattro LNB

Used extensively in

  • Hotels
  • Apartment blocks
  • Retirement villages

HOW the 9 x 12 Satellite & Terrestrial MultiSwitch Works

Quattro Vs Traditional LNB

  • Traditional LNB which simply feeds a Satellite receiver from each output
  • Quattro LNB splits the satellite signal into
    • Vertical (High & Low)
    • Horizontal (High & Low)
  • This allows the signal to to feed to an infinite amount of Satellite points

How a Quattro LNB and Multiswitch work

  • Used in conjunction with a Quattro LNB (normally mounted on an 80cm dish) whose 4 outputs are broken into
    • Vertical (High & Low)
    • Horizontal (High & Low)
  • Multiswitch inputs:
    • Satellite: 8 from 2x satellite quattro LNBs
    • Terresttial: a single feed covering full VHF / UHF Spectrum
  • Multiswitch range:
    • Outputs: 8, 16 or 32 outputs to Satellite receivers
  • At the TV Point:
    • Use a Faceplate to split the signal into Satellite and terrestrial
